Voltera V-One PCB Printer

The Voltera V-One brings quick turn PCBs to your desktop.

Top Key Features

  • 25 disposable 230 micron nozzles
  • 1 burnishing pad
  • 1 solder wire spool
  • 1 drill bit set
  • 200 0.4mm rivets
  • 200 1.0mm rivets

Overview

The Voltera V-One brings quick turn PCBs to your desktop. Import your Gerber file into the Voltera software, press print, and the V-One will bring your board to life. Use the solder paste dispensing and reflow features to mount components onto your printed board, or mount components on a prefabricated board with ease.

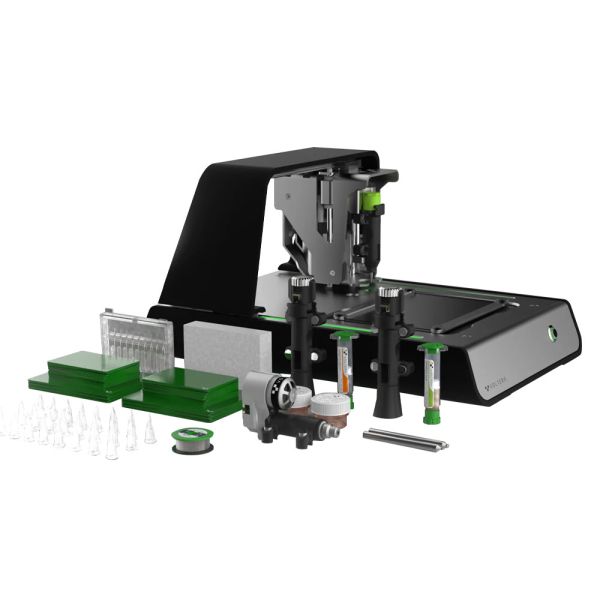

The V-One includes all the accessories and consumables you need to get started.

Key Features

  • 1 Conductor 2 cartridge
  • 1 Solder Paste cartridge
  • 10 2”x3” FR4 substrates
  • 6 3”x4” FR4 substrates
  • 10 2”x3” FR1 substrates 6 3”x4” FR1 substrates
  • 25 disposable 230 micron nozzles
  • 1 burnishing pad
  • 1 solder wire spool
  • 1 drill bit set
  • 200 0.4mm rivets
  • 200 1.0mm rivets
  • 2 rivet tools
  • 1 sacrificial layer
  • 1 Hello World starter kit
  • 1 Punk Console starter kit

Dimensions

Dimensions:390 X 257 X 207 mm
Weight (Net):7 kg

Technical Specifications

Connectivity:Wired USB 2.0
Electrical:12V, 25W
Features:

SOLDERING

Min passive size: 1005

Min pin-to-pin pitch: 0.5 mm

Solder paste alloy: Sn42/Bi57.6/Ag0.4

Solder wire alloy: SnBiAg1

Soldering iron temp: 180 - 200°C



SOLDERING COMPATIBILITY

Standard Ink: Sn42/Bi57.6/Ag0.4 Solder

Flexible ink: Sn42/Bi57.6/Ag0.4 Solder

Copper PCBs: Sn42/Bi57.6/Ag0.4 Solder, Sn63/Pb37 Solder

HASL PCBs: Sn63/Pb37 Solder

File Type:Gerber
Heated Bed:Heated bed temp 240°C (max)
Operating System:Windows 7, 8, 10 (64bit), OSX 10.11 +
Printing Mode/s:

Min Trace width: 0.2 mm

Min Passive size: 1005

Min Pin-to-Pin: pitch 0.65 mm

Resistivity: 12mΩ/Sq @ 70um Height

Supplied substrate mats: FR4

Max board thickness: 3 mm

Shank Diameter:3.175 mm
Spindle Speed:13,000 RPM
