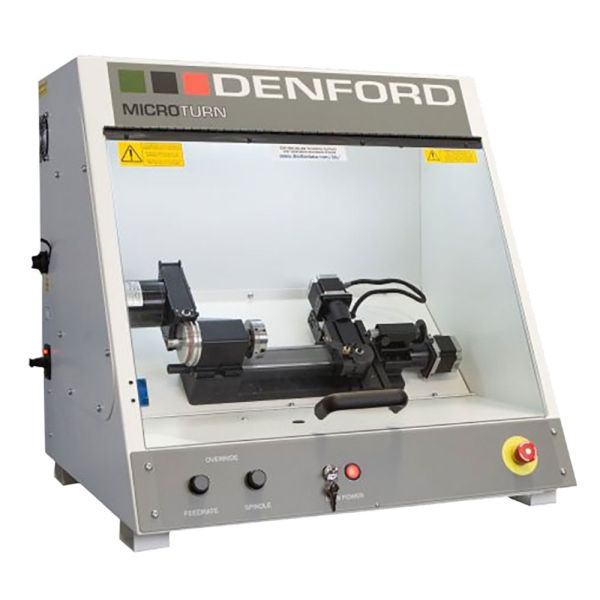

MicroTurn CNC Lathe
A compact 2 axis CNC lathe, both with totally enclosed interlocking guard – the ideal introduction to CNC manufacturing.
Top Key Features
- 2 Axis CNC Lathe
- Variable spindle speeds
- Variable feedrates
- Fully enclosed interlocking guards
Overview
A compact 2 axis CNC lathe, both with totally enclosed interlocking guard – the ideal introduction to CNC manufacturing. Variable spindle speeds and feedrates make the Microturn suitable for proving student designs, producing small components in materials such as wax, plastic, acrylic and free cutting alloys.
Key Features
- 2 Axis CNC Lathe
- Variable spindle speeds
- Variable feedrates
- Fully enclosed interlocking guards
Dimensions
Length: | 685 mm |
---|---|
Width: | 654 mm |
Height: | 688 mm |
Weight (Net): | 57 kg |
Technical Specifications
Electrical: | Single Phase, 230V-8A / 110V-10A Frequency: 50/60 Hz |
---|---|
Axes Motor: | Stepper |
Feed Rate: | 600 mm / min |
Heated Bed: | Swing Over Bed 90 mm |
Spindle Motor: | 75W - 0.1HP |
Spindle Speed: | 2500rpm |
XYZ Step Size: | Travel X Axis 50 mm, Travel Z Axis 126 mm |
