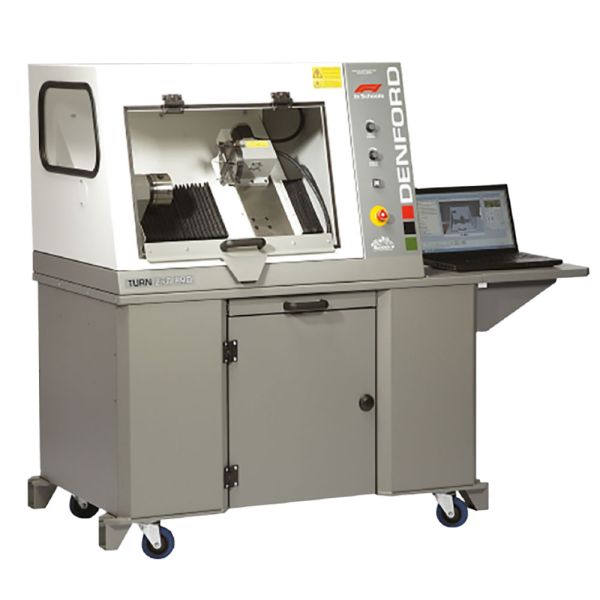

CNC Lathe Turn 270 Pro
A compact 2 axis CNC Lathe with totally enclosed high-visibility interlocking guard, suitable for all levels of education and training.Â
Top Key Features
- Suitable for all levels of education and training
- Ideal for cutting range of resistant material
- Programmable spindle speeds & feedrate
- 2 Axis CNC Lathe
- Fully enclosed high-visibility interlocking guard
Overview
A compact 2 axis CNC Lathe with totally enclosed high-visibility interlocking guard, suitable for all levels of education and training.Â
Programmable spindle speeds and feedrates make the Turn 270 Pro ideal for cutting a range of resistant materials such as wax, plastic, acrylic, free cutting alloys, aluminum and steel.
Key Features
- Suitable for all levels of education and training
- Ideal for cutting range of resistant material
- Programmable spindle speeds & feedrate
- 2 Axis CNC Lathe
- Fully enclosed high-visibility interlocking guard
Dimensions
Length: | 1000 mm |
---|---|
Width: | 768 mm |
Height: | 675 mm |
Weight (Net): | 140 kg (with optional base: 270 kg) |
Technical Specifications
Electrical: | Single Phase, 230V-8A / 110V-10A Frequency: 50/60 Hz |
---|---|
Axes Motor: | Stepper |
Distance: | Between Centres: 270 mm |
Feed Rate: | 3000 mm / min |
Heated Bed: | Swing Over 190 mm |
Spindle Bore: | 26 mm |
Spindle Motor: | 1.5kW - 2.0HP |
Spindle Speed: | 4000rpm |
Swing Over: | Swing Over Cross Slide: 100 mm |
Travel Y Axis: | 150 mm |
Travel Z Axis: | 225 mm |
