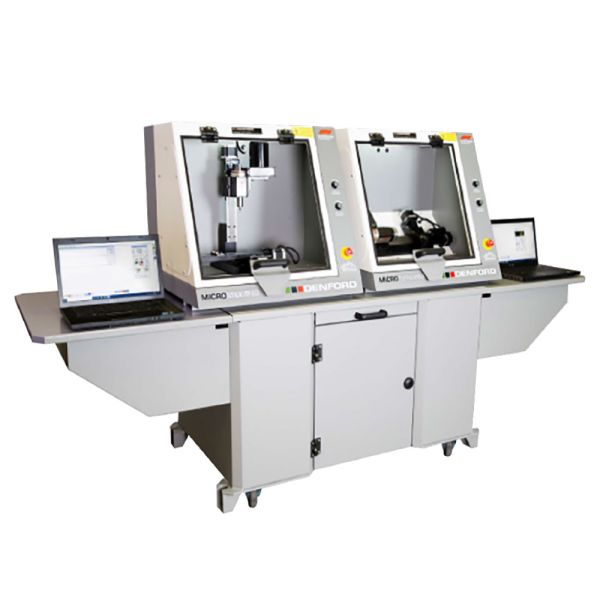

Denford Duo CNC Milling & Turning

A combined entry-level CNC Milling and Turning Package incorporating the Micromill CNC Milling machine and CNC Microturn Lathe, complete with tooling and software – the ideal introduction to CNC manufacturing.

Top Key Features

Compact 3 Axis CNC milling machine
2 Axis CNC Lathe
Variable spindle speeds
Variable feedrates
Fully enclosed interlocking guards

Enquire

Details

Overview

A compact 3 axis CNC milling machine and 2 axis CNC lathe, both with totally enclosed interlocking guards – the ideal introduction to CNC manufacturing. Variable spindle speeds and feedrates make the Micromill and Microturn suitable for proving student designs, producing small components in materials such as wax, plastic, acrylic and free cutting alloys.

Key Features

Compact 3 Axis CNC milling machine
2 Axis CNC Lathe
Variable spindle speeds
Variable feedrates
Fully enclosed interlocking guards

Specifications

Dimensions

Length:	685 mm
Width:	654 mm
Height:	688 mm
Dimensions:	With bench and extensions: 2500 x 750 x 790 (W x D x H)
Weight (Net):	Micromill Pro: 76 kg, Microturn Pro 80 kg

Technical Specifications

Electrical:	Single Phase: 230V-8A / 110V-10A Frequency: 50/60 Hz
3D Profiling:	Micromill Pro: 600 mm / min
Axes Motor:	Stepper
Distance:	Micromill Pro: 182 mm
Feed Rate:	600 mm / min
Spindle Motor:	75W - 0.1HP
Spindle Speed:	2500rpm
Swing Over:	Microturn Pro: 90 mm
XYZ Step Size:	Micromill Pro: 228 / 130 / 160 mm, Microturn Pro: 50 / na / 126 mm
