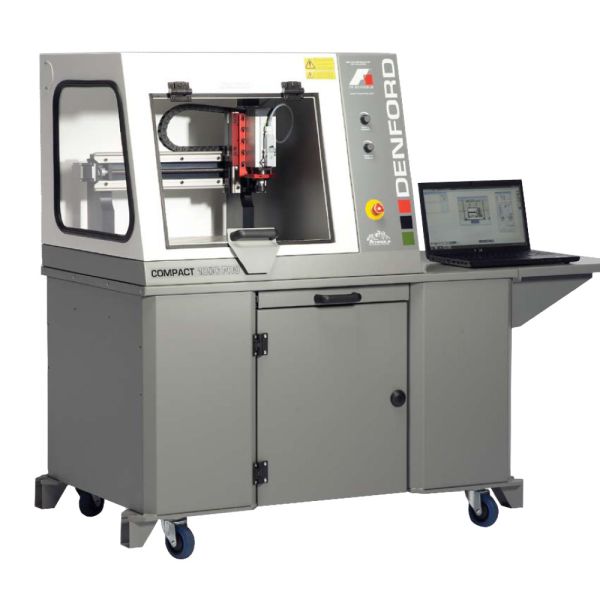

Floor Standing CNC Router - 1000 Pro
Categories: Routers , Workshop Equipment , Woodworking , Metalworking , CNC & Laser Machines , D&T Workshop Equipment , Metalworking , Woodworking , CNC & Laser Machines
A compact 3 axis CNC Router with totally enclosed interlocking guard, suitable for all levels of education and training.
Top Key Features
- Variable spindle able to cut non ferrous materials
- Precision anti-backlash nuts/leadscrews
- High Quality and reliable
- Accurate and almost maintenance free
- Perfect for use in a dusty environment
Overview
A compact 3 axis CNC Router with totally enclosed interlocking guard, suitable for all levels of education and training.
The Compact 1000 Pro is ideal for cutting a range of resistant materials such as hard and soft wood, plastic, modelling foam, acrylic and prototyping materials, as well as non-ferrous metals.
Quality, precision, maintenace free routing.
Key Features
- Variable spindle able to cut non ferrous materials
- Precision anti-backlash nuts/leadscrews
- High Quality and reliable
- Accurate and almost maintenance free
- Perfect for use in a dusty environment
- No lubrication required
- Lower particulate generation
- Longer life with non-catastrophic failure
- Quieter operation (no re-circulating ball noise)
- High helix
- Fast leads
- Zero-backlash with very light pre-load
- Low drag
Dimensions
| Length: | 875 |
|---|---|
| Width: | 765 |
| Height: | 675 |
| Weight (Net): | 116 kg (230 kg with optional base) |
Technical Specifications
| Electrical: | Single Phase *Alt. Available on request 230V / 8 Amps / 50 Hz |
|---|---|
| Features: | Non - Ferrous Metal Cutting Spindle Speed Control Spindle Speed Override |
| 3D Profiling: | 4500 mm/min |
| Axes Motor: | Stepper |
| Beam Clearance: | 140 mm |
| Electrical Socket: | 13A Socket |
| Feed Rate: | 5000 mm/min |
| Spindle Motor: | 1.0 kw |
| Spindle Speed: | 24000 rpm (max) |
| Travel Y Axis: | 240 mm |
| Travel Z Axis: | 110 mm |
