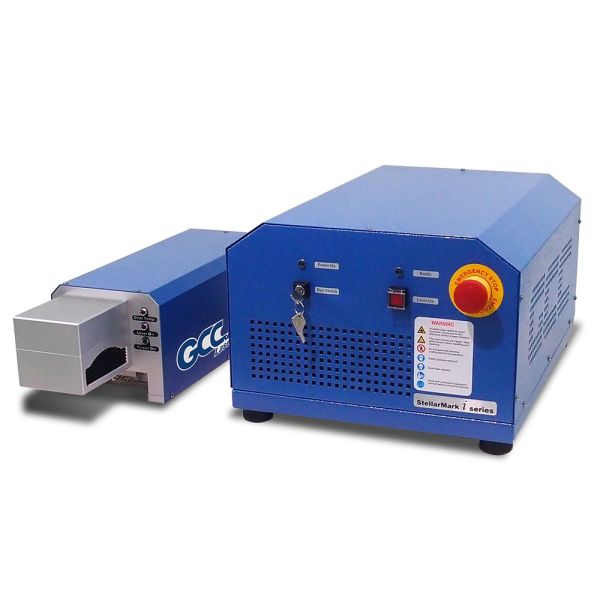

GCC StellarMark I-series Laser Marker

StellarMark I-Series Laser Marker is a comprehensive solution that satisfies customers with diverse requirements.

Top Key Features

Superior Text-editing Function
Pyramid Focus Tool
Mark On Fly (Optional)
G-Mark Library (Optional)
Auto Power Compensation...

Enquire

Details

Overview

StellarMark I-Series Laser Marker is a comprehensive solution that satisfies customers with diverse requirements.

StellarMark I-Series Laser Marker is easy to install, easy to operate, designed with simple maintenance and safety considerations while providing superior output quality.

Key Features

Superior Text-editing Function
Pyramid Focus Tool
Mark On Fly (Optional)
G-Mark Library (Optional)
Auto Power Compensation
Preview Mode
Cost-Saving Solution
Emergency Stop
Key-Switch
CE Certification
RoHS Compliance
Error Indications
Secure Password Protection

Specifications

Dimensions

StellarMark IFIIS 20/30/50/60JFL Scan Lens
Model No	70	110	180	300
Dimensions Laser Head	L 497 x W 168 x H 152 mm
Dimensions Control Unit	L 470 x W 360 x H 241 mm
Laser Marker Weight	9 kg
Control Unit Weight	25 kg
Working Area	70x70 mm	110x110 mm	180x180 mm	300x300 mm
Spot Size	27 μm	44 μm	71 μm	114 μm
Working Distance	142 ± 1 mm	220 ± 2 mm	350 ± 2 mm	553 ± 3 mm
Repeatability**	0.03 mm	0.03 mm	0.04 mm	0.06 mm

Technical Specifications

StellarMark C-Series		IFIIS 20JFL	IFIIS 30JFL	IFIIS 50JFL	IFIIS 60JFL
Laser Source	Wavelength	1064 nm
	Type	Yb-doped, MOPA
	Output Power	20W	30W	50W	60W
	Beam Mode	TEM00
	Beam Quality (M²)	<1.5	<1.5	<1.5	<1.8
	Frequency	1-600 kHz	1-600 kHz	1-600 kHz	1-400 kHz
	Waveform	Single
	Cooling	Air-cooled
Max. Linear Marking Speed		3,000 mm/s
Max. Marking Speed		10,000 mm/s
Electrical Requirements	Power Supply	100~240V, 50/60 Hz Max 15 Amp
Electrical Requirements	Power Consumption	Max. 1650W
Operating System		Microsoft Windows 2000 / XP / Vista(32/64 Bit) / 7(32/64 Bit) / 8(32/64 Bit) (Desktop or Laptop PCs)
Environment	Temperature	15℃ ~ 35℃
Environment	Humidity	10 ~ 80% Non condensing
Safety		Class 4 (EN60825-1 Class 1 available with safety shield and LFC) 2006/42/EC Machinery Directive) 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive

All above spot size will be material dependent.
*According to theoretical calculation.
**The test is 8-hour continuous firing with power level at 30% using a 60JFL

Equipment

Optional Items

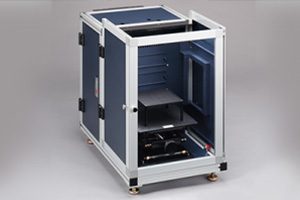

Safety door

Stellar Mark I-Series can be fastened to a rigid mounting structure to ensure the marking system and adjustable Z-axis table are parallel to each other for quality jobs.

EZ Stand (i-series)

EZ Stand is a simple laser marker holder that allows users to quickly set up a marking environment suitable for use with 12W and 30W StellarMark models. An adjustment dial on the EZ Stand allows users to quickly and easily adjust the position of the laser marker to maintain the most suitable focal distance for the varying focal distance requirements when marking objects of different sizes.

Adjustable z-axis table

Adjust the marking surface as required to ensure that it is parallel to the Stellar Mark focusing lens mount.

Rotary Attachment - Marker

The rotary attachment unit allows for precise 360° marking on round, cylindrical, or torus-shaped objects. The unit flexibly accommodates objects with external diameters up to 81 mm, internal diameters up to 70 mm, and weight up to 5kg. External marking on torus-shaped objects, such as a ring, is simple and precise with the included ring stick.

Workstation

*Not available on StellarMark C-100 model

StellarMark I-series Laser Marker Features

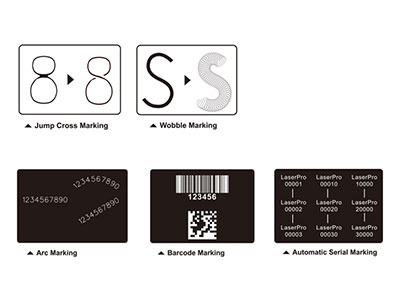

Superior Text-editing Function

Automatic Serial Marking
Barcode Marking
Wobble Marking
Jump Cross Marking
Font Variation
Logo and Image Marking
Arc Marking

Pyramid Focus Tool

Pyramid Focus Tool is standard feature for StellarMark IFII series. It helps you to quickly and precisely find the correct focus distance with ease.

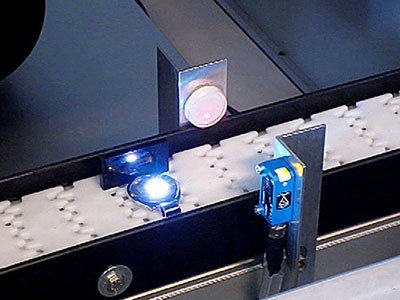

Mark On Fly (Optional)

An optional software function that features marking of moving objects on a conveyor.

G-Mark Library (Optional)

This programmable software can be used to customize functions by using VB scripts. All the commands are received in real time from a master PC and position to offsets, rotating angles and sequential marking can be easily set up

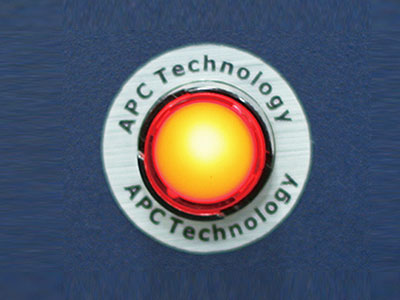

Auto Power Compensation

Close loop design to ensure a consistent output power over a long period of time.

Preview Mode

Variable-speed, red dot pointer "preview" mode performs accurate and easy marking positioning on the marked part.

Cost-Saving Solution

StellarMark I-Series is equipped with the state of the art technology of end pumped and fiber design, offering less downtime and lower running costs than other conventional laser.

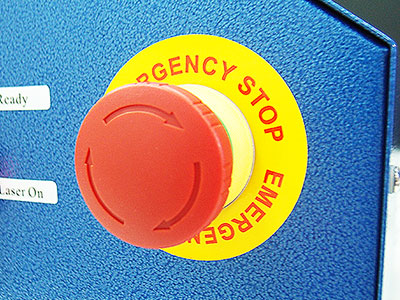

Emergency Stop

The machine can be entirely shut down by pressing the Emergency Stop button from controller when any emergency occurs.

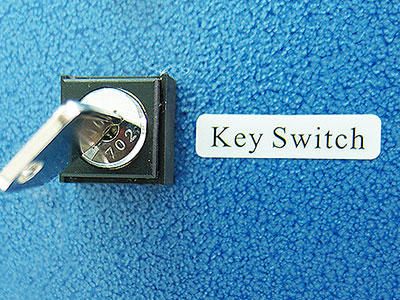

Key-Switch

This safety feature enables operators to keep the laser locked to avoid unauthorized use.

CE Certification

StellarMark complies with the essential safety requirement which set out in the European Directives.

RoHS Compliance

All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.
