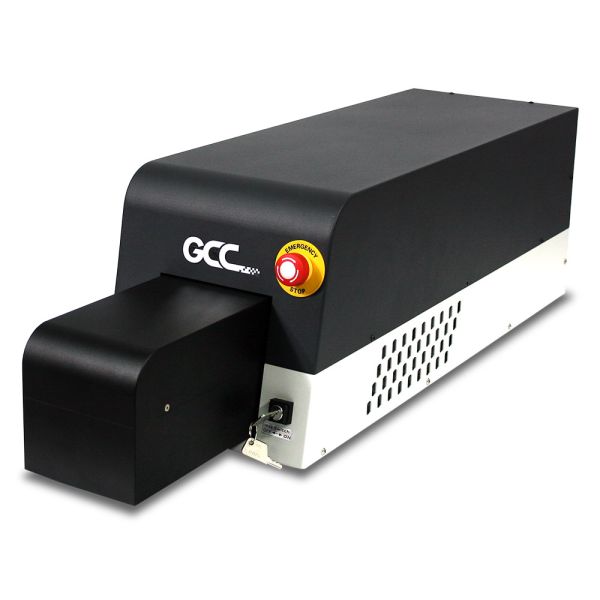

GCC StellarMark 3DS Laser Marker

StellarMark 3DS Laser Marker series is integrated with a 3D scan head, which allows users to process round/cylinder objects with ease. The scan head provided with a 300x300mm working area and the focus range is 100mm.

Top Key Features

3D Scan Head
All-in-one Design
200 x 200 mm & 300 x 300 mm Working Area
Emergency Stop

Enquire

Details

Overview

StellarMark 3DS Laser Marker series is integrated with a 3D scan head, which allows users to process round/ cylinder objects with ease. The scan head provided with a 300x300mm working area and the focus range is 100mm.

The system is an all-in-one design (only for 20W/30W), allowing easier and fast integration into the production line to meet every customers’ needs.

Key Features

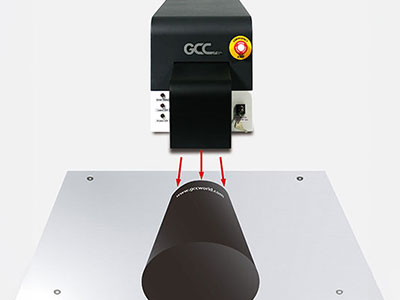

3D Scan Head

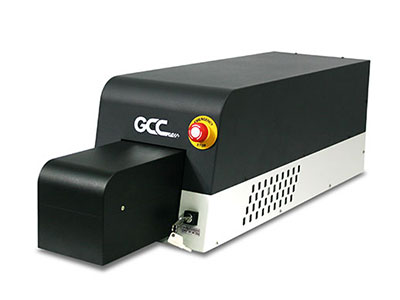

All-in-one Design

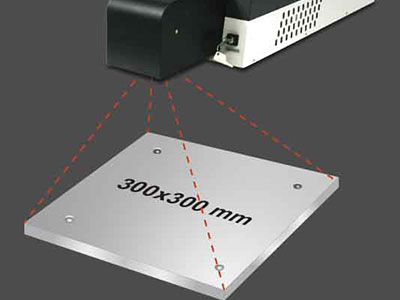

200 x 200 mm & 300 x 300 mm Working Area

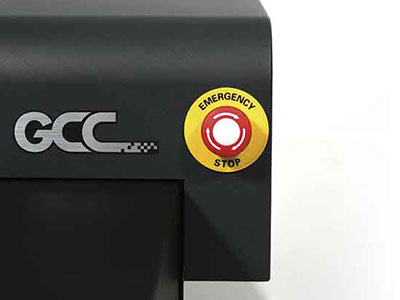

Emergency Stop

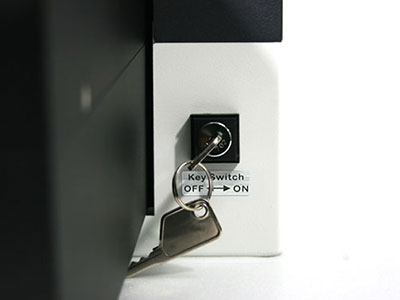

Key Switch

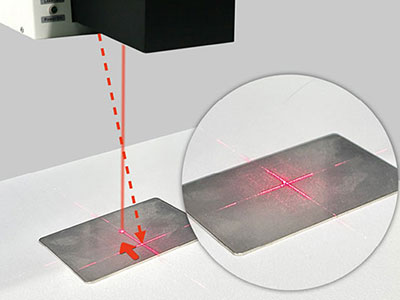

2-Point Focus Tool

Specifications

Dimensions

Model No	3DS200-30JML	3DS200-60JML	3DS300-30JML	3DS300-60JML
Dimensions Laser Marker
Dimensions Laser Housing Unit
Working Area	200 x 200 mm		300 x 300 mm
Spot Size	0.041 mm		0.067 mm
Working Distance	245 ± 2 mm		285 ± 2 mm
Repeatability**	0.04 mm		0.04 mm
Laser Marker Weight	16.0 Kg
Laser Housing Unit Weight	12.7 Kg

Technical Specifications

StellarMark 3DS JML Model	3DS200-30JML	3DS200-60JML	3DS300-30JML	3DS300-60JML
Laser Source Wavelength	1,064 nm
Laser Source Type	Fiber Laser
Laser Source Output Power	30W	60W	30W	60W
Laser Source Cooling	Air-cooled, no water chiller required
Max. Marking Speed	6,000 mm/s
Focal Distance	285 mm
Focus range in z direction	100 mm
Electrical Requirements Power Supply	C Auto Switching 115V / 230V, 50-60 Hz/ single phase
Electrical Requirements Power Consumption	740W
Operating system	Microsoft Windows 10/11 (32/64 Bit) (Desktop or Laptop PCs)
Environment Temperature	15℃ ~ 35℃
Environment Humidity	10 ~ 80% Non condensing
Safety	Class 4 (EN60825-1 Class 1 available with safety shield LFC D) 2006/42/EC Machinery Directive) 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive

Equipment

Optional Items

Rotary Attachment - Marker

The rotary attachment unit allows for precise 360° marking on round, cylindrical, or torus-shaped objects. The unit flexibly accommodates objects with external diameters up to 81 mm, internal diameters up to 70 mm, and weight up to 5kg. External marking on torus-shaped objects, such as a ring, is simple and precise with the included ring stick.

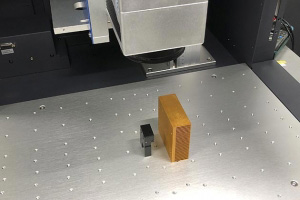

MultiFOCUS

MultiFOCUS function allows user to set multiple focus distances setting at once according to the object height. Z-axis will automatically adjust correctly so users do not need to set focal distance multiple times.

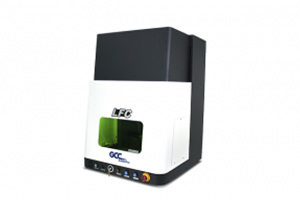

LFC D Desktop Workstation

Compact and stylish desktop workstation. Equipped with many functions to keep operators safe.

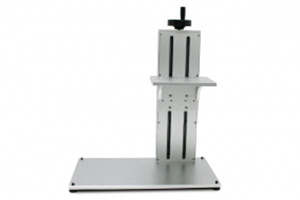

EZ Stand

EZ Stand is a simple laser marker holder that allows users to quickly set up a marking environment suitable for use with StellarMark C, I, and 3DS series.
