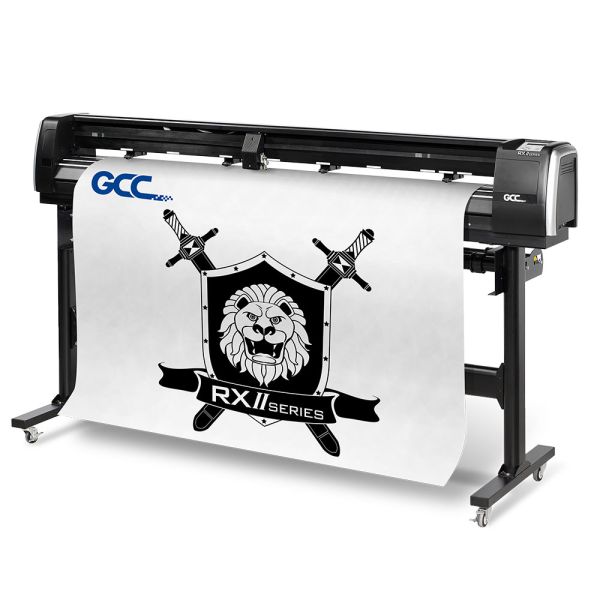

RX II / RX II (Creasing) Vinyl Cutter

The brand new RX II series of cutting plotters is available in four sizes, 61cm, 101cm, 132cm, and 183cm, which are among the best models for higher blade pressure, faster-cutting throughput, and precision of long tracking compared to same class models.

Top Key Features

Creasing Ability (only for creasing model)
Extension Holder for Die-Cut Applications
Section Cutting
Auto Rotation
Segmental Positioning
Enhanced AAS II Contour Cutting System
Multiple Pressure Pinch Rollers for Different Media
Triple Port Connectivity

Enquire

Details

Overview

Designed With a stylish appearance and new functional features, the RX II series is the top notch cutter in the market for professional sign makers.

Key Features

Creasing Ability (only for creasing model)
Extension Holder for Die-Cut Applications
Section Cutting
Auto Rotation
Segmental Positioning
Enhanced AAS II Contour Cutting System
Multiple Pressure Pinch Rollers for Different Media
Triple Port Connectivity
Auto Cut Off
Touch Key Panel & Backlight LCM
600 Grams of Cutting Force
Innovative Tangential Mode
Media Support System
Advanced One Click Driver
Multiple Parameters Setting by 16 Different Colors
Selective Pinch Roller Positioning

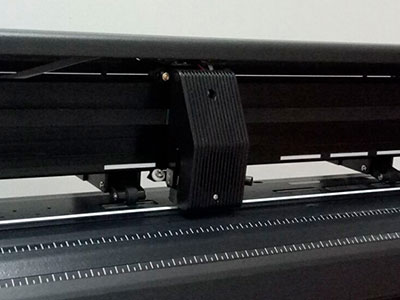

Guaranteed 10m Tracking Ability

Specifications

Dimensions

	RX II-61 (Creasing)	RX II-61	RX II-101S	RX II-132S	RX II-183S
Dimension (HxWxD) mm	437 x 1098 x 479		1147 x 1614 x 651	1147 x 1923 x 651	1147 x 2433 x 756
Dimension (HxWxD) in	17.2 x 43.2 x 18.8		45.2 x 63.5 x 23.8	45.2 x 75.7 x 23.8	45.2 x 95.8 x 29.8
Net Weight	25.5kg (56.22 lb)	25kg (55.12 lb)	61.8kg (136.2 lb)	71.5kg (157.6 lb)	82kg (180.8 lb)

Technical Specifications

Model Number	RX II-61 (Creasing)	RX II-61	RX II-101S	RX II-132S	RX II-183S
Operational Method	Roller-Type
Max. Cutting Width	536mm(21 in.)	610mm(24 in.)	1010mm(40 in.)	1320mm(52 in.)	1830mm(72 in.)
Max. Cutting Length	50m (164ft)
Max. Media Loading Width	642mm(25.28 in.)	810mm(31.88 in.)	1326mm(52.2 in.)	1635mm(64.37 in.)	2145mm(84.44 in.)
Min. Media Loading Width	50mm (1.97 in.)
Number of Pinch Rollers	3			4	5
Acceptable Material Thickness	0.8mm (0.03 in.)
Drive Motor	DC Servo Control
Max. Cutting Force	600 g
Max. Cutting Speed	1530 mm/sec (60 in./s) (at 45° direction)
Acceleration	4.2 G (gravity)
Offset	0~1.0 mm (with an increase of 0.025mm)
Memory Buffer	32 MB /16 MB (when using AAS)
Interfaces	USB 2.0 (Full Speed), Serial (RS-232) and Ethernet
Type of Command	HP-GL, HP-GL/2
Mechanical Resolution	0.006 mm
Software Resolution	0.025 mm
Distance Accuracy	±0.254 mm or ±0.1% of move, whichever is greater
Repeatability	±0.1mm
Automatic-Aligning System	Completely Automatic Contour Cutting System for print to cut solution
Auto Rotation	Yes
Section Cutting	Yes
Curve & Arc Smoothing	Yes
Configurable Origin	Yes
Test Cut Capability	Yes
Tangential Mode	Yes
Over Cut	Yes
Repeat	Yes
Copy	Yes
Control Panel	LCD (20 digits x 2 lines), 15 Keys, 1 Power LED, 1 Green LED
Diameter of Blade	2.5 mm
Power Supply	100 ~ 240VAC 50/60Hz (auto switching)
Power Consumption	Max. 250 W
Auto Cut Off	Standard
Stand	Optional		Standard
Media Basket	Optional
Operation Environment Temperature	15°C~30°C / 60°F~86°F
Operation Environment Humitidy	25% ~ 75%

Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Purchasing serial number for “Sure Cuts A Lot” software to work with Mac OS.)
The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly.
GCC certified material in tracking is Avery MPI 3000.
The above listed specification values are effective only when operated with media certified by GCC.

Equipment

Optional Items

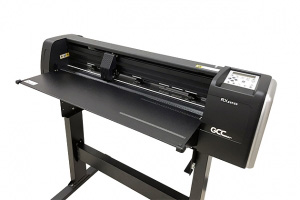

Add-on Flat Table (only for 61 model)

For cutting thick sheet material, such as magnet.

18" x 24" Low Adhesive Film (3 pcs/pk)

Put materials on the Low Adhesive Film to cut, and it’s recommended to work with Add-on Flat Table.

Metallic Blade Holder Φ2.5 mm

Adjusting the blade length to fit your needs.

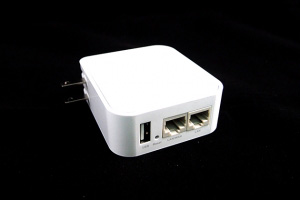

Wi-Fi Router

Wi-Fi router allows you to transmit data through a wireless network. It can work with GCC laser engravers and RX II/ Jaguar V cutting plotters through the Ethernet port (not applicable for Japanese users.) Whether you are sending files to multiple GCC machines using one PC or sharing one unit of GCC machines with multiple PCs, this wireless technology can be an excellent helper.

Stand

To support cutting plotter machine and roll media.

Media Basket

To keep your vinyl off the floor and away from dust or contaminants. Your production will be a clean and efficient operation.

Safe Blade

Users can cut off the finished job by the safe blade.

Cutting Blades

Users can replace the cutting blade by different materials to meet your need.

Cutting Pad

It prevents the blades from becoming blunt quickly.

GCC RX II / RX II (Creasing) Vinyl Cutter Features

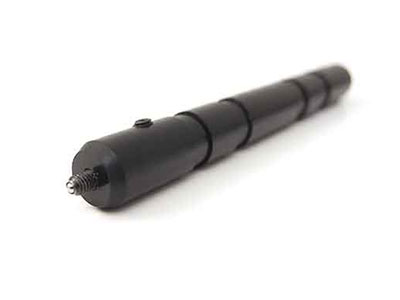

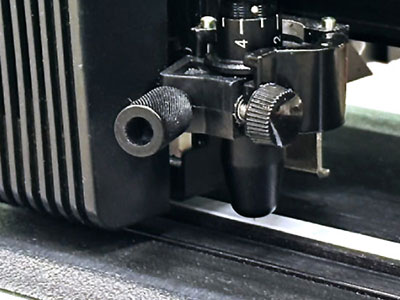

Creasing Ability (only for creasing model)

Equipped with the dual tool holders with creasing tool and blade, RX II creasing model offers cardstock creasing and cutting to make small volume of paper box. PS. It’s suggested that the cardstock weight range is 200 to 350 gsm, and the weight will vary with the type and thickness of paper.

Extension Holder for Die-Cut Applications

RXII’s Extension Holder optimizes blade positioning during die-cutting to minimize wear on blades and cutting strips, delivering long-lasting accuracy and cost efficiency.

Section Cutting

Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. GCC RX II series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.

Auto Rotation

New registration marks defined to detect material feeding direction. RX II detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.

Segmental Positioning

RX II series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.

Enhanced AAS II Contour Cutting System

The RX II series features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images.
Functions include:

	1st-mark auto-detection		4-point positioning
	Segmental positioning		Multiple copies

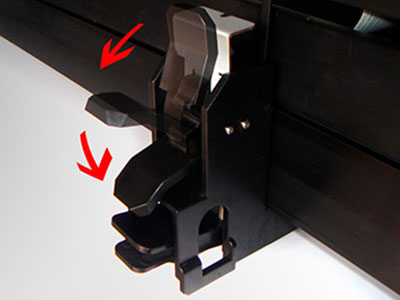

Multiple Pressure Pinch Rollers for Different Media

The Multi-Pressure Pinch Rollers give users three pressure settings to better cater to the different types of media that they are working with. The following shows suitable settings for some materials.

Materials	Left side	Middle	Right side
Sandblast mask, Reflective film	Heavy	Medium	Heavy
Vinyl	Medium	Medium	Medium
Window tinting film	Medium	Light	Medium

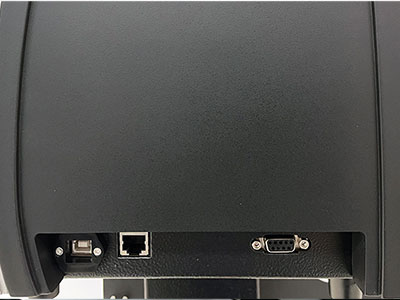

Triple Port Connectivity

RX II series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and RX II. Ethernet connection enables multiple RX II to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides sign makers a great flexibility for data transmission.

Auto Cut Off

This features allows users to set the cutter to cut off the media after the completion of each job, making it easy to set up an unattended workflow for mass production. Or user can simply push the “Cut off” button after the completion of a job to have the media cut off automatically.

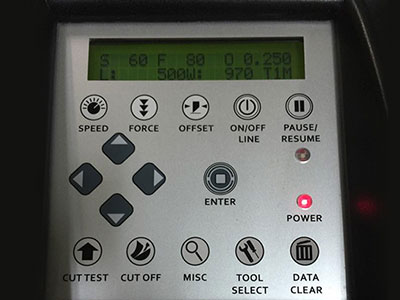

Touch Key Panel & Backlight LCM

The brand new touch key panel is easy to use and durable. The intuitive design allows new users to operate the machine easily. The easy-to-use and multi-language touch key panel can remarkably simplify complex tasks. Backlight LCM makes users can recognize the text on the panel more easily.

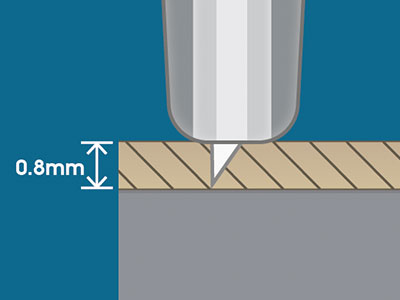

600 Grams of Cutting Force

Selectable cutting forces, ranging from 5 to 600g, accommodate a wide variety of materials, including fine and thin masking films to thick and hard reflective films.

Innovative Tangential Mode

The tangential mode performs clean cuttings, diminutive letterings and intricate graphics which yield smooth corners and sleek edges on thick materials.

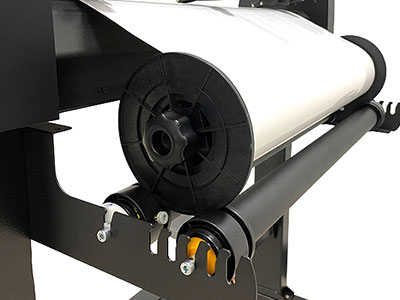

Media Support System

The media support system is fully adjustable. It supports media on standard cores and resolves media drifting and alignment problems to ensure better tracking.

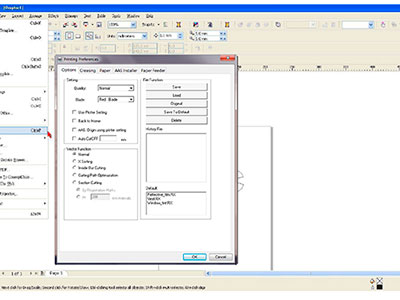

Advanced One Click Driver

RX II series includes a Windows driver that allows sign makers to edit signs from CorelDRAW and output directly to the RX II series cutters. The One Click Driver simplifies the driver installation process. You just double click on the driver installation icon and the program will take care of the rest.

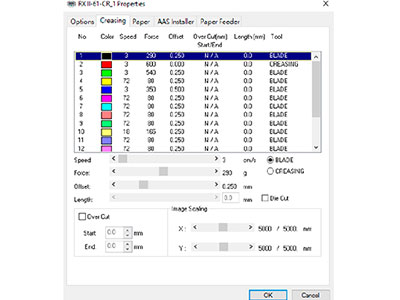

Multiple Parameters Setting by 16 Different Colors

The new interface allows users to set up multiple parameters by using different color lines. This gives the operator greater flexibility when setting up a job.
