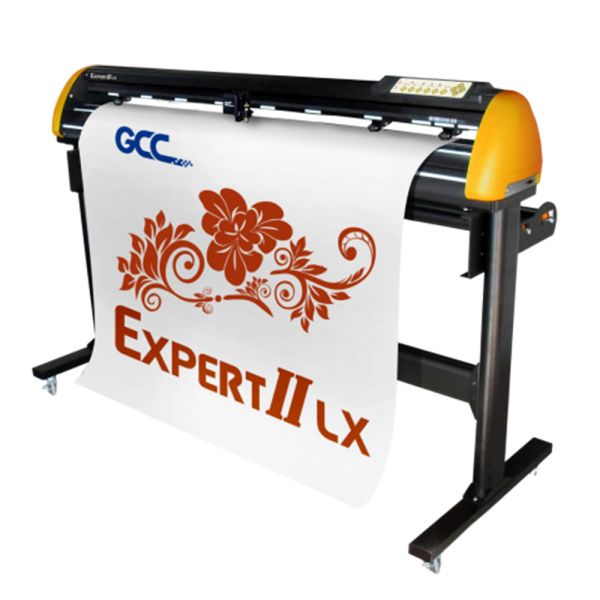

GCC Expert II Vinyl Cutter
Categories: Workshop Equipment , Laser Machines , Laser Machines , Vinyl Cutters / Plotters , GCC Vinyl Cutters / Plotters
Expert II Series is the best choice for beginners and provides sign makers with optimum speed, superior quality, solid reliability and unmatched value.
Top Key Features
- Enhanced AAS II Contour Cutting System (Available on EX II LX Model)
- Dual-port Connectivity
- Guaranteed 3 Meter Tracking
- Handy Grooved Cut-off Tool
Overview
Expert II Series is the best choice for beginners and provides sign makers with optimum speed, superior quality, solid reliability and unmatched value.
Expert II produces eye-catching graphics with up to 27.8 ips (25 ips for EX-52 models ) cutting speed, up to 350 gram of cutting force and guaranteed 3 meter tracking.
Key Features
- Enhanced AAS II Contour Cutting System (Available on EX II LX Model)
- Dual-port Connectivity
- Guaranteed 3 Meter Tracking
- Handy Grooved Cut-off Tool
- Windows Drivers
- User-friendly Interface
Dimensions
| Expert II Series | EX II-24 | EX II-24LX | EX II-52 | EX II-52LX |
| Dimension (HxWxD) mm | 233 x 880 x 255 mm | 1633 x1069 x 650 mm | ||
| Dimension (HxWxD) in | 9.1 x 34.6 x 10 in | 64.2 x 42 x 25.5 in | ||
| Net Weight | 11KG (24.3lb) | 41KG (90.2lb) | ||
Technical Specifications
| Expert II Series | EX II-24 | EX II-24LX | EX II-52 | EX II-52LX |
| Max. Cutting Width | 600 mm (23.6 in.) | 1320 mm (51.96 in) | ||
| Max. Media Width | 719 mm (28.3 in.) | 1470 mm (57.87 in.) | ||
| Acceptable Material Thickness | 0.8 mm | |||
| Max. Cutting Force | 350 g | |||
| Max. Cutting Speed | 705 mm/sec (27.8 ips) (at 45 degree direction) | 635 mm/sec (25 ips) (at 45 degree direction) | ||
| Mechanical Resolution | 0.012 mm (0.00047 in.) | |||
| Software Resolution | 0.025 mm (0.00098 in.) | |||
| Distance Accuracy | ±0.254 mm or ±0.1% of move, whichever is greater | |||
| Repeatability | ±0.1 | |||
| Tracking | 3M | |||
| Memory Buffer | 32MB / 16MB (when using AAS) | |||
| Type of Command | HPGL, HPGL/2 | |||
| Configurable Origin | Yes | |||
| Repeat | Yes | |||
| Copy | Yes | |||
| Control Panel | 6 LEDs / 10 Keys | |||
| Diameter of Blade | 2.5 mm | |||
| Stand | Optional | Standard | ||
| Automatic-Aligning System (AAS II) | Available on Expert II LX models | |||
| Power Supply | 100-240 VAC, 50 / 60 Hz (auto switching) | |||
| Power Consumption | Max. 65 W | |||
| Operation Environment Temperature | 15° C~30° C / 60°F~86° F | |||
| Operation Environment Tangential mode | 25% ~ 75% | |||
Optional Items

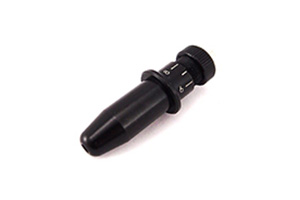

Blade Holder Φ2.5 mm
Adjusting the blade length to fit your needs.

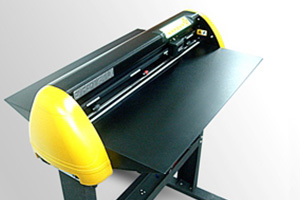

Add-on Flat Table (only for 24 model)
For cutting thick sheet material, such as magnet.

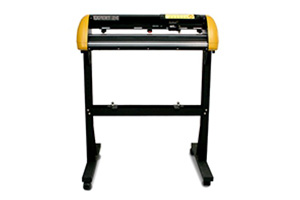

EX II Series Stand
To support cutting plotter machine and roll media.

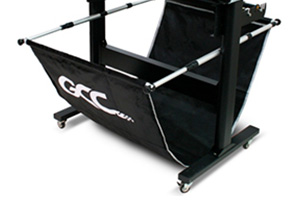

Media Basket
To keep your vinyl off the floor and away from dust or contaminants. Your production will be a clean and efficient operation.

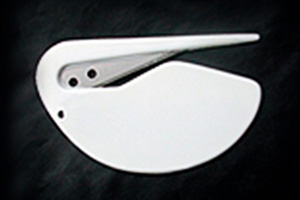

Safe Blade
Users can cut off the finished job by the safe blade.

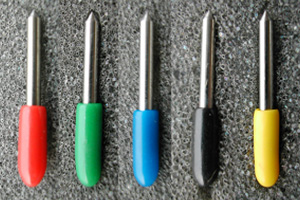

Cutting Blades
Users can replace the cutting blade by different materials to meet your need.

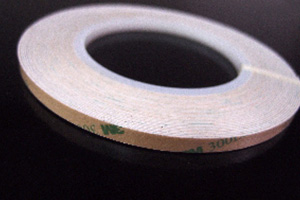

Cutting Pad
It prevents the blades from becoming blunt quickly.
Expert II Vinyl Cutter Features

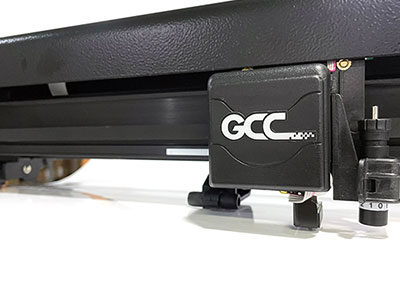

Enhanced AAS II Contour Cutting System (Available on EX II LX Model)
GCC Expert II LX model features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by detecting the registration marks on digitally produced images. Functions include:
Â
 Â | 1st-mark auto-detection |  Â | 4-point positioning |
  | Segmental positioning  |   | Multiple copies |
Â

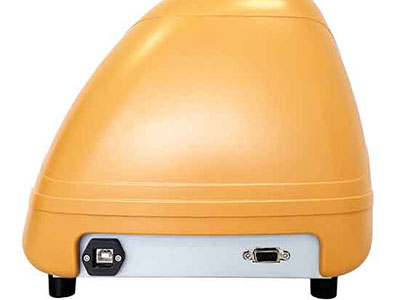

Dual-port Connectivity
GCC Expert II Series supports dual-port connectivity with USB and serial ports. The USB port provides faster data transmission between the computer and GCC Expert II Series. Dual-port connectivity provides sign makers with great flexibility for data transmission.

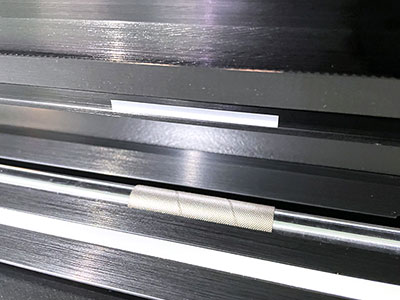

Guaranteed 3 Meter Tracking
GCC Expert II Series is built from the finest parts that come with every GCC cutter. It comes with stable drums that can guarantee 3 meter tracking to ensure quality outputs and save you materials and costs.

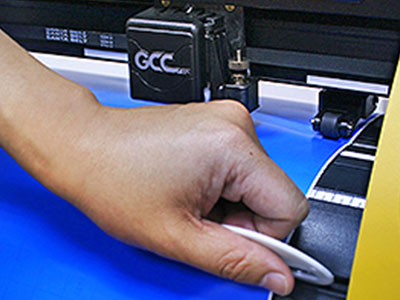

Handy Grooved Cut-off Tool
This handy and innovative design allows you to cut off a finished job in a straight line easily reducing the possibility of wasting usable material

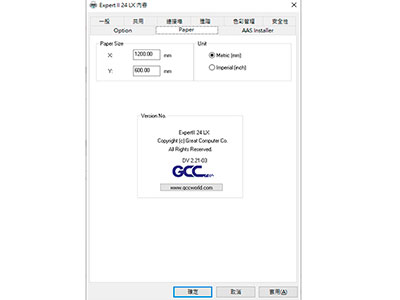

Windows Drivers
Expert II Series includes a "one click" Windows driver that allows sign makers to edit signs from CorelDraw and output directly to Expert II Series, making it simple and easy to make signs with Expert52 LX.

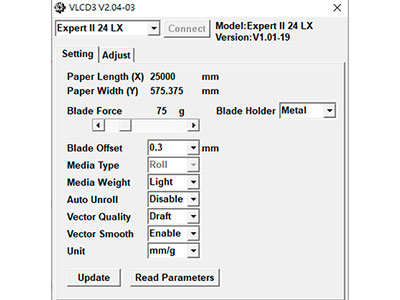

User-friendly Interface
The control panel of Expert II Series is very user-friendly; it comes with the special VLCD software, providing a simple and intuitive workflow for users of all levels.
