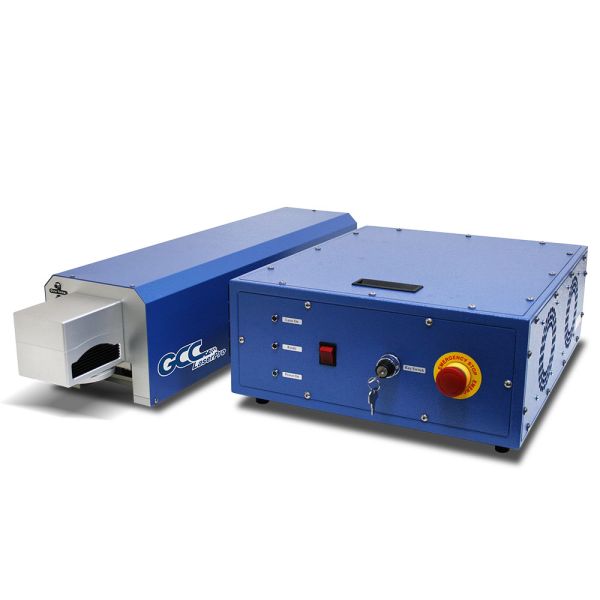

GCC StellarMark C-series Laser Marker

StellarMark Laser Marker not only the key components sourced from the world’s leading suppliers to ensure output quality and stability, but also has the flexibility for manufacturers to handle complex jobs with G-Mark Library software.

Top Key Features

RoHS Compliance
CE Certification
G-Mark Library (Optional)
Pyramid Focus Tool
MARK on the fly (Optional)...

Enquire

Details

Overview

StellarMark Laser Marker is built to accomplish all your needs and performs the finest marking detail to achieve a higher level of productivity.

Key Features

RoHS Compliance
CE Certification
G-Mark Library (Optional)
Pyramid Focus Tool
MARK on the fly (Optional)
Jump Cross
Wobble Marking
Array Copy
Error Indications
Secure Password System
Preview Mode
Automatic Serial Marking
Barcode Marking
Logo and Image Marking

Specifications

Dimensions

StellarMark CIIS 12 / CIIS 30V	CIIS 010	CIIS 050	CIIS 070	CIIS 140
Dimensions Laser Head	831 x 200 x 178 mm		831 x 200 x 178 mm
Dimensions Control Unit	500 x 420 x 192.4 mm
Laser Marker Weight	15 kg		17 kg
Control Unit Weight	17 kg		19 kg
Working Area	10 x 10 mm	50 x 50 mm	70 x 70 mm	140 x 140 mm
Spot Size	0.09 mm	0.12 mm	0.24 mm	0.46 mm
Repeatability**	0.001 mm	0.003 mm	0.004 mm	0.008 mm
Spot Size	0.041 mm		0.067 mm
Working Distance	245 ± 2 mm		285 ± 2 mm
Repeatability**	0.04 mm		0.04 mm
Laser Marker Weight	16.0 Kg
Laser Housing Unit Weight	12.7 Kg

Technical Specifications

StellarMark C-Series		CIIS 12	CIIS 30V
Laser Source	Wavelength	10.6 μm
	Type	CO2, sealed-off
	Output Power	12W	30W
	Cooling	Air-cooled, no water chiller required
Max. Linear Marking Speed		3,000 mm/s
Max. Marking Speed		10,000 mm/s
Electrical Requirements	Power Supply	AC Auto Switching 115V / 230V, 50-60 Hz/ single phase
	Power Consumption	740W	1240W
Operating System		Microsoft Windows 2000 / XP / Vista(32/64 Bit) / 7(32/64 Bit) / 8(32/64 Bit) (Desktop or Laptop PCs)
Safety		Class 4 (EN60825-1 Class 1 available with safety shield and LFC) 2006/42/EC Machinery Directive) 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive
Environment	Temperature	15℃ ~ 35℃
	Humidity	10 ~ 80% Non condensing

*Speed does not equal to throughput. See dealer or visit www.gccworld.com for more details.
** File transmission at USB 2.0 Full Speed rate.

Equipment

Optional Items

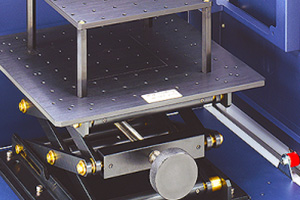

Adjustable z-axis table

Adjust the marking surface as required to ensure that it is parallel to the Stellar Mark focusing lens mount.

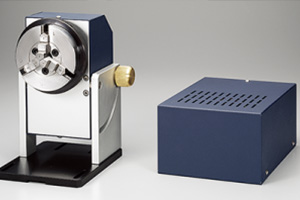

Rotary Attachment - Marker

The rotary attachment unit allows for precise 360° marking on round, cylindrical, or torus-shaped objects. The unit flexibly accommodates objects with external diameters up to 81 mm, internal diameters up to 70 mm, and weight up to 5kg. External marking on torus-shaped objects, such as a ring, is simple and precise with the included ring stick.

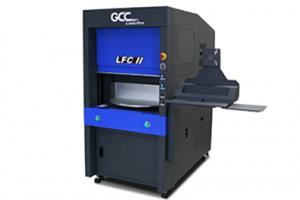

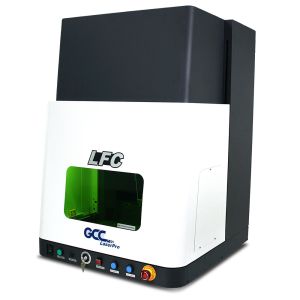

Workstation

*Not available on StellarMark C-100 model

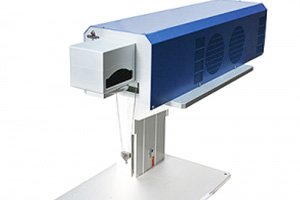

EZ Stand (C-series)

EZ Stand is a simple laser marker holder that allows users to quickly set up a marking environment suitable for use with StellarMark C & I series. An adjustment dial on the EZ Stand allows users to quickly and easily adjust the position of the laser marker to maintain the most suitable focal distance for the varying focal distance requirements when marking objects of different sizes.

StellarMark C-series Laser Marker Features

RoHS Compliance

All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.

CE Certification

StellarMark complies with the essential safety requirement which set out in the European Directives.

G-Mark Library (Optional)

This programmable software can be used to customize functions by using VB scripts. All the commands are received in real time from a master PC and position to offsets, rotating angles and sequential marking can be easily set up

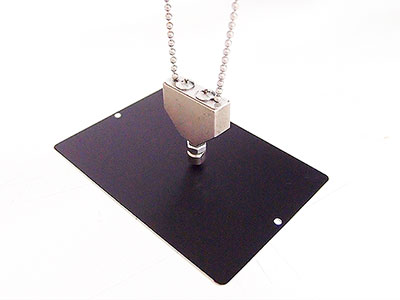

Pyramid Focus Tool

Pyramid Focus Tool is standard feature for StellarMark IFII series. It helps you to quickly and precisely find the correct focus distance with ease.

MARK on the fly (Optional)

Non-stop, "on-the-fly" marking of parts maximizes productivity. Precise laser can mark fast-moving parts while the conveyor is at constant or varying speed.

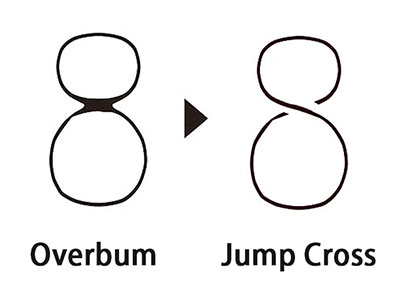

Jump Cross

This feature can effectively avoid over-burning problems caused by two overlaping lines in the same character.

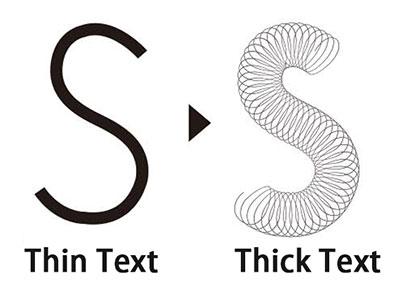

Wobble Marking

This function allows the true type text to be marked with thicker line.

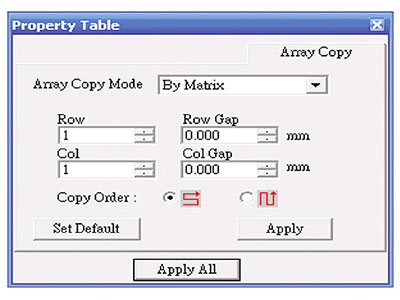

Array Copy

Users can create multiple copies of a text or graphic by specify the number of copies to be replicated and the graphic will be rendered in a matrix format.

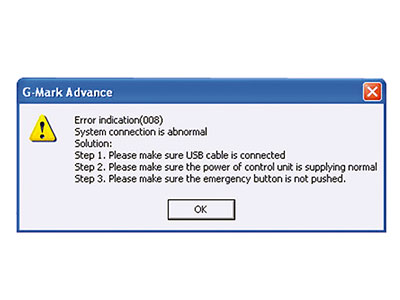

Error Indications

Error messages appear when the laser marker works incorrectly. Operators can be informed by the message and solve the problem immediately.

Secure Password System

Three-tier password security system (Operator, Programmer, Administrator levels) restricts unauthorized access to the production line.

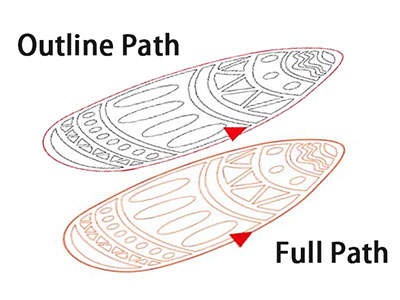

Preview Mode

Variable-speed, red dot pointer "preview" mode performs accurate and easy marking positioning on the marked part.

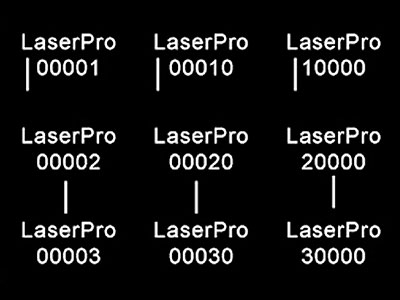

Automatic Serial Marking

With this feature, users can increase or decrease the serial part number automatically.

Barcode Marking

14 types of 1D and 5 types of 2D barcodes (Data Matrix, PDF417, QR Code and Maxi Code) are available.

Logo and Image Marking

This function provides imported vector files and raster images up to 1000 dpi utilizing beam expander and performing exceptional image processing capabilities.
