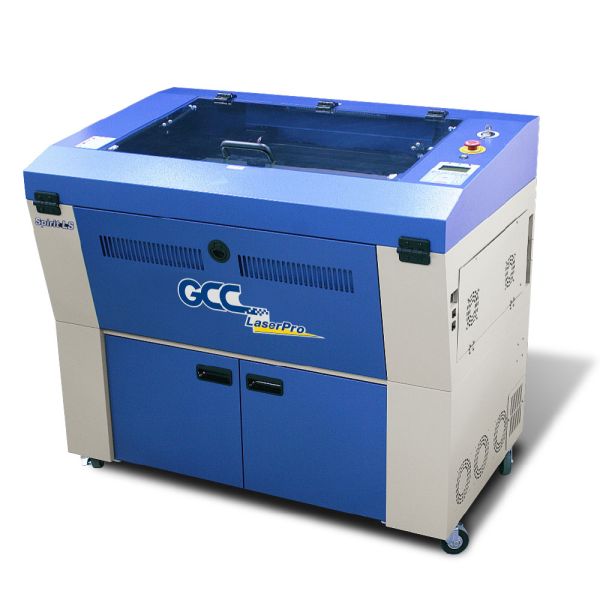

GCC Laser Engraver - Spirit LS

The LaserPro Spirit is designed with the operator in mind and carrying various innovative features, reliable mechanics, and excellent laser output quality.

Top Key Features

Drag-N-Play user friendly feature - simply drag the laser to desired position to be engraved
Innovative windows driver - direct output from design software like Illustrator, CorelDraw, Autoad
Built-In networking connection
Key switch & emergency stop button

Enquire

Details

Overview

The LaserPro Spirit is designed with the operator in mind and carrying various innovative features, reliable mechanics, and excellent laser output quality.

This system is the missing piece in your operations puzzle, putting you on track for continued growth in your laser engraving and cutting business!

Key Features

Drag-N-Play user friendly feature - simply drag the laser to desired position to be engraved
Innovative windows driver - direct output from design software like Illustrator, CorelDraw, Autoad
Built-In networking connection
Key switch & emergency stop button
SmartCENTER™ (ptented) to easily & automatically locate the center point
TrueImage™ Engraving Technology (patented)
RoHS Compliant and lead free

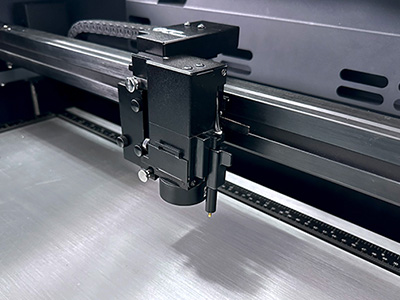

SmartPIN™ Autofocus(patented) & SmartLIght
Up to 80 IPS high working speed
Patented SmartACT™ motion control technology for higher throughput

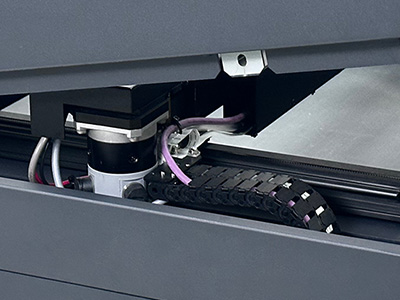

Closed-loop DC servo motor for precise movement of laser carriage

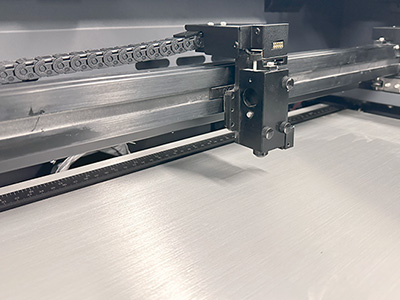

Reliable DuraGuide motion system with reinforced Kevlar belt delivers superb output quality
Pass-through front and rear doors to accommodate long working pieces
Plug and play standard USB port for rapid data transmission

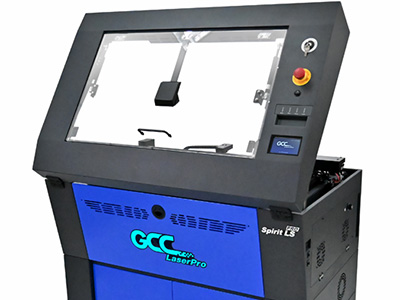

Patented SmartLID TM innovative lid that opens from both sides allowing easier access

Specifications

Dimensions

Dimensions:	1125 x 720 x 1005 mm
Work Area:	640 x 460 mm - extendible to 740 x 460 mm
Part Size:	762 x 482.6 x 165 mm

Technical Specifications

Computer Interface / Network:	10 Base-T Ethernet, Full speed 2.0 USB

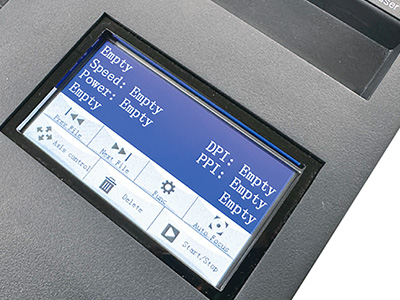

Display:	4-line LCD display showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus
Electrical:	Laser below 80Watt, 100-240VAC, 50-60Hz Auto Switching, Max. 15A Laser 80Watt and above, 200-240VAC, 50-60Hz, Max. 15A
Extraction System:	External exhaust system with minimum flow rate 640m3ih is required, 4-inch connection port on the back of machine
Safety:	Class I Laser Product Compliant with EN60825, Class II Laser Product Compliant with CDRH 2006/42/EC Machinery Directive Compliance
Supported Material:	Leather, Signage, Anodized metal, Stone/tile, Acrylic, Textiel / apparel
Cooling:	Air Cooled
Distance:	0.254 mm or 0.1% of move, whichever is greater
Drive:	Closed-loop DC Servo Control
Engraving Capability:	256-level grey scale image processing capability
Focus Lens:	Standard 2.0’, optional 1.5", 2.5", & 4.0"
Laser Source:	12 to 100W 10.6µm sealed CO2 laser / 20W & 60W 9.3-µm sealed CO2 Laser
Operating System:	MS Windows
Power Control:	Adjustable from 0-100% (Up to 16 colour linked power settings per job)
Resolution / DPI:	(DPI) Available: 125, 250, 300, 380, 500, 600, 760, 1000, 1500
Speed Control:	Adjustable from 0.1-100% (Up to 16 colour linked speed settings per job)
Spindle Motor:	Speed: 80 IPS ** (max)
Throughput:	1683 cm2 / hr (260.9 in2 / hr) 2078 cm2 / hr (322.1 in2 / hr)
Z-Axis:	Automatic
