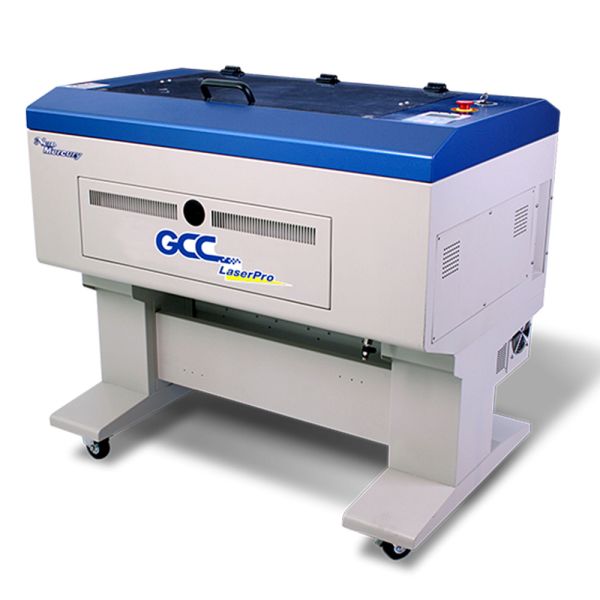

GCC Laser Engraver - Mercury 3
LaserPro Mercury III carries the fine tradition of the Mercury series to provide stable engraving quality.
Top Key Features
- 635 x 458 mm (25" x 18" ) working area
- Popular all around laser engraver with stable and satisfactory performance
- Intuitive control panel allows easy operations

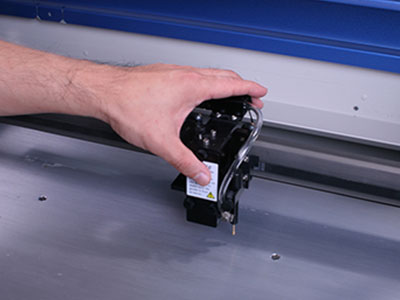

- Easy maintenance motion system
Overview
LaserPro Mercury III carries the fine tradition of the Mercury series to provide stable engraving quality. The servo motor enables fast movement of lens carriage while maintaining accuracy over time, giving you reliable and dependable results.
Mercury III is reinforced with new features, including key switch, user-friendly control panel, and SmartCENTER which brings you the best way for laser engraving.
Key Features
- 635 x 458 mm (25" x 18" ) working area
- Popular all around laser engraver with stable and satisfactory performance

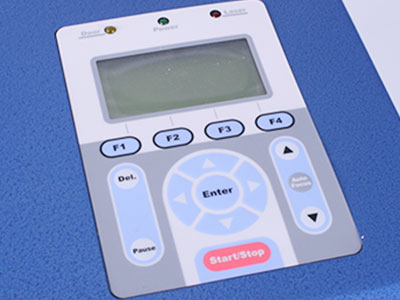

- Intuitive control panel allows easy operations
- Easy maintenance motion system

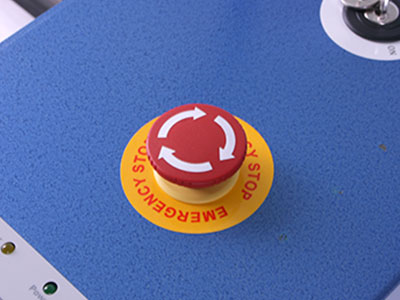

- Emergency button and key-switch add an extra layer of safety
- RoHS compliant & lead free

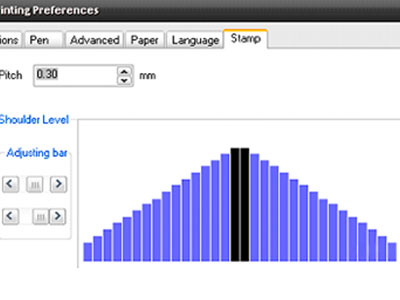

- Flexible 3D and stamp engraving
- Closed loop DC servo motor

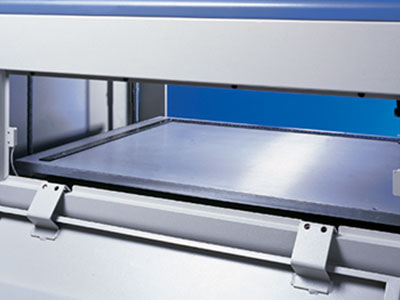

- Pass-through front and rear doors to accommodate oversized working pieces
- Feature-rich windows driver
- Power by USA Made Synrad laser
Dimensions
Dimensions: | 1125 x 720 x 1005 mm |
---|---|
Part Size: | 685 x 482 x 165 mm |
Technical Specifications
Computer Interface / Network: | 10 Base-T Ethernet, Full speed 2.0 USB |
---|---|
Display: | 4-line LCD display showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus |
Electrical: | 100-240VAC, 50-60Hz Auto Switching, Max 15A |
Features: | Auto Focus Red Dot Pointer Pass Through Doors 3D and Stamp Mode |
Extraction System: | External exhaust system with minimum flow rate 640m3/h (CFM 377 ft3/min) is required, 2.3kPA negative pressure (Pure-Air PA-1000FS @ 4” exhaust port) |
Safety: | Class I Laser Product Compliant with EN60825, Class II Laser Product Compliant with CDRH 2006/42/EC Machinery Directive Compliance Class 4 Laser Product Compliant with CDRH with the optional pass-through door module |
Accuracy: | 0.254 mm or 0.1% of move, whichever is greater |
Cooling: | Air-cooled |
Drive: | Closed-loop DC Servo Control |
Engraving Capability: | 256-level grey scale image processing capability |
Focus Lens: | Standard 2.0", optional 1.5", 2.5” & 4.0” available |
Laser Source: | 12, 30, 40, 60W |
Operating System: | MS Windows |
Power Control: | Adjustable from 0-100% (Up to 16 colour linked power settings per job) |
Resolution / DPI: | (DPI) Available: 125, 250, 300, 380, 500, 600, 760, 1000, 1500 |
Speed Control: | Adjustable from 0.1-100% of 42 IPS (Up to 16 colour linked speed settings per job) |
Throughput: | 1072.8 cm2 / hr (166.3 in2 / hr) |
Z-Axis: | Automatic |
