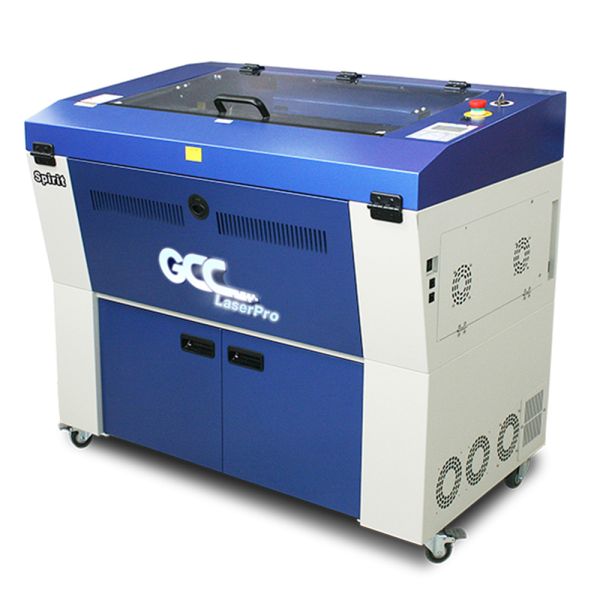

GCC Laser Engraver - Spirit CO2
Categories: Workshop Equipment , CNC & Laser Solutions , Workshop Equipment , CNC & Laser Solutions , Laser Cutters & Engravers , Laser Engravers
GCC LaserPro Spirit CO2 Laser Engraver is designed with the operator in mind and carrying various innovative features, reliable mechanics, and excellent laser output quality.
Top Key Features
- Drag-N-Play
- Innovative Windows Driver
- Built-In Networking Connection
- Key Switch & Emergency Stop
- SmartCENTER™ (Patented)
- Astonish 3D Engraving
Overview
GCC LaserPro Spirit CO2 Laser Engraver is designed with the operator in mind and carrying various innovative features, reliable mechanics, and excellent laser output quality.
The GCC LaserPro Spirit CO2 Laser Engraver is the missing piece in your operations puzzle, putting you on track for continued growth in your laser engraving and cutting business!
Key Features
- Drag-N-Play
- Innovative Windows Driver
- Built-In Networking Connection
- Key Switch & Emergency Stop
- SmartCENTER™ (Patented)
- Astonish 3D Engraving
- TrueImage Engraving Technology (Patented)
- SmartACT™ (Patented)
- RoHS Compliance
- SmartPIN™ AutoFocus (Patented)
- Pass-through Front to Rear Doors (Optional)
- DuraGuide Motion Design
- SmartLIGHT & Bridge Cutting
- Intuitive Control Panel Interface
- Rigid and Reliable Construction
- Programmable Origin Modes
- SmartLID™ (Patented)
- Closed-loop DC Servo Technology
Dimensions
| Dimensions: | 1125 x 720 x 1005 mm |
|---|---|
| Work Area: | 640 x 460 mm (extendable 740 x 460 mm) |
| Part Size: | 762 x 482.6 x 165 mm, 762 x ∞ x 165 mm (doors open) |
Technical Specifications
| Computer Interface / Network: | 10 Base-T Ethernet USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system) USB Type-B 2.0 – For connecting with the computer |
|---|---|
| Display: | 4-line LCD display showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus |
| Extraction System: | External exhaust system with minimum flow rate 640m3/h (CFM 377 ft3/min) is required,2.3kPA negative pressure (Pure-Air PA-1000FS @ 4" exhaust port) |
| Power Consupmtion: | Laser below 80Watt, 100-240VAC, 50-60Hz Auto Switching, Max. 15A Laser 80Watt and above, 200-240VAC, 50-60Hz, Max. 15A |
| Safety: | Class 1 Laser Product Compliant with EN60825 Class 2 Laser Product Compliant with CDRH, 2006/42/EC Machinery Directive Compliance Class 4 Laser Product Compliant with CDRH with the optional pass-through door module |
| Speed: | Max Motor Speed 1.52 m/s (60 in/s)* |
| Cooling: | Air-cooled, Operating environment temperature 15°-30°C (60°-86°F) |
| Distance: | Distance Accuracy 0.254 mm or 0.1% of move, whichever is greater |
| Drive: | Closed-loop DC Servo control |
| Engraving Capability: | 256-level gray scale image processing capability |
| Focus Lens: | Standard 2.0", optional 1.5", 2.5", & 4.0" available |
| Laser Source: | 12 to 100W 10.6-μm sealed CO2 Laser / 20W & 60W 9.3-μm sealed CO2 Laser |
| Operating System: | MS Windows |
| Power Control: | Adjustable from 0-100% (Up to 16 color-linked power settings per job) |
| Resolution / DPI: | Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500 |
| Speed Control: | Adjustable from 0.1-100% (Up to 16 color-linked speed settings per job) |
| Z-Axis: | Automatic |
Throughput value represents the Max. number of 8 in. x 10 in. 500DPI raster jobs that can be done per hour.
The flow rate is determined by a default fume extraction system; the flow rate may vary due to a different fume extraction system.
Optional Items
SmartTOOL™
The GCC SmartTOOL™ is a Windows CorelDraw extension that drastically reduces process times. It simplifies tasks, saves time, and is intuitive to use without training. You will be amazed by its features.

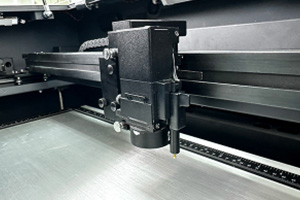

SmartVISION™ Elite CCD
GCC LaserPro laser engraver utilizes the SmartVISION™ Elite CCD module, which enhances productivity by memorizing and locating printed graphics for precise, automatic contour cutting on materials like wood, acrylic, and cardstock. The working area will be changed to 550mm X 440mm (21.6”X 17.3”) after installing the CCD module .
Please note that the SmartVISION™ Elite CCD is exclusively compatible with CO2 models.
Please note that the SmartVISION™ Elite CCD is exclusively compatible with CO2 models.
Rotary Attachment
Elevate the laser engraver and cutter to a higher level! By using the rotary attachment, laser engraving on cylindrical or round objects is now possible. This option uses the fourth axis to rotate your object 360° to allow engraving on cups, wine glasses or even a baseball with two types of conical fixtures available. The minimum/maximum diameter and length of the working object are 7 mm / 150 mm and 450 mm respectively. Its maximum weight should not exceed 4kgs.

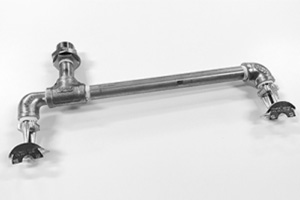

Flame Sprinkler System
Laser engraving and cutting operations using the flame sprinkler system protects the operator, machine, and working objects from potential fire hazards. During the engraving process, flaming may occur when working with combustible or easily-flammable materials, such as paper or wood. The flame sprinkler system is an optional item that automatically ejects gas to extinguish flames when they reach 68°C/155°F moments after the onset of the fire.
AAS Contour Cutting Device
Developed by GCC LaserPro, AAS is an exceptionally user-friendly operation which offers accurate and faultless contour cutting by automatically tracking the position of graphics for laser engravers and cutters.
Note: Working area and engraving speed will be reduced when AAS module is installed.
*The working area will be changed to 510mm X 410mm (20" x 16.1") after installing the AAS Contour Cutting Device.
Note: Working area and engraving speed will be reduced when AAS module is installed.
*The working area will be changed to 510mm X 410mm (20" x 16.1") after installing the AAS Contour Cutting Device.
Dust Prevention Window
When the laser system is on duty, it will bring a lot of dust result from the material and it will contaminate the lenses and mirrors. Dust Prevention Window can keep lenses and mirrors clean to promote longer laser life and increase the effect of air induction.

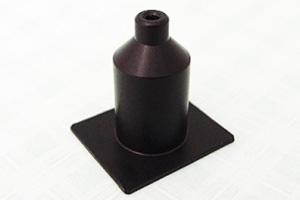

SmartAIR™ Fine Nozzle
The optional SmartAIR Fine Nozzle is recommended for laser engraving or cutting thin materials such as textile. The smaller caliber nozzle is positioned closer to the object for a concentrated blast directed over a small area to eliminate burning on the cutting edge. The perfectly-vertical design of the SmartAIR Fine Nozzle produces a concentrated airflow to blow away dust and unwanted residue, leaving a clean product surface.
SmartBOX™
An innovative technology for laser engravers and cutters that integrates the ventilation box with a honeycomb table or aluminum grid cutting table. The result is not only a precise cut with sharp edges, but also a clean laser table to work on.
External Interface Control Board
The External Control Interface Board is an optional item that allows users to set up GCC LaserPro laser engraving and cutting systems for communication with external devices such as odor reduction units, robot arms, and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.The External Control Interface Board is an optional item that allows users to set up GCC LaserPro laser engraving and cutting systems for communication with external devices such as odor reduction units, robot arms, and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.
Grid Cutting Table
The grid cutting table is an ideal pal for laser cutting. It lifts the work piece off the work table from hitting by laser reflection while supports it with reinforced grid design. The dust and vapor created during laser cutting are then taken away effectively through the grid by down vacuum funnel exhaust. Rather than handling rigid materials, grid cutting table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting result.
Entry-Level Fume Extraction System
GCC PA-1500FS & PA-1000FS, CE-certified fume extraction systems, are designed to remove hazardous fumes and dust during laser processing to protect the health of operators, eliminate environmental pollution and enhance laser engraving and cutting.
* For seamless fume extractor control via laser machines, we recommend considering the purchase of an external I/O board.
* For seamless fume extractor control via laser machines, we recommend considering the purchase of an external I/O board.
Wi-Fi Router
Wi-Fi router allows you to transmit data through a wireless network. It can work with GCC laser engravers and RX II/ Jaguar V cutting plotters through the Ethernet port (not applicable for Japanese users.) Whether you are sending files to multiple GCC machines using one PC or sharing one unit of GCC machines with multiple PCs, this wireless technology can be an excellent helper.
SmartPRINT™
SmartPRINT™ software features powerful functions, an intuitive interface, and built-in GCC LaserPro laser parameter setting for both Mac and Windows users. SmartPRINT™ provides clipart libraries, compatibility for various file formats, and advanced graphic functions such as Auto Trace Image Contour, Convert to Rhinestone, Generate Puzzle, and many more. Also, the additional text justification and sizing options can convert stroke to the path.
Honeycomb Table
A clean and better cutting quality is achieved by the honeycomb table when cutting materials into small pieces. It lifts the workpiece off the work table from hitting by laser reflection. The dust and vapor created during processing are then taken away effectively through the honeycomb cell by a down vacuum funnel exhaust. Rather than handling rigid materials, the honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting results.
SmartGUARD™ Fire Alarm (Patented)
Laser engraving and cutting operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.
Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.
Purex Fume Extraction System
GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line GCC LaserPro laser engraving and cutting systems. Purex is specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Noise-free operation, high vacuum capacity, compact design, and long life expectancy, the Purex is CE-compliant that represents the latest invention in exhaust extraction and smoke reduction technology for all types of applications.
Stack Light Set
The indicator will flash to signal the end of job process and is ideal for working environment where audibility is weak.
Red light stands for “Error”; Green light stands for “ Stand-by”; Yellow light stands for “Machine is working / Insert the pass-through door key”
(This item is available for machine with 5272 V3 Mainboard and afterwards)
Red light stands for “Error”; Green light stands for “ Stand-by”; Yellow light stands for “Machine is working / Insert the pass-through door key”
(This item is available for machine with 5272 V3 Mainboard and afterwards)
Rotary Chuck
The rotary chuck for GCC LaserPro Spirit series and S400 is a handy tool used for laser engraving on cylindrical or spherical objects. In addition to the standard X, Y, Z axis, the rotary chuck allows for the fourth axis which rotates the object 360° to allow for engraving on cups, wine glasses, and even spherical objects. Supports diameters from 0.5–120 mm, lengths up to 410 mm, and weights up to 4 kg.
Spirit CO2 Laser Engraving Features
Drag-N-Play
An exceptionally innovative and user-friendly feature based on servomotor technology simplifies operations and shortens setup time. Simply hand drag the lens carriage of the laser engraver to the desired position to be engraved and press the start button to commence the job.
Innovative Windows Driver
Directly output from familiar designing software like Illustrator, CorelDraw, AutoCad through GCC LaserPro Windows driver for laser engravers. The innovative driver features SmartCENTER, Air Assist by Pen, Defous by Pen, Bridge Cutting, Drill, Dithering Patterns, and more to reduce set up time and make easy adjustments to achieve marvelous output quality.
Built-In Networking Connection
Network connection enables multiple laser engravers to be operated by one PC and multiple PCs to share a single unit of laser engraver. The Ethernet port has made data transmission easier and faster for GCC LaserPro users using network connection. Free your designers with great flexibility and maximum machine versatility.
SmartCENTER™ (Patented)
The super user-friendly SmartCENTER™ function helps end users to easily and automatically locate the center point of objects of any shape vastly eliminating tedious setup time.
Astonish 3D Engraving
GCC LaserPro integrates laser firing control and image processing technology to create a 3D laser engraving function, the laser system assigns up to different laser powers to 200 levels of grayscale in the image to make the spectacular 3D effects with different slopes.
TrueImage Engraving Technology (Patented)
Key switch safeguards the machine from unauthorized use. Prominent emergency button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operating environment.
Key Switch & Emergency Stop
Key switch safeguards the machine from unauthorized use. Prominent emergency button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operating environment.
SmartACT™ (Patented)
Spirit laser engraver SmartACT™ is a groundbreaking technology that reduces the ramping process and job running time for laser engraving, which translates into higher productivity.
RoHS Compliance
All GCC laser engravers are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide eco-friendly products to protect the earth for our further generations.
SmartPIN™ AutoFocus
(Patented)
The plug-and-play probe design makes focusing a one-touch process and provides the accuracy and precision required for optimum quality even when laser engraving on transparent materials.
Pass-through Front to Rear Doors (Optional)
A design with doors on both ends of the laser engraver to accommodate extremely long working pieces without the need for a screwdriver.
DuraGuide Motion Design
Systematic and reliable motion system embedded with strong mechanical framework and accurate servo motor control technology to deliver superb laser engraving output quality under rapid movement.
SmartLIGHT
A Built-in LED light module illuminates the working space of the laser engraver and makes every laser engraving detail easy to see.
Intuitive Control Panel Interface
A user-friendly menu-driven interface system simplifies the operation of Spirit series laser engraver. Hot keys design and job status display facilitates your work and makes it clear and easy to carry out.
Rigid and Reliable Construction
Rigid and stable chassis construction of the laser engraver ensures consistent output quality under high speed movement.
Programmable Origin Modes
Easy-to-use multiple position modes allow the operators an effortless way to set up laser engraving jobs with Drag-N- Play. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.
SmartLID™ (Patented)
An innovative lid that opens from both ends of the laser engraver allows easy access for daily maintenance.
Closed-loop DC Servo Technology
Spirit laser engraver utilizes Closed-loop DC servo motor that delivers greater continuous shaft power at higher speeds than a stepper of the same frame size. In addition, It can also give far greater accuracy for laser engraving due to the continuous movement, instead of constant stopping and starting.

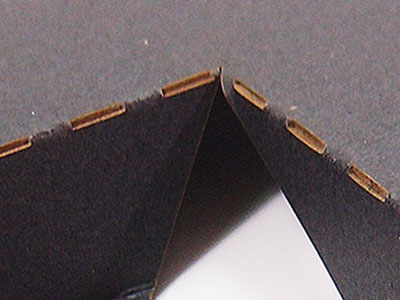

Bridge Cutting
Bridge Cutting function diversifies the laser cutting into packaging prototyping and fulfills versatile requirements. Define the cutting gap to create the dashed line effect from user-friendly print driver interface.
