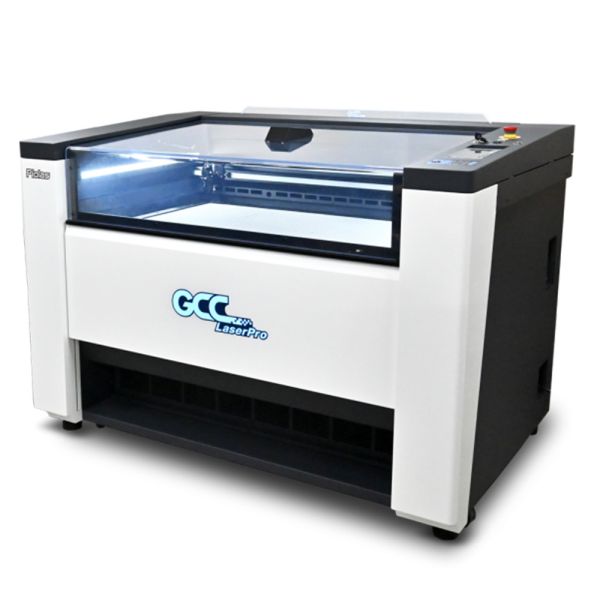

GCC Laser Engraver - Piolas 400 Series
Categories: Workshop Equipment , Laser Machines , CNC & Laser Solutions , Laser Cutters & Engravers , Laser Cutters & Engravers , Laser Engravers
GCC LaserPro Piolas 400 Series stands as the pinnacle of our technological advancements, boasting an unprecedented speed of 4.44 m/s (175 in/s).
Top Key Features
- 4.45 m/s (175 in/s) Engraving Speed
- Transparent Top-lid Window
- Live-view Camera
- Status Indicator Light
- SmartEYES™ CCD
Overview
GCC LaserPro Piolas 400 Series stands as the pinnacle of our technological advancements, boasting an unprecedented speed of 4.44 m/s (175 in/s).
With innovative features like SmartEYES™ and live-view CCD, the operation is seamless and effortless. Elevate your artwork to new heights with GCC Piolas 400 Series, delivering unmatched throughput and quality.
Key Features
- 4.45 m/s (175 in/s) Engraving Speed
- Transparent Top-lid Window
- Live-view Camera
- Status Indicator Light
- SmartEYES™ CCD
- 7” Touch Panel
- SmartLID™ for Easy Maintenance

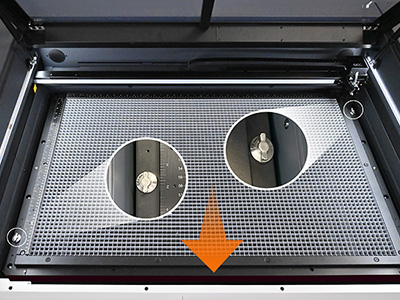

- Easy Platform Switching
- User Friendly Driver Interface
Dimensions
| Dimensions: | 1,511 x 1,107 x 1,123 mm |
|---|---|
| Weight (Gross): | 392 kg |
| Work Area: | 1,016 x 610 mm |
| Part Size: | Max: 1,091 x 680 x 280 mm (1,064 x ∞ x 165 mm with pass-through) |
Technical Specifications
| Camera: | SmartEYES & Live-view camera (Standard), SmartVISION Elite (optional) |
|---|---|
| Computer Interface / Network: | 10 Base-T Ethernet, USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system) USB Type-B 2.0 – For connecting with the computer |
| Display: | 7" Touch panel |
| Electrical: | 60Watt and above, 200-240VAC, 50/60HZ Auto Switching, max. 15A |
| Features: | Upper exhaust port diameter: 4" (101mm) / Lower exhaust port diameter: 5" (127mm) |
| Extraction System: | Fume Extraction System - External exhaust system with minimum flow rate 800m3/h (CFM 471 ft3/min) is required, 2.3kPA negative pressure (Pure-Air PA-1500FS @ 4" exhaust port) |
| Safety: | Class 1 Laser Product Complies with EN60825-1:2014, EN ISO 13849-1:2023 Class 2 Laser Product Complies with CDRH for CO2 Laser 2006/42/EC Machinery Directive Compliance Class 4 Laser Product Compliant with CDRH with the optional pass-through door module |
| Speed: | Max Engraving Speed *: 4.44 m/s (175 in/s) Speed is not equal to throughput |
| Cooling: | 60W~120W - Air-cooled, Operating environment temperature 15°- 30°C (59°- 86°F) |
| Drive: | AC Servo System |
| Engraving Capability: | 256-level gray scale image processing capability |
| Focus Lens: | CO₂:Standard 2.0" (Optional 1.5", 2.5", 3.0" & 4.0") |
| Laser Source: | CO₂ : 60W, 80W, 100W, 120W |
| Operating System: | MS Windows |
| Power Control: | Adjustable from 0-100% (Up to 16 color-linked power settings per job) |
| Resolution / DPI: | Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500 |
| Speed Control: | Adjustable from 0.1-100% (Up to 16 color-linked speed settings per job) |
| Work Area Type: | Working Table Piolas 400: Standard Alu Grid Cutting Table with leveling adjustment Piolas 400SE: Standard Alu Grid Cutting Table w/o leveling adjustment |
| Z-Axis: | Automatic |
Optional Items
Stack Light Set
The indicator will flash to signal the end of job process and is ideal for working environment where audibility is weak.
Red light stands for “Error”; Green light stands for “ Stand-by”; Yellow light stands for “Machine is working / Insert the pass-through door key”
(This item is available for machine with 5272 V3 Mainboard and afterwards)
Red light stands for “Error”; Green light stands for “ Stand-by”; Yellow light stands for “Machine is working / Insert the pass-through door key”
(This item is available for machine with 5272 V3 Mainboard and afterwards)
Purex Fume Extraction System
GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line GCC LaserPro laser engraving and cutting systems. Purex is specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Noise-free operation, high vacuum capacity, compact design, and long life expectancy, the Purex is CE-compliant that represents the latest invention in exhaust extraction and smoke reduction technology for all types of applications.
Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.
SmartGUARD™ Fire Alarm (Patented)
Laser engraving and cutting operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.

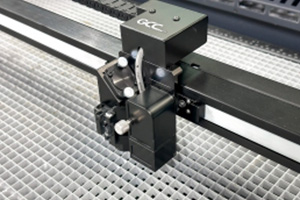

SmartVISION™ Elite CCD
The GCC Piolas laser engraver utilizes the CCD module to enhance productivity by learning, memorizing, and precisely locating printed graphics for contour cutting. It automatically adjusts settings to ensure accurate cuts on various materials like wood, acrylic, and cardstock. Additionally, the SmartVISION™ Elite CCD can be quickly detached and reinstalled, making it more convenient to use.
SmartTOOL™
The GCC SmartTOOL™ is a Windows CorelDraw extension that drastically reduces process times. It simplifies tasks, saves time, and is intuitive to use without training. You will be amazed by its features.
Spirit LS PRO Laser Engraving Features

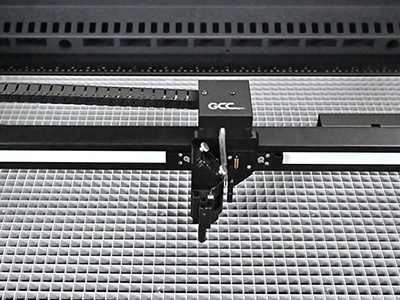

4.45 m/s (175 in/s) Engraving Speed
Piolas 400 Series excels in performance, delivering unparalleled productivity benefits.

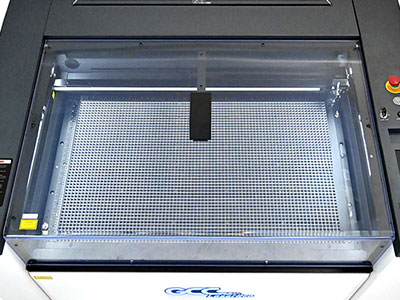

Transparent Top-lid Window
The clear and lightweight top-lid window allows expensive visibility and superior ease of use.

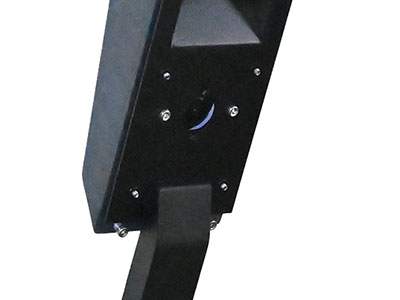

Live-view Camera
The standard live-view camera is an ideal educational tool for real-time observation and learning.

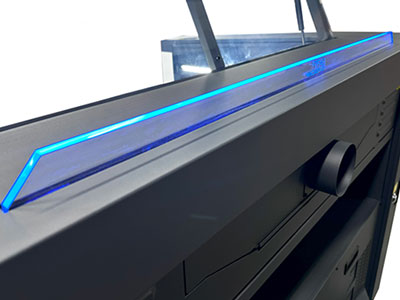

Status Indicator Light
The status indicator bar displays the machine's current operating state, standby mode, or error status, enabling users to easily monitor the machine's condition from a distance.

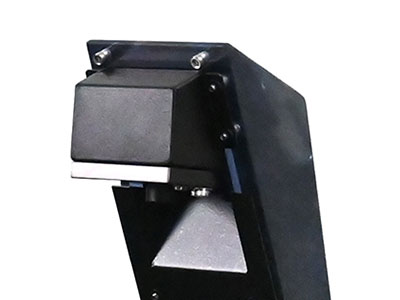

SmartEYES™ CCD
SmartEYES™ CCD on the top lid, offering a comprehensive view of the entire work area for effortless positioning.

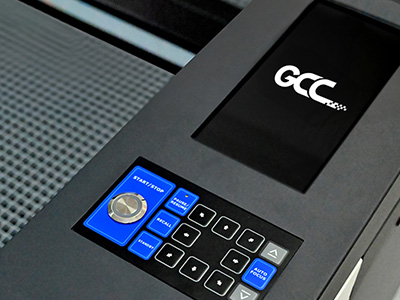

7” Touch Panel
Outfitted with a standard 7-inch touch panel and button controls for an intuitive and convenient operational experience.

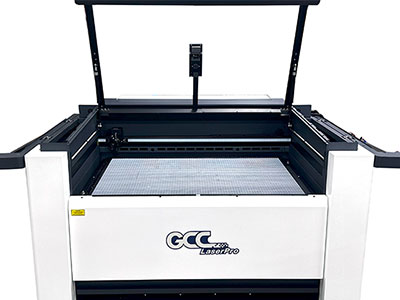

SmartLID™ for Easy Maintenance
An easy-access design simplifies maintenance.
Closed-loop DC Servo Technology
Spirit LS PRO laser engraver utilizes Closed-loop DC servo motor that delivers greater continuous shaft power at higher speeds than a stepper of the same frame size. In addition, It can also give far greater accuracy for laser engraving due to the continuous movement, instead of constant stopping and starting.
User Friendly Driver Interface
Starting from end users' view, GCC driver evolves into a brand new design with the intuitive interface to favor each user.
GCC LaserPro Piolas 400 Features Introduction
GCC LaserPro Piolas 400 Features Introduction
GCC Piolas 400 stands as the pinnacle of our technological advancements, boasting an unprecedented speed of 175ips. With innovative features like SmartEYES and live-view CCD, the operation is seamless and effortless. Elevate your artwork to new heights with GCC Piolas 400, delivering unmatched throughput and quality.
Products Overview & Specs
GCC LaserPro Laser Engraving and Cutting Machines│Product Overview & Specification - 2025
GCC LaserPro Laser Engraving and Cutting Machines│Product Overview & Specification - 2025
