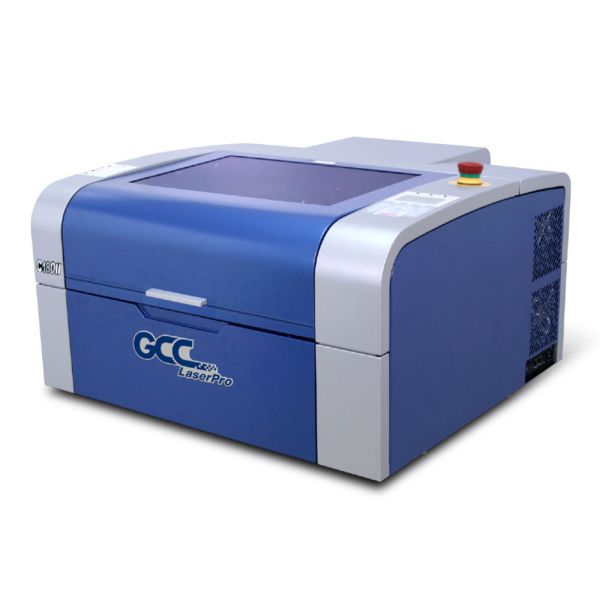

GCC Laser Engraver - C180 II LaserPro
Categories: Laser Machines , CNC & Laser Solutions , Laser Cutters & Engravers , Laser Cutters & Engravers , Workshop Equipment
The C180 II is an all purpose laser engraving system that delivers spectacular engraving and cutting results and makes every job a pleasant working experience.
Top Key Features
- Spacious 458 X 305 mm (18" x 12") working area
- Closed-loop DC servo motor for accurate and rapid movement
- Truelmage (patented) innovation produces exceptional engraving quality
- Open front door design for easy loading
Overview
The C180 II is an all purpose laser engraving system that delivers spectacular engraving and cutting results and makes every job a pleasant working experience.
Designed to provide an enjoyable engraving experience. Underneath the stylish exterior is a full 458 x 305 mm (18" x 12") working area. Engraving depth can be easily extended in less than a minute.
Key Features
- Spacious 458 X 305 mm (18" x 12") working area
- Closed-loop DC servo motor for accurate and rapid movement
- Truelmage (patented) innovation produces exceptional engraving quality
- Open front door design for easy loading
- Drag-N-Play user friendly feature - simply drag the laser to desired position to be engraved
- RoHS compliant & lead free
- Simple and intuitive control panel
- SmartPIN™ Autofocus (patented)
- Patented dust protection design
- Programmable origin designed to simplify complex tasks

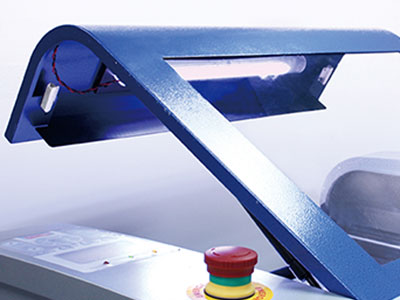

- Internal LED lighting

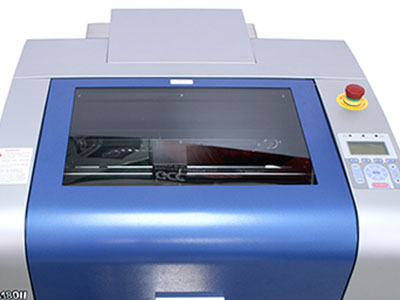

- Emergency stop button

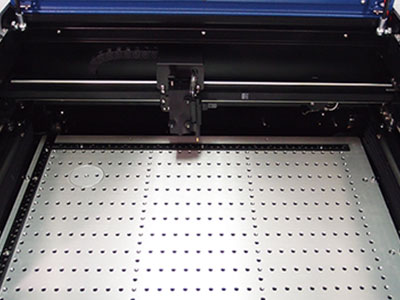

- Built in SmartBox™ to produce downward pulling force to keep light items in place
- 30W cuts through 10 mm thick acrylic with a single pass
- Pre-stored parameters setting database by material
- Side cover open for easier maintenance access

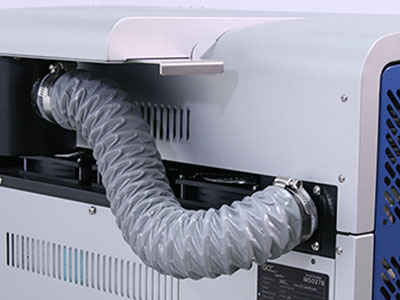

- Smart vacuum adjustment for top and bottom ventilation
- Bridge cutting function
Dimensions
Dimensions: | 780 x 740 x 410 mm |
---|---|
Work Area: | 458 x 305 mm |
Part Size: | 503 x 310 x 152.4 mm |
Technical Specifications
Computer Interface / Network: | 10 Base-T Ethernet, Full speed 2.0 USB |
---|---|
Display: | 4-line LCD display showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus |
Electrical: | 100-240VAC, 50-60Hz Auto Switching, Max 15A |

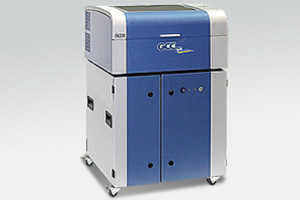

Extraction System: | External exhaust system with minimum flow rate 215m3/h (CFM 125 ft3/min) is required, 10kPA negative pressure (Purex GCC 400 @ 2”& 4” exhaust port) |
Safety: | Class I Laser Product Compliant with EN60825, Class II Laser Product Compliant with CDRH 2006/42/EC Machinery Directive Compliance |
Supported Material: | Leather, Signage, Metal, Acrylic, Stone/Tile, Textile apparel |
Accuracy: | 0.254 mm or 0.1% of move, whichever is greater |
Cooling: | Air-cooled |
Drive: | Closed-loop DC Servo Control |
Engraving Capability: | 256-level grey scale image processing capability |
Focus Lens: | Standard 2.0’, optional 1.5’ available |
Laser Source: | 12 to 40 Watt Sealed Co2 Laser |
Operating System: | MS Windows |
Power Control: | Adjustable from 0-100% (Up to 16 colour linked power settings per job) |
Resolution / DPI: | (DPI) Available: 125, 250, 300, 380, 500, 600, 760, 1000 |
Speed Control: | Adjustable from 0.1-100% (Up to 16 colour linked speed settings per job) |
Spindle Motor: | Speed: 40 IPS |
Throughput: | 1137 cm2 / hr (176.3 in2 / hr) |
Z-Axis: | Automatic |
