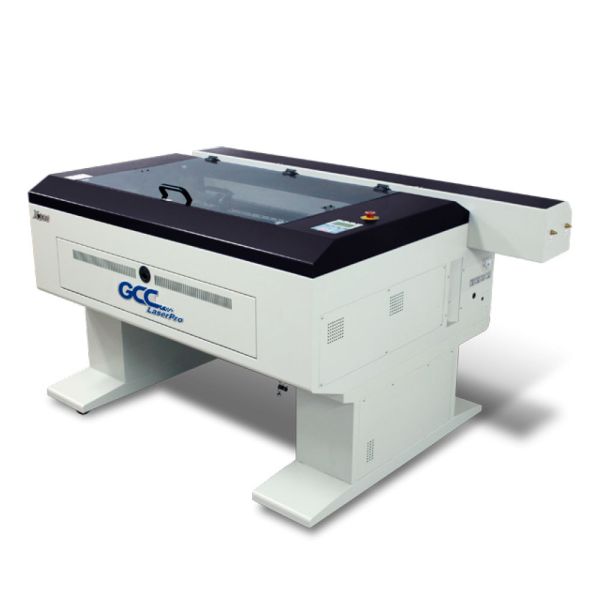

GCC Laser Engraver - X380

The GCC LaserPro X series offers an economical alternative for laser cutting and engraving.

Top Key Features

Easy to use control panel designed for simplifying tasks
Programmable Origin where position modes allow effortless setup
960 mm x 610 mm working area
RoHS compliant and lead free

Enquire

Details

Overview

The GCC LaserPro X series offers an economical alternative for laser cutting and engraving.

This series is equipped with a dependable sealed CO2 laser which offers a reliable source of laser power for mass production requirements. GCC LaserPro users always have an edge over the others with numerous uniquely innovative and user friendly features.

Key Features

Easy to use control panel designed for simplifying tasks
Programmable Origin where position modes allow effortless setup
960 mm x 610 mm working area
RoHS compliant and lead free
Closed-loop DC servo control for precise and rapid movement of the laser carriage
Reliable DC excited CO2 laser

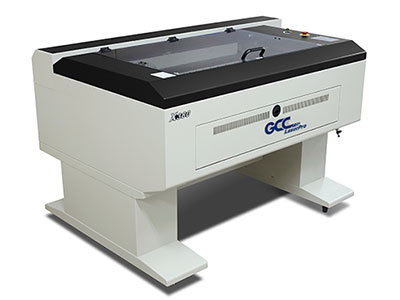

Rigid and reliable construction for superior output quality and motion stability

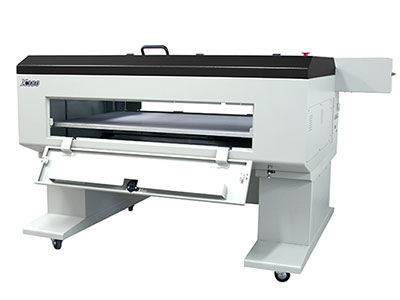

Pass-through doors for cutting of oversized objects
Uniquely innovative user-friendly features
Superb cutting quality capable of various cutting applications with excellent cutting edges
Emergency stop button

Specifications

Dimensions

Dimensions:	1800 x 1092 x 1017 mm
Work Area:	960 x 610 mm

Technical Specifications

Computer Interface / Network:	10 Base-T Ethernet, Full speed 2.0 USB
Display:	4-line LCD display showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus
Electrical:	200-240VAC, 50/60Hz Auto Switching, MAX 8A
Extraction System:	xternal exhaust system with minimum flow rate 800m3/h (CFM 471 ft3/min) is required, 2.3kPA negative pressure (Pure-Air PA-1500FS @ 4” & 8” exhaust port)
Safety:	lass I Laser Product Compliant with EN60825, Class II Laser Product Compliant with CDRH, 2006/42/EC Machinery Directive Compliance Class 4 Laser Product Compliant with CDRH with the optional pass-through door modul
Speed:	Cutting speed: 40 IPS* (max)
Supported Material:	Leather, MDF, Stone/tile, Textile apparel, Wood cutting, Acrylic
Cooling:	Water Cooled
Distance:	0.254 mm or 0.1% of move, whichever is greater
Drive:	Closed-loop DC Servo Control
Engraving Capability:	256-level grey scale image processing capability
Focus Lens:	Standard 2.0", optional 1.5", 3"
Laser Source:	80 - 100W, Sealed CO2 Laser
Operating System:	MS Windows
Power Control:	Adjustable from 0-100% (Up to 16 colour linked power settings per job)
Resolution / DPI:	(DPI) Available: 125, 250, 500, 1000
Speed Control:	Adjustable from 0.1-100% (Up to 16 colour linked speed settings per job)
Water Chiller:	External water chiller required
Z-Axis:	Automatic
