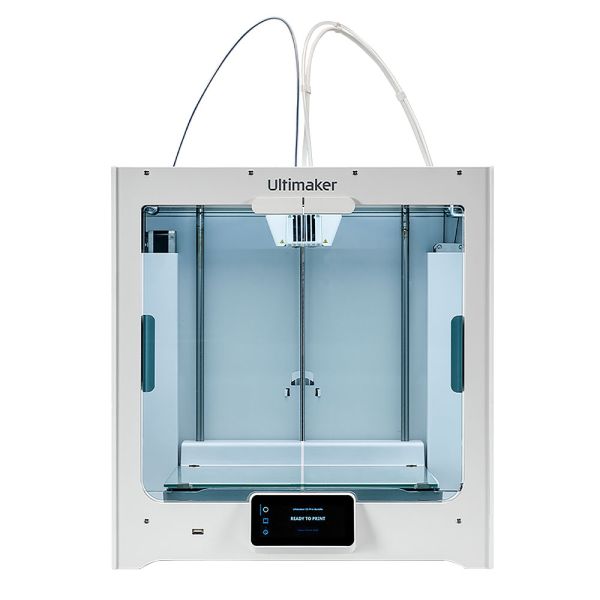

3D Printer - Ultimaker S5

Easily 3D print larger parts with world-leading material compatibility, an award-winning touch interface, and filament run-out detection.

Top Key Features

  • Flexible easy to use platform
  • Large build volume for maximum efficiency
  • Wi-fi and ethernet capabilities
  • CuraConnect to monitor and manage prints
  • Intuitive touchscreen interface for easy configuration

Overview

Easily 3D print larger parts with world-leading material compatibility, an award-winning touch interface, and filament run-out detection.

The S5 is a reliable, versatile and easy to use desktop 3D printer. Engineered for printing prototypes, manufacturing aids and end-use parts. The S5 has a large build volume allowing for bigger models and maximum efficiency.

Built around seamless integration of hardware, software and materials configuration to ensure repeatable, high-quality print and efficient workflow.

Key Features

  • Flexible easy to use platform
    Large build volume for maximum efficiency
    Wi-fi and ethernet capabilities
    CuraConnect to monitor and manage prints
    Intuitive touchscreen interface for easy configuration
    2 Build plate options: glass and anodized aluminum
    Active detailed bed leveling system
    Dual extrusion technology for reliability
    Material matching print cores
    NFC-enabled filament spool for quick changes and high up time
    Open filament system to allow a wide range of materials
    Filament run-out sensor - to stay  informed when filament runs out to increase print success

Dimensions

Dimensions:495 x 585 x 780 mm
Weight (Net):20.6 kg
Build Volume:330 x 240 x 300 mm

Technical Specifications

Connectivity:Wi-Fi, Ethernet, USB
Display:4.7 inch colour Touchscreen
Electrical:

Max power output: 500 W

Features:

Swappable print cores

Speed:<24 mm3/s
Build Plate:

Build plate leveling: Advanced active leveling

Build plate: 20-140°C headed glass build plate

Build plate heat-up time: < 4 min (from 20 to 60°C)

Feeder Type:Dual-geared feeder, reinforced for composite materials
Filament:

Compatible filament diameter: 2.85 mm



File Type:

Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG

Printable formats: G, GCODE, GCODE.gz, UFP

Layer:

Layer resolution:

0.25 mm nozzle: 150 - 60 micron

0.4 mm nozzle: 200 - 20 micron

0.6 mm nozzle: 300 - 20 micron

0.8 mm nozzle: 600 - 20 micron

Nozzle Diameter:0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
Nozzle Heat-up Time:< 2 minutes
Nozzle Temperature:180 - 280°C
Operating System:MacOS, Windows, Linux
Pring Head:

Dual extrusion print head with an auto-nozzle lifting system and swappable print cores

Print Technology:Fused Filament Fabrication (FFF)
Software:

Ultimaker Cura  – print preparation software

Ultimaker Digital Factory – printer management software

Plugin integration    SolidWorks, Siemens NX, Autodesk Inventor

XYZ Step Size:6.9, 6.9, 2.5 micron
