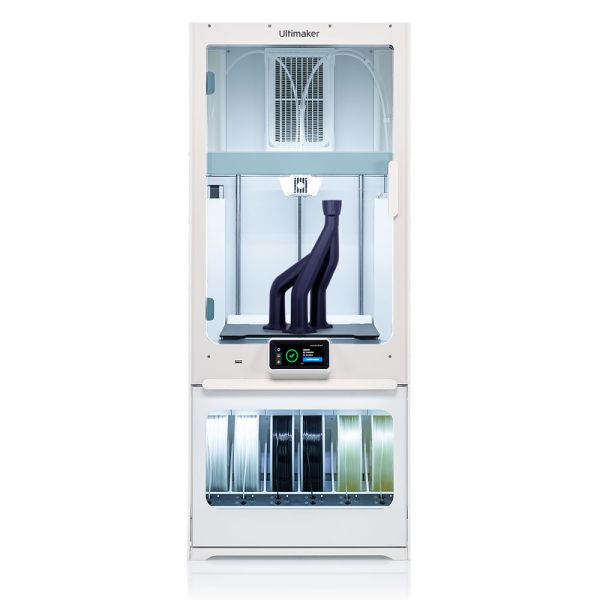

3D Printer - Ultimaker S7 Pro
Transform the UltiMaker S7 into a manufacturing powerhouse. With 3x the material capacity. Automated filament handling as well as humiditycontrolled storage.
Top Key Features
- Easy front-loading for 6 spools
- Stored at 40% relative humidity
- Automatic material switching
- Compatible with 190+ filaments
- Ultra low maintenance material station
Overview
Transform the UltiMaker S7 into a manufacturing powerhouse. With 3x the material capacity. Automated filament handling as well as humiditycontrolled storage.
Designed for ultra-low maintenance and tested to be left unattended, the Material Station allows the UltiMaker S7 to print longer – day or night. Loading material into the Material Station takes seconds – not minutes. Simply open the door and drop the spool into a bay. During a print, any spool not in use can be switched out.
Each of the Material Station’s material bays have NFC readers and reinforced prefeeders for integration with UltiMaker Cura and Digital Factory. Every spool is kept at 40% relative humidity, making it easy to realize more 3D printing applications with almost any combination of polymers and abrasive composites
Key Features
- Easy front-loading for 6 spools
- Stored at 40% relative humidity
- Automatic material switching
- Compatible with 190+ filaments
- Ultra low maintenance material station
- Integrated air manager removes 95% particles
- Flexible build plate
- Inductive sensor for less noise & more accuracy
- Cura integration to speed up workflow
- Backwards file compatibility
- Anti-flood sensor
- 1080p camera to monitor print in high rez
- 2.4 and 5GHz Wi-Fi
- Future proof investment
Dimensions
Width: | 495 mm |
---|---|
Height: | 1190mm |
Depth: | 500 mm |
Weight (Net): | 46.7 kg |
Build Volume: | 330 x 240 x 300 mm |
Technical Specifications
Connectivity: | Wi-Fi (2.4 & 5GHz), Ethernet, USB |
---|---|
Display: | 4.7 inch colour Touchscreen |
Features: | Swappable print cores |
Noise Level: | < 51 dBA |
Build Plate: | Build plate: PEI-coated flexible steel build plate |
Feeder Type: | Dual-geared feeder, reinforced for composite materials |
Filament: | Compatible filament diameter: 2.85 mm |
File Type: | Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP |
Filter: | Replaceable EPA filter |
Layer: | Layer resolution: 0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron |
Nozzle Diameter: | 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm |
Nozzle Heat-up Time: | < 2 minutes |
Nozzle Temperature: | 180 - 280°C |
Operating System: | MacOS, Windows, Linux |
Pring Head: | Dual extrusion print head with an auto-nozzle lifting system and swappable print cores and flood detection |
Print Technology: | Fused Filament Fabrication (FFF) |
Software: | Ultimaker Cura: print preparation software Ultimaker Digital Factory: printer management software Plugin integration: SolidWorks, Siemens NX, Autodesk Inventor |
Spool: | Compatible spools:
Width: 50 - 70 mm Outer diameter: 197 - 203 mm Core diameter: > 98 mm |
XYZ Step Size: | 6.9, 6.9, 2.5 micron |
