3D Printer - Ultimaker S5 Pro
Unlock easy, always-on 3D printing with automatic material handling, efficient air filtering, and filament humidity control.Â
Top Key Features
- 24/7 Capacity always on productivity
- Composite-ready dual extrusion
- Humidity-controlled storage for 6 spools
- Filter up to 95% of ultrafine particles
Overview
Unlock easy, always-on 3D printing with automatic material handling, efficient air filtering, and filament humidity control.Â

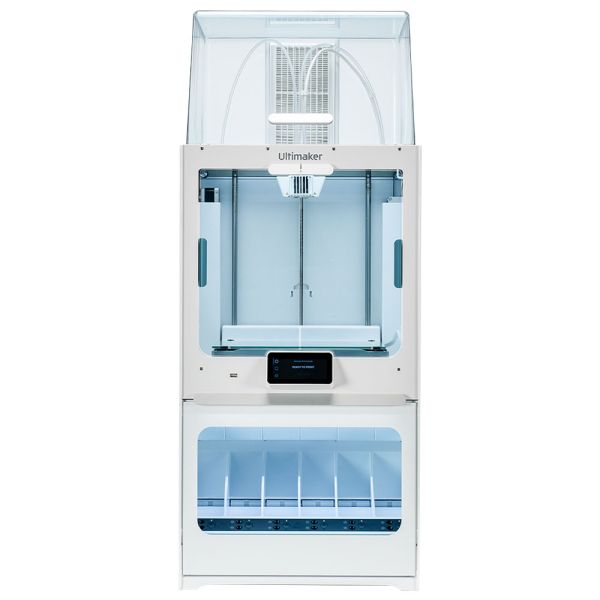

The Ultimaker S5 Pro Bundle is a unique  combination of the Ultimaker S5, Ultimaker S5 Air Manager, and the Ultimaker S5 Material Station, which operate together to deliver always-on production.
The combination of products that, together, solve your every material handling concern. A market leading high build volume 3D printer that stands securely on the material station - the first of its kind in the world.Â
A humidity-controlled enclosure enable continuous single or dual extrusion housing up to 4.5kg of any filament including glass or carbon fiber composites
Key Features
- 24/7 Capacity always on productivity
Composite-ready dual extrusion
Humidity-controlled storage for 6 spools
Filter up to 95% of ultrafine particles
Compatible with over 90 materials
Flexible for more applications
Seamless integration with zero hassle
High build volume
Automatic material switching to detect if a spool runs out and to loads the next
Combination of 3 components: Material Station, S5 3D Printer and Air manager
Dimensions
Dimensions: | 495 x 500 x 1197 mm |
---|---|
Weight (Net): | 41.9 kg |
Build Volume: | 330 x 240 x 300 mm |
Technical Specifications
Connectivity: | Wi-Fi, Ethernet, USB |
---|---|
Display: | 4.7 inch colour Touchscreen |
Electrical: | Power input: 100-240 VAC, 50-60 Hz Power output: 600W |
Features: | Swappable print cores Filter efficiency: Up to 95% Material capacity: 6 spools |
Extraction System: | Air extraction rate: 1-50 m3/h |
Noise Level: | < 51 dBA |
Feeder Type: | Dual-geared feeder, reinforced for composite materials |
File Type: | Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP |
Filter: | Replaceable EPA filter |
Layer: | Layer resolution: 0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron |
Nozzle Diameter: | 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm |
Operating System: | MacOS, Windows, Linux |
Pring Head: | Dual extrusion print head with an auto-nozzle lifting system and swappable print cores |
Print Technology: | Fused Filament Fabrication (FFF) |
Software: | Ultimaker Cura – print preparation software Ultimaker Digital Factory – printer management software Plugins: SolidWorks, Siemens NX, Autodesk Inventor |
Spool: | Material capacity: 6 spools Width: 50 - 70 mm Diameter: 197 - 203 mm Core diameter: > 98 mm |
XYZ Step Size: | 6.9, 6.9, 2.5 micron |
