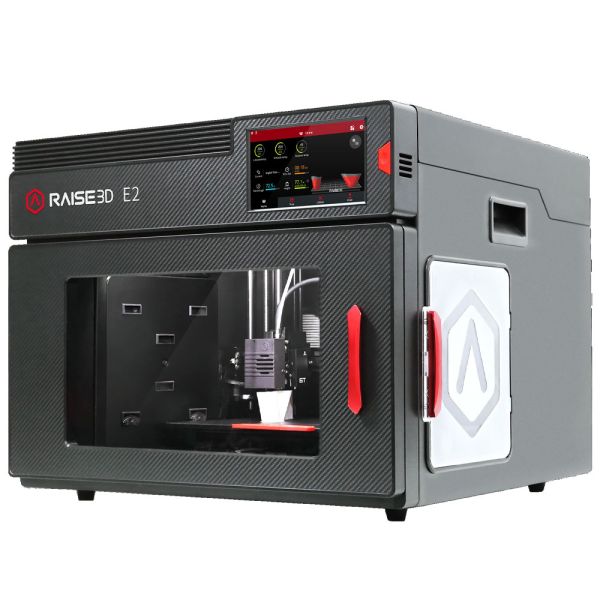

Raise 3D Printer - E2

The E2 is a multi-purpose, easy to use industrial-grade 3D printer with independent dual extruders (also known as IDEX). IDEX gives the E2 the ability to perform more advanced functions, such as Mirror Mode and Duplication Mode, making this printer ideal for professional 3D printing.

Top Key Features

  • Easy to use and durable
  • Mirror Mode for increased productivity
  • Duplication Mode doubles production capabilities
  • Auto bed levelling

Overview

The E2 is a multi-purpose, easy to use industrial-grade 3D printer with independent dual extruders (also known as IDEX). IDEX gives the E2 the ability to perform more advanced functions, such as Mirror Mode and Duplication Mode, making this printer ideal for professional 3D printing.

This IDEX 3D printer features Easy Swap Print Heads for added convenience when performing maintenance or routine printing tasks. The E2’s Auto Bed Leveling and BuildTak FlexPlate are user-friendly features that contribute to producing high-quality 3D-printed parts.

This desktop 3D printer can print with a variety of different filaments, and its unique extruder gear design enables it to use flexible 3D printing materials, such as TPU, more reliably and with better results.

As with all 3D printers from Raise3D, the E2 can pair with ideaMaker, a 3D slicer software, ideaMaker Library, a platform for sharing 3D printer files with those in the Raise3D community, and RaiseCloud, a cloud-based 3D printing management platform.

Key Features

  • Easy to use and durable
  • Mirror Mode for increased productivity
  • Duplication Mode doubles production capabilities
  • Auto bed levelling
  • Industry first video assisted offset calibration system
  • Power saving button
  • Flexible build plate
  • Variety of material compatibility
  • HEPA filter for reduce emissions from printing
  • Filament sensor camera for instant pause

Dimensions

Width:607 mm
Height:465 mm
Depth:596 mm
Weight (Net):35 kg
Build Volume:Build volume single extruder: w330×d240×h240 mm, Dual extruder w295×d240×h240 mm

Technical Specifications

Certification:CB, CE, FCC, RoHS, RCM
Computer Interface / Network:Wi-Fi, USB 2.0*2, Ethernet*1
Connectivity:Wi-Fi, LAN, USB port, Live camera
Display:7 inch touch screen (1024 x 600)
Electrical:

Power supply input: 100-240 V AC, 50/ 60 Hz 230 V @ 2 A

Power supply output:  24 V DC, 350 W

Features:

Power loss recovery

Memory: 1GB

Onboard Flash: 8GB

Noise Level:Noise emission (Acoustic: <50 dB(A) when building
Supported Material:PLA/ ABS/ HIPS/ PC/ TPU/ TPE/ PETG/ ASA/ PP/ PVA/ Nylon/ Glass Fiber Infused/ Carbon Fiber Infused/ Metal Fill/ Wood Fill
Build Plate:

Build plate: Flexible Steel Plate with Buildtak

Max build plate temp: 110°C

Build plate leveling: Mesh-leveling with Flatness Detection

Controller / Electronics:

Motion Controller: Atmel ARM Cortex-M4 120MHz FPU


Logic Controller:  NXP ARM Cortex-A9 Quad 1 GHz

Filament:

Diameter: 1.75 mm

Filament run-out sensor: Available

Filter:HEPA filter with activated charcoal
Hot End:V3P (V3 hotend with PTFE version)
Layer:Layer height: 0.02 - 0.25 mm
Nozzle Diameter:0.4 mm (0.2/ 0.6/ 0.8/ 1.0 mm-Available)
Nozzle Temperature:300°C
Operating System:Embedded Linux
Pring Head:

System: IDEX Independent Dual Extruders

Travel speed: 30-150 mm/s

Software:

Slicing Software: ideaMaker

Supported File Types: STL/ OBJ/ 3MF

Supported OS: Windows/ macOS/ Linux

File type: GCODE
