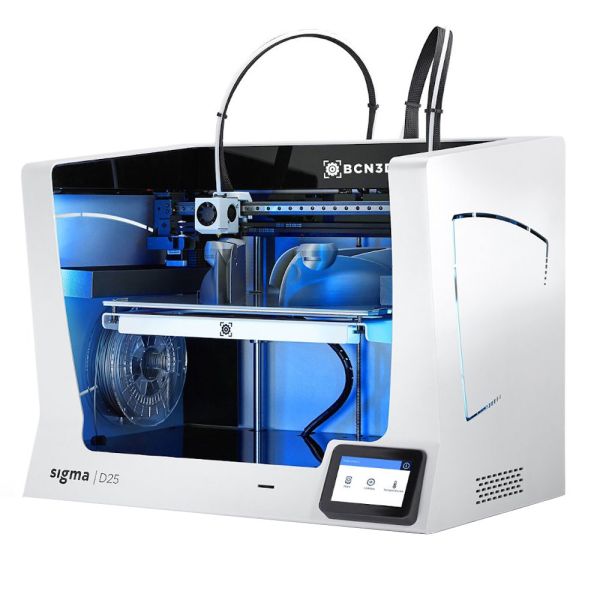

Sigma 3D Printer - BCN3D D25

Discover a new generation of our best-known 3D printer, engineered to grant maximum productivity through a hassle-free experience thanks to features like its massive print volume and full connectivity. Powered by our Independent Dual Extruder (IDEX) system, the Sigma D25 delivers functional prototypes quickly with quality and precision.

Top Key Features

  • Massive print volume 430x300x200
  • Sturdy aluminum frame
  • Full connectivity for offline/online printing
  • Bondtech(TM) high-tech dual drive gears for more control, sharper details & superior performance
  • FFF Technology (Fused Filamen

Overview

Discover a new generation of our best-known 3D printer, engineered to grant maximum productivity through a hassle-free experience thanks to features like its massive print volume and full connectivity. Powered by our Independent Dual Extruder (IDEX) system, the Sigma D25 delivers functional prototypes quickly with quality and precision.

The Sigma D25 is equipped with the latest connectivity features. Easily send your print files when connected to the network for a hassle-free workflow. And forget about manual firmware upgrades thanks to Over The Air (OTA) updates, to ensure that your printer is always up to date (activated on demand).

An in-house desktop 3D printer is a revolutionary teaching tool for education. It encourages creativity and exposes students to professional tools used by a wide range of industries, which prepares them for the coming future.

Key Features

  • Massive print volume 430x300x200
  • Sturdy aluminum frame
  • Full connectivity for offline/online printing
  • Bondtech(TM) high-tech dual drive gears for more control, sharper details & superior performance
  • FFF Technology (Fused Filament Fabrication)
  • Various print modes
  • IDEX (Independent Dual Extruder System) Architecture
  • Open filament system for PLA, PVA, PET-G & TPU 98A
  • Multilingual 5” touchscreen
  • Filament runout sensor safety feature
  • Hotends designed to deliver smooth, reliable extrusions

Dimensions

Dimensions:690 x 530 x 550 mm (720 bowden)
Weight (Net):30kg - (38 kg)
Build Volume:420 x 300 x 200 mm

Technical Specifications

Certification:CE / FCC
Connectivity:Offline: SD card, Online: WiFi or Ethernet (BCN3D Cloud)
Display:5” full color capacitive touchscreen
Electrical:

Input: AC 84-240V, AC 3,6-1,3A, 50-60Hz

Power consumption    650W

Noise Level:49 dB(A)
Supported Material:PLA, Tough PLA, PET-G, TPU 98A, PVA
Warranty:2 years (EU), 1 year (non-EU)
Controller / Electronics:Single Board Computer: Toradex ARM Compute Module Motion Board: BCN3D Electronics with Independent Stepper Drivers
Extruder:

Extruder BondtechTM high-tech dual drive gears, Hotends optimized

Extruder max temp        300 ºC

Filament:

Filament diameter: 2,85 ± 0,05 mm

Open filament system

File Type:

Supported files: STL, 3MF, OBJ, AMF, DAE, ZAE, CTM, PLY, X3D, GLB, GLTF, *.gcode

Heated Bed:

Silicone thermal pad

80 ºC Max temp

Layer:

Recommended profiles:

Layer height: 0,2mm | 0,3mm | 0,4mm  (depending on nozzle diameter)

Layer height 0,05mm - 0,5mm (custom profiles)

Nozzle Diameter:Brass nozzle: 0,4mm (default) | 0,8mm
Operating System:Windows, Mac, Linux
Pring Head:Independent Dual EXtruder (IDEX)
Printing Mode/s:

Single mode, Duplication mode

Mirror mode, Multimaterial mode

Soluble Supports mode

Print Technology:Fused Filament Fabrication (FFF)
Software:BCN3D Stratos
XYZ Step Size:Positioning resolution (X / Y / Z): 1,25μm / 1,25μm / 1μm
