Double Brazing hearth - DS400D

The DS400D is identical to the DS400S single brazing hearth but with an additional work position. The brazing unit is supplied with 2 easy-to-use single valve controlled RF80 torches which allows for one handed operation.

Top Key Features

  • Asbestos free heat resistant refractory hearth, side and rear heat shields
  • Colour coded reinforced gas air hoses
  • Requires manual restart after power failure
  • Push button no volt release starter
  • 10 Heat reflective blocks
  • UK Manufactured

Overview

The DS400D is identical to the DS400S single brazing hearth but with an additional work position. The brazing unit is supplied with 2 easy-to-use single valve controlled RF80 torches which allows for one handed operation. The DS400D is supplied with a solid refractory hearth with robust side, central and rear heat shields.

The unit complies with British Gas standards and is a fully fail safe system. All sequences are visually displayed using neon indicators. On start-up the gas train, hoses and torches are tested for escaping gas. Leaks from any component will result in a continuously illuminated red neon and the main flow of gas will be prevented from entering the system.

Key Features

  • Asbestos free heat resistant refractory hearth, side, central and rear heat shields
  • Colour coded reinforced gas and air hoses
  • Requires manual restart after power failure
  • Push button no volt release starter
  • 10 Heat reflective blocks
  • x2 RF80 brazing torches
  • Whisper quiet air blower fan
  • Push button electronic ignition
  • Auto gas leak proving system on start up
  • Indicator status lights
  • Gas non-return valve
  • Main & additional station
  • Operating/Instruction manual
  • UK Manufactured

Dimensions

Width:1500 mm
Height:1195 mm (overall)
Depth:700 mm
Weight (Net):215kg
Weight (Gross):215 kg
Height with Canopy:1800 mm

Technical Specifications

Electrical:120 Watts - 220-240 Volt single phase
Features:

Asbestos Free, heat resistant, refractory hearth

Side central and rear heat shield

Push button electronic ignition

Extraction System:Varivac extraction system
Noise Level:Whisper quiet air blower fan
Safety:

Units must be installed & commissioned by Flamefast qualified engineers.

Push button no volt release starter

Manual restart after power failure

Colour coded reinforced gas and air hoses

Warranty:2 Years

PLEASE STATE GAS TYPE WHEN ORDERING

IMPORTANT NOTICE: ACCORDING TO THE HEALTH & SAFETY AT WORK ACT 1974, BS 4163 AND COSHH REGULATIONS IT IS MANDATORY THAT ALL FUMES MUST BE REMOVED AT SOURCE.

Performance

Forging Performance

Gas TypeRateBTU / HRSkWPressure
Natural gas4.36 m3/h160,00046.920 mbar
Propane3.3 kg/h160,00046.935 mbar
Butane3.39 kg/h160,00046.928 mbar
Electrics120 Watts - 220-240 volt single phase



Standard Equipment

  • RF10 Fine jewellery torch
  • 300mm revolving brazing table
  • *Fume extraction to meet HSG258 regulations

Optional Equipment

  • RF10 Fine jewellery torch
  • 300mm revolving brazing table
  • *Fume extraction to meet HSG258 regulations

Varivac System

The Varivac’s unique fume intake configuration captures all fumes and prevents any spillage. An electrical interlock prevents the use of linked equipment before the Varivac is switched ON. It can be fitted to existing equipment if required with a choice of low level or high rise exhaust outlets.

To Fit Varivac Extraction:

Place Varivac canopy around the outer rear top of the Ceramic Chip Forge and bolt through the corresponding holes in both units.

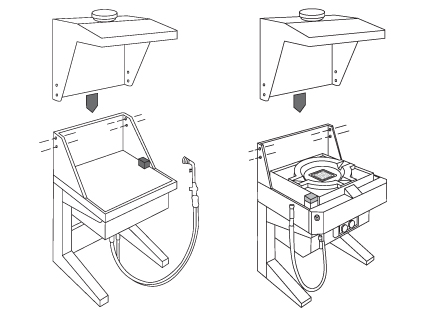

VarivacInstall_Illustration
