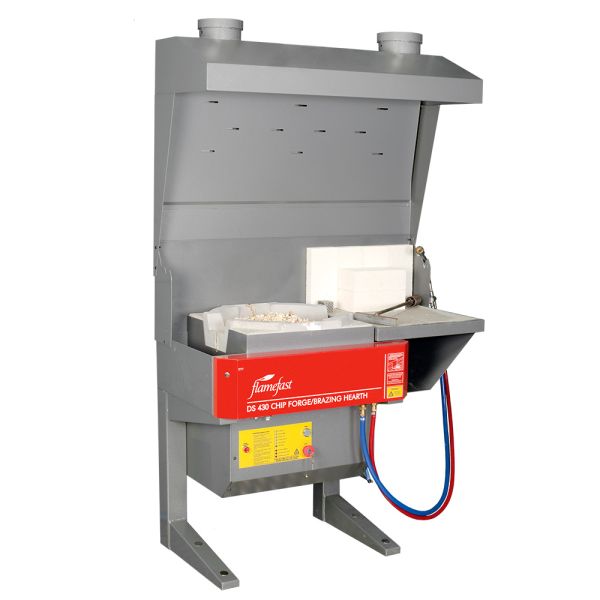

Chip Forge & Brazing Hearth - DS430S
The DS430S complies with British Gas Standards and is a fully fail safe system. All sequences of operation are visually displayed using neon indicators.
*Canopy & extraction optional , does not come as part of unit
Top Key Features
- Especially useful where space limitations are a consideration
- Unit consists of a ceramic chip forge and a single brazing hearth
- Can be run on either Natural Gas or LPG bottled gas
- Produces a clean and consistent heat
- Easy to use especially for beginners
- UK Manufactured
Overview
The Flamefast DS430S complies with British Gas Standards and is a fully fail safe system. All sequences of operation are visually displayed using neon indicators. On start-up the gas train, hoses and torches are tested for escaping gas. Leaks from any component will result in a continuously illuminated red neon and the main flow of gas will be prevented from entering the system.
Key Features
- Especially useful where space limitations are a consideration
- Unit consists of a ceramic chip forge and a single brazing hearth usually equipped with a Flamefast RF80 brazing torch
- Can be run on either Natural Gas or LPG bottled gas
- Can reach heats of 1200°C in under 10 min - ideal for forge/fire welding
- Produces a clean and consistent heat
- Easy to use especially for beginners
- Optional extras available
- UK Manufactured
Dimensions
| Width: | 1040 mm |
|---|---|
| Height: | 1080 mm |
| Depth: | 550 mm |
| Weight (Gross): | 100 kg |
| Height with Canopy: | 1800 mm |
Technical Specifications
| Electrical: | 120 Watts - 220-240 volt single phase |
|---|---|
| Extraction System: | Varivac Extraction System |
| Safety: | IMPORTANT: Fume Extraction is mandatory as per HSG258 / COSHH regulation. Please contact us for advice and cost. |
| Warranty: | 2 Years |
PLEASE STATE GAS TYPE WHEN ORDERING
IMPORTANT NOTICE: ACCORDING TO THE HEALTH & SAFETY AT WORK ACT 1974, BS 4163 AND COSHH REGULATIONS IT IS MANDATORY THAT ALL FUMES MUST BE REMOVED AT SOURCE.
Performance
Forging Performance
| Gas Type | Rate | BTU / HRS | kW |
| Natural gas | 2.3 m3/h | 85 000 | 24.9 |
| Propane | 1.8 kg/h | 85 000 | 24.9 |
| Butane | 1.8 kg/h | 85 000 | 24.9 |
Â
Brazing Performance
| Gas Type | Rate | BTU / HRS | kW |
| Natural gas | 2.18 m3/h | 80 000 | 23.5 |
| Propane | 1.66 kg/h | 80 000 | 23.5 |
| Butane | 1.70 kg/h | 80 000 | 23.5 |
Â
Total Gas Performance
| Gas Type | Rate | BTU / HRS | kW | Pressure |
| Natural gas | 4.48m3/h | 165 000 | 48.4 | 20 mbar |
| Propane | 3.46 kg/h | 165 000 | 48.4 | 35 mbar |
| Butane | 3.5 kg/h | 165 000 | 48.4 | 28 mbar |
Â
Standard Equipment - Forging
- Push-button no volt release starter
- Ceramic hearth
- Automatic safety check of controls and air fan
- Full manual control of hearth conditions
- Whisper quiet air blower fan
- Indicator status light
- Gas non-return valve
- 12.5 kg of ceramic chippings
- Operation/Instruction manual
- Side and rear heat shield
- Rake Iron
Standard Equipment - Brazing
- 1 asbestos-free heat resistant refractory hearths
- 2 full size Heat Reflective Blocks
- 4 half size Heat Reflective Blocks
- Push-button no-volt release starter
- 1 RF80 brazing torches
- Colour coded reinforced gas and air hoses
- Whisper quiet air blower fan
- Push button electronic ignition
- Auto gas leak proving system on start up
- Indicator status lights
- Gas non-return valve
- Operation/Instruction manual
Optional Extras
- RF10 fine jewellery torch
- 300mm revolving brazing table
- Brazing Kit
- *Fume extraction to meet HSG258 regulations
*Fume extraction is mandatory as per HSG258/ COSHH regulations. Please contact us for advice and cost
Varivac Extraction
The Varivac’s unique fume intake configuration captures all fumes and prevents any spillage. An electrical interlock prevents the use of linked equipment before the Varivac is switched ON.
Â
It can be fitted to existing equipment if required with a choice of low level or high rise exhaust outlets.
Â
To fit Varivac Extraction Place Varivac canopy around the outer rear top of the unit and bolt through the corresponding holes.
-
