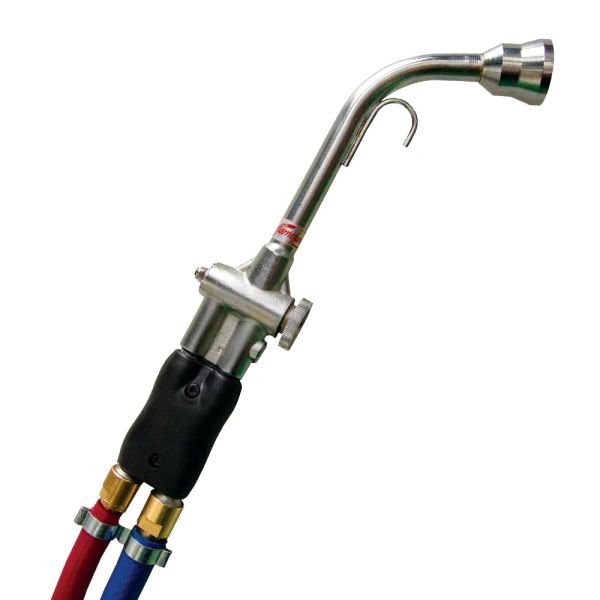

Flamefast Gas Torches - RF10 & RF80

A range of single hand operated soldering and brazing torches developed for fine jewellery used in conjuction with Flamefast blower fan.

Top Key Features

  • Parking hook, & Screwed connection for flexible hoses
  • Ideal for fine jewellery (RF10) and heavy brazing (RF80)
  • Plastic hand grip
  • Work piece cooling by rapid air blast
  • A choice of models for natural or bottled gas
  • Thumb wheel for one handed adjustment
  • UK Manufactured

Overview

A range of single hand operated soldering and brazing torches developed for fine jewellery and heavy brazing.

The Flamefast RF range of Gas/Air torches are constructed from chrome plated brass with a heat resistant steel burner head ensuring long and reliable service.

Two torches are available, the RF80 which is designed for heavy brazing and the RF10 which is smaller in size with a heat output ideal for fine jewellery.

Key Features

  • Parking hook & Screw connection for flexible hoses
  • Ideal for fine jewellery (RF10) and heavy brazing (RF80)
  • Plastic hand grip
  • Work piece cooling by rapid air blast
  • A choice of models for natural or bottled gas
  • Thumb wheel for one handed adjustment
  • Convenient to use
  • Built in balance and position of controls enables effortless single handed operation
  • Instantaneous adjustment of flame size, shape and intensity over the full range is achieved by a single rotary control valve
  • UK Manufactured

Dimensions

Weight (Gross):RF10: 0.25 kg - RF80: 0.6 kg
RF_Dims

Technical Specifications

Features:Air Supply: 9MS8 whisper quiet blower fan
Frame Material:Plastic hand grip
Safety:Use only the gas pressure recommended by Flamefast
Do not use propane or butane at hight pressure
Make sure a fixed pressure regulator is used, available from Flamefast
Always have a non-return valve fitted to both gas and air lines. (available from Flamefast)
Appropriate PPE must be warn at all times when operating equipment
Warranty:2 Years

PLEASE STATE GAS TYPE WHEN ORDERING

IMPORTANT NOTICE: ACCORDING TO THE HEALTH & SAFETY AT WORK ACT 1974, BS 4163 AND COSHH REGULATIONS IT IS MANDATORY THAT ALL FUMES MUST BE REMOVED AT SOURCE.

Performance

Performance

Gas TypePressure
Natural gas20 mbar
Propane35 mbar
Butane28 mbar



Gas Consumption

ModelN.G m<sup>3</sup>/HLPG KG/HBTU/HKW
RF100.270.2110 0002.93
RF802.21.680 00023.5



Optional Extras

  • Gas and air colour coded hoses
  • Carton of 10 heat reflective blocks
  • 300mm revolving brazing table
  • Gas and air non-return valves
  • *Fume extraction to meet the requirements of COSHH Regulations

*Fume extraction is mandatory as per HSG258/ COSHH regulations. Please contact us for advice and cost

Part Numbers

50TRC-A20 NGRF10 Natural Gas
50TRC-A20 LGRF10 LPG
50TRC-A21 NGRF80 Natural Gas
50TRC-A21 LGRF80 LPG
