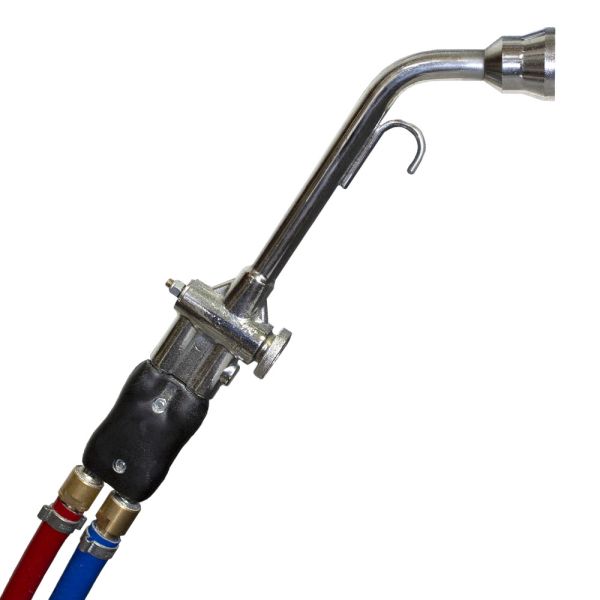

Gas Torches - T2 & T4
Two torches are available, the T4 which is designed for heavy brazing and the T2 which is smaller in size with a heat output for more delicate work.
Top Key Features
- Parking hook, & Screwed connection for flexible hoses
- Work piece cooling by rapid air blast
- A choice of models for natural or bottled gas
- Easy and convenient to use
Overview
Two torches are available, the T4 which is designed for heavy brazing and the T2 which is smaller in size with a heat output for more delicate work.
The torches are designed to work with an air supply pressure regulated at 4 lbs/in2 - 270 mbar. The Flamefast T-range of Gas/Air torches is constructed from chrome plated brass with a heat resistant steel burner head ensuring long and reliable service.
Developed to give a wide range of flames at the turn of a valve. Ideal for brazing, soldering, metal melting, heat treatment, glass, lead and tinning work.Â
Key Features
- Parking hook, & Screwed connection for flexible hoses
- Work piece cooling by rapid air blast
- A choice of models for natural or bottled gas
- Easy and convenient to use
- Plastic hand grip & thumb wheel for one handed adjustment
- Built in balance and position of controls enables effortless single handed operation
- Instantaneous adjustment of flame size, shape and intensity over the full range is achieved by a single rotary control valve
Dimensions
Weight (Net): | T2: 0.25 kg - T4: 0.6 kg |
---|---|
Weight (Gross): | T2: 0.25 kg - T4: 0.6 kg |
Technical Specifications
Features: | Compressed air supply |
---|---|
Frame Material: | Plastic hand grip |
Safety: | If the air supply is delivered by an air compressor, a non-return valve and pressure gauge must be fitted in the air line. IMPORTANT: Fume Extraction is mandatory as per HSG258 / COSHH regulation. Please contact us for advice and cost. |
Warranty: | 2 Years |
PLEASE STATE GAS TYPE WHEN ORDERING
IMPORTANT NOTICE: ACCORDING TO THE HEALTH & SAFETY AT WORK ACT 1974, BS 4163 AND COSHH REGULATIONS IT IS MANDATORY THAT ALL FUMES MUST BE REMOVED AT SOURCE.
Performance
Forging Performance
Gas Type | Pressure | Â | Â | Â |
Natural gas | 20 mbar | Â | Â | Â |
Propane | 35 mbar | Â | Â | Â |
Butane | 28 mbar | Â | Â | Â |
Â
Optional Extras
- Gas and air colour coded hoses
- Carton of 10 heat reflective blocks
- 300mm revolving brazing table
- Gas and air non-return valves
- *Fume extraction equipment that meets COSHH Regulations
*Fume extraction is mandatory as per HSG258/ COSHH regulations. Please contact us for advice and cost
Part Numbers
50TRC-A24 NG | T2 Natural Gas |
50TRC-A24 LG | T2 LPG |
50TRC-A22 NG | T4 Natural Gas |
50TRC-A22 LG | T4 LPG |
