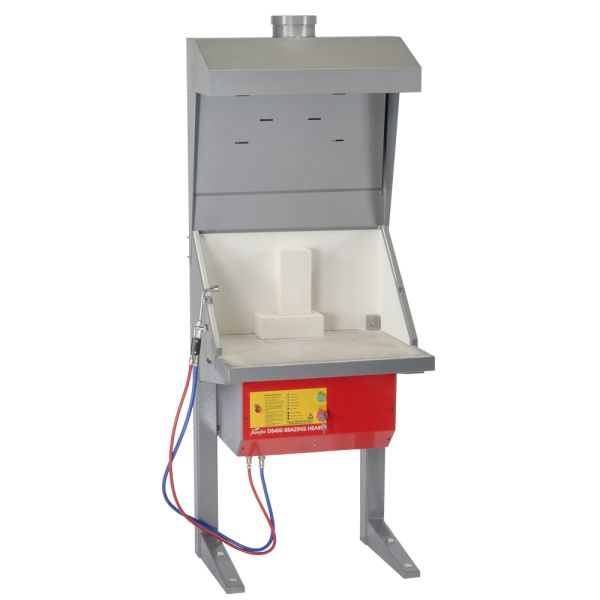

Brazing Hearth Single - DS400S
The DS400S is supplied with an easy-to-use single valve controlled RF80 torch which allows one-hand operation. Supplied with a solid refractory hearth with robust side and rear heat shields, the DS400 complies with British Gas standards and is a fully fail safe system.
Top Key Features
- Asbestos free heat resistant refractory hearth, side and rear heat shields
- 5 Heat Reflective Blocks
- Push button no volt release starter
- Requires manual restart after power failure
- RF 80 brazing torch
Overview
The DS400S is supplied with an easy-to-use single valve controlled RF80 torch which allows one-hand operation. Supplied with a solid refractory hearth with robust side and rear heat shields, the DS400 complies with British Gas standards and is a fully fail safe system.
All sequences are visually displayed using neon indicators. On start-up the gas train, hoses and torches are tested for escaping gas. Leaks from any component will result in a continuously illuminated red neon and the main flow of gas will be prevented from entering the system.
Key Features
- Asbestos free heat resistant refractory hearth, side and rear heat shields
- 5 Heat Reflective Blocks
- Push button no volt release starter
- Requires manual restart after power failure
- RF 80 brazing torch
- Colour coded reinforced gas and air hoses
- Whisper quiet air blower fan
- Push button electronic ignition.
- Auto gas leak proving system on start up
- Indicator status lights
- Gas non-return valve
- Operating /Instruction manual
Dimensions
| Length: | 730 mm |
|---|---|
| Width: | 700 mm |
| Height: | 1195 mm |
| Depth: | 700 mm |
| Weight (Net): | 122 kg |
| Weight (Gross): | 122 kg |
| Height with Canopy: | 1800 mm |
Technical Specifications
| Electrical: | 120 Watts - 220-240 volt single phase |
|---|---|
| Extraction System: | Varivac Extraction |
| Noise Level: | Whisper quiet air blower |
| Safety: | Units must be installed & commissioned by Flamefast qualified engineers Appropriate PPE must be warn at all times when operating equipment Push button no volt release starter Manual restart after power failure Colour coded reinforced gas and air hoses |
| Warranty: | 2 Years |
PLEASE STATE GAS TYPE WHEN ORDERING
Performance
Forging Performance
| Gas Type | Rate | BTU / HRS | kW | Pressure |
| Natural gas | 2.18 m3/h | 80,000 | 23.5 | 20 mbar |
| Propane | 1.66 kg/h | 80,000 | 23.5 | 35 mbar |
| Butane | 1.70 kg/h | 80,000 | 23.5 | 28 mbar |
Â
Optional Extras
- RF10 fine jewellery torch
- Optional additional connection for second torch
- 300mm revolving brazing table
- *Fume extraction to meet HSG258 regulations
*Fume extraction is mandatory as per HSG258/ COSHH regulations. Please contact us for advice and cost
Varivac Extraction
The Varivac’s unique fume intake configuration captures all fumes and prevents any spillage. An electrical interlock prevents the use of linked equipment before the Varivac is switched ON.
Â
It can be fitted to existing equipment if required with a choice of low level or high rise exhaust outlets.
Â
To fit Varivac Extraction Place Varivac canopy around the outer rear top of the unit and bolt through the corresponding holes.
-
