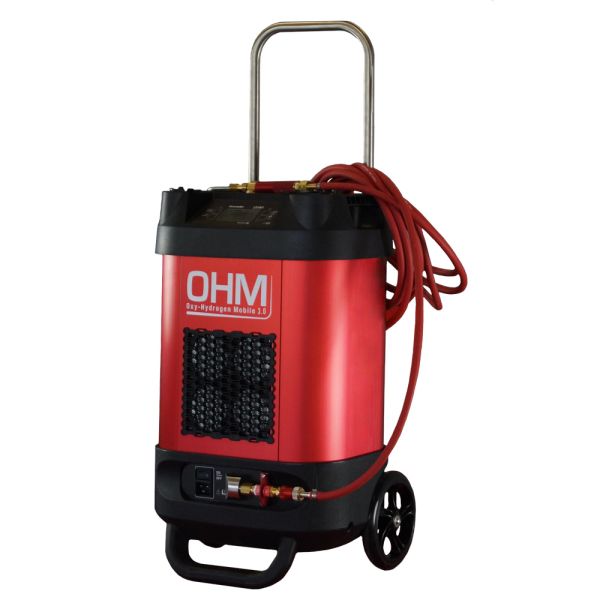

Flamefast Brazing System - OHM 3.0

Ideal as an alternative option to gas fired brazing. With CleanTech dyomix® it is possible to easily produce a clean high-performance fuel from the oxygen and hydrogen naturally present in water, with no storage requirements.

Top Key Features

  • Portalbe, smart, safe gas generator
  • Intuitive device to use, totally, Plug & Braze
  • High-performance flame (T°C > 2700°C, very high thermal conductivity)
  • Total cost of ownership is drastically lower than all other market solutions
  • Ergonomic safety blow torch and swivel
  • Revolutionary flame that will make you forget the Oxy-Acetylenic mixtures

Overview

Ideal as an alternative option to gas fired brazing


With CleanTech dyomix® it is possible to easily produce a clean high-performance fuel from the oxygen and hydrogen naturally present in water, with no storage requirements. The flame produced by this process, burns at more than 2700QC, and is particularly suitable for the needs of those professionals using a flame torch in their daily work.

The dyomix® flame obtained is compatible with all brazing products (filler metals and fluxes) on the market. No new specific training is required. The dyomix® oxy-hydrogen flame technology has been used and tested intensively in the industry since 2009. Compact and equipped with wheels, the Castolin dyomix® OHM 3.0 is a major innovation, 100% made in France. It is intended both for professionals who need mobility and industrial manufacturers using the flame in their processes and seeking great flexibility along with a very low total cost of ownership.

Key Features

  • Portalbe, smart, safe gas generator
  • Intuitive device to use, totally, Plug & Braze
  • High-performance flame (T°C > 2700°C, very high thermal conductivity)
  • Total cost of ownership is drastically lower than all other market solutions
  • Ergonomic safety blow torch and swivel
  • Revolutionary flame that will make you forget the Oxy-Acetylenic mixtures

Dimensions

Length:403 mm
Height:974 mm
Depth:361 mm
Weight (Gross):51 kg

Technical Specifications

Electrical:Single-phase power supply: 230 Vac - Max 16 A
Rated power: Up to 3kW (normal mode)
Safety:CE Marking
Safety systems with CE certificate (CAT.IV DESP 97/23/CE)
IP21
Flashback arrestor systems
Self-extinguishing plastic housing (UL94 V2 and HB)

Hydrogen / Oxygen Production

Service Pressure1,5 bar
Max flow rate750 l/h
Runtime*about 45min *at 100% between two refills
Flame temp2 700°C

Water & Additive

Duty factor100%
Pure water consumption*0.41 l/h (normal mode) *water with recommended purity level
Additive consumption*0.16 l/h (normal mode) *additive meeting the recommended purity level

Electronic Functions, Instruments & Integrated System

  • Buttons and indicator lights
  • LCD screen with real-time user messages
  • Visual and audible alarms (LEDs and buzzers)
  • "Auto leak test" function
  • Integrated safety functions
  • USB telephone recharge
  • Safety system
  • x1 Pressure gauge + digital display
  • Electronic pressure controller
  • Ergonomic auto-pilot flame (flame colouring system and gas odorisation for greate safety)
  • x1 Quick connector with seal and safety lock

Product Reference

DescriptionReference
Flamefast OHM 3.0 - without TorchFlamefast OHM 3.0 - without Torch FF-30 OHM
H2O OHM 3.0 5LFF-24 H2O 5000
H2O OHM 3.0 250mlFF-24 H2O 0250
Additive for OHM 2.4 5LFF-24 ADD 5000
Additive for OHM 2.4 125mlFF-24 ADD 0125
