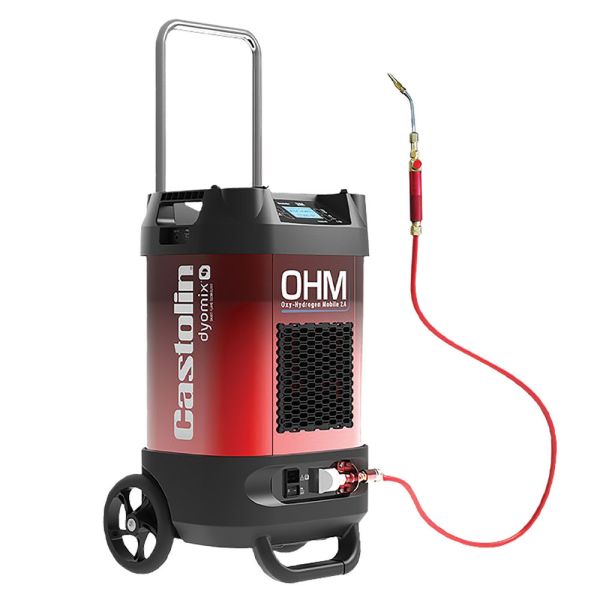

Flamefast Brazing System - OHM 2.4
The Flamefast Brazing System is an easy to use portable brazing system that is ideal for professionals using a flame torch in their daily work or teachings
Top Key Features
- Compatible with all brazing products (filler metals & fluxes) on the market
- High performance heating. Flame burns at more than 2500ËšC
- No special or new training required to operate
- Robust efficient & safe
- Intensively used & tested within the industry since 2009
- Innovative & patented
Overview
The Flamefast Brazing System is an easy to use portable brazing system that is ideal for professionals using a flame torch in their daily work or teachings. The system outputs a clean high-performance fuel from the oxygen and hydrogen naturally present in water, with no storage requirements. The system produces a flame that burns at more than 2500°C and is compatible with all brazing products (filler metals & fluxes) on the market.
This compact, lightweight and mobile unit is a major innovation, using the latest ecoinnovative technologies. By choosing the OHM 2.4 you can save cost and stabilise your brazing related expenses while also benefiting from increased safety and improved working conditions.
Key Features
- Compatible with all brazing products (filler metals & fluxes) on the market
- High performance heating. Flame burns at more than 2500ËšC
- No special or new training required to operate
- Robust efficient & safe
- Intensively used & tested within the industry since 2009
- Innovative & patented
- Dyomix® electrolysers now miniaturized to be used directly on site
- Compact, lightweight and mobile
- Allows for improved working conditions
- Reduced environmental impact via carbon free brazing
- 15 Times more economical than a 1m³ oxyacetylene station
- No more gas cylinders required
Dimensions
| Length: | 395 mm |
|---|---|
| Height: | 960 mm |
| Depth: | 360 mm |
| Weight (Gross): | 38 kg |
Technical Specifications
| Electrical: | Single-phase power supply: 230 Vac - Max 11 A Rated power: 2 kW (normal mode) Max power: 2.4 kW (BOOST mode) |
|---|---|
| Safety: | CE Marking Safety systems with CE certificate (CAT.IV DESP 97/23/CE) IP21 Flashback arrestor systems (ISO 5175 and EN 730) Self-extinguishing plastic housing (UL94 V2 and HB) |
Hydrogen / Oxygen Production
| Service Pressure | 1.4 bar |
|---|---|
| Max flow rate | 550 l/h |
| Runtime* | 1 hour *at 100% between two refills |
| Flame temp | 2 500°C |
Water & Additive
| Pure water consumption* | 0.25 l/h (normal mode) *water with recommended purity level |
|---|---|
| Additive consumption* | 0.10 l/h (normal mode) *additive meeting the recommended purity level |
Electronic Functions, Instruments & Integrated System
- Buttons and indicator lights
- LCD screen with real-time user messages
- Visual and audible alarms (LEDs and buzzers)
- "Auto leak test" function
- Integrated safety functions
- USB (5V) telephone recharge
- x1 Pressure gauge + digital display
- Electronic pressure controller
- Ergonomic auto-pilot flame (flame colouring system and gas odorisation for greater safety)
- x1 Quick connector with seal and safety lock
Product Reference
| Description | Reference |
| Complete OHM 2.4 | FF-24OHM |
| AutoFlam OH kit* | FF-24OHM-01 |
| AutoFlam OH torch (torch only with piloted nozzle) | FF-24OHM-02 |
| OH piloted nozzle | FF-24OHM-03 |
| Mono-dart nozzle 1,5 OH | FF-24OHM-04 |
| Mono-dart nozzle 1,9 OH | FF-24OHM-05 |
| Ultra-pure H2O water - 250ml | FF-24OHM-06 |
| Altering ADDITIVE - 125ml | FF-24OHM-07 |
| Ultra-pure H2o water - 5L drum | FF-24OHM-08 |
| Altering ADDITIVE - 5L drum | FF-24OHM-09 |
-
