GCC Jaguar V Vinyl Cutter
Categories: Workshop Equipment , Laser Machines , Workshop Equipment , Laser Machines , Vinyl Cutters / Plotters , GCC Vinyl Cutters / Plotters

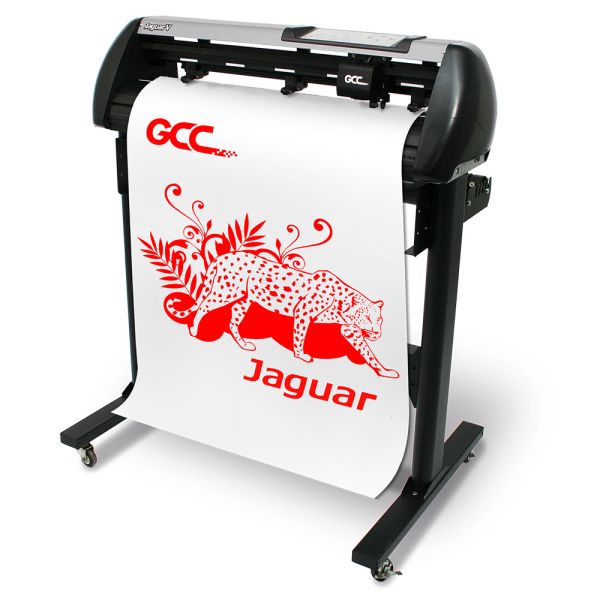

The all-new Jaguar V series of vinyl cutting plotters includes the Jaguar V models (J5-61, J5-101, J5-160 and J5-132), and Jaguar V LX models (J5-61LX, J5-101LX, J5-132LX, J5-160LX and J5-183LX) .
Top Key Features
- Enhanced AAS II Contour Cutting System
- Section Cutting
- Auto Rotation
- Segmental Positioning
- Triple Port Connectivity
- Efficient Throughput
Overview
The all-new Jaguar V series of vinyl cutting plotters includes the Jaguar V models (J5-61, J5-101, J5-160 and J5-132), and Jaguar V LX models (J5-61LX, J5-101LX, J5-132LX, J5-160LX and J5-183LX) .
With intuitive features to meet the demands of today’s professionals, the Jaguar V series represents the apex of vinyl cutting plotter technology.
Key Features
- Enhanced AAS II Contour Cutting System
- Section Cutting
- Auto Rotation
- Segmental Positioning
- Triple Port Connectivity
- Efficient Throughput
- Guaranteed 10m Tracking Ability
- Innovative Tangential Mode
- Media Support System
- User-Friendly Control Panel
- Selective Pinch Roller Positioning
- Facilitate Efficient Workflow of Car Wrapping
- GCC One-Click Windows Driver
Dimensions
| Puma IV | J5-61 | J5-101 | J5-132 | J5-163 | |
| J5-61LX | J5-101LX | J5-132LX | J5-163LX | J5-183LX | |
| Dimension (HxWxD) mm | 412 x 950 x 486 | 1096 x 1450 x 651 | 1111 x 1774 x 651 | 1127 x 1962 x 756 | 1127 x 2170 x 756 |
| Dimension (HxWxD) in | 16.2 x 37.4 x 19.1 | 43.1 x 57 x 25.6 | 43.7 x 69.8 x 25.6 | 44.4 x 77.2 x 29.8 | 44.4 x 85.4 x 29.8 |
| Net Weight | 18 kg/ 39.6 lb | 41.5 kg/ 91.4 lb | 50 kg/ 110.2 lb | 69 kg/ 152.119 lb | 88 kg/ 194.0068 lb |
Technical Specifications
| Puma IV | J5-61 | J5-101 | J5-132 | J5-163 | |
| J5-61LX | J5-101LX | J5-132LX | J5-163LX | J5-183LX | |
| Operational Method | Roller-Type | ||||
| Max. Cutting Width | 610 mm (24 in.) | 1016mm (40 in.) | 1320mm (52 in.) | 1627 mm (64 in.) | 1830mm (72 in.) |
| Max. Media Loading Width | 770mm (30.3 in.) | 1270mm (50 in.) | 1594mm (62.7 in.) | 1782mm (70.2 in.) | 1990mm(78.3 in.) |
| Min. Media Loading Width | 50 mm (1.97 in.) | ||||
| Number of Pinch Rollers | 3 | 4 | 6 | ||
| Acceptable Material Thickness | 0.8 mm (0.03 in.) | ||||
| Driver | DC Servo Control | ||||
| Max. Cutting Force | 600g | ||||
| Max. Cutting Speed | 1530 mm/sec (60 ips) (at 45° direction) | ||||
| Acceleration | 4.2 G (gravity) | ||||
| Offset | 0~1.0 mm (with an increase of 0.025mm) | ||||
| Memory Buffer | 32 MB /16 MB (when using AAS) | ||||
| Interfaces | USB 2.0 (Full Speed) and Serial (RS-232), and Ethernet | ||||
| Type of Command | HP-GL, HP-GL/2 | ||||
| Mechanical Resolution | 0.006 mm | ||||
| Software Resolution | 0.025 mm | ||||
| Distance Accuracy | ±0.254 mm or ±0.1% of move, whichever is greater | ||||
| Repeatability | ±0.1 mm | ||||
| Automatic-Aligning System | Available on Jaguar V LX models, including Segmental Positioning and Auto Rotation functions | ||||
| Auto Rotation | Available on Jaguar V LX models | ||||
| Section Cutting | Yes | ||||
| Curve & Arc Smoothing | Yes | ||||
| Configurable Origin | Yes | ||||
| Test Cut Capability | Yes | ||||
| Tangential Mode | Yes | ||||
| Over Cut | Yes | ||||
| Repeat | Yes | ||||
| Copy | Yes | ||||
| Control Panel | LCD (20 digits x 2 lines), 14 Keys, 1 Power LED | ||||
| Diameter of Blade | 2.5 mm | ||||
| Stand | Optional | Standard | |||
| Media Basket | Optional | ||||
| Power Supply | 100~240 VAC 50 / 60 Hz (auto switching) | ||||
| Power Consumption | Max. 250 W | ||||
| Operation Environment Temperature | 15° C~30° C / 60°F~86° F | ||||
| Operation Environment Humidity | 25% ~ 75% | ||||
- Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Purchasing serial number for “Sure Cuts A Lot” software to work with Mac OS.)
- The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly.
- GCC certified material in tracking is Avery MPI 3000.
- The above listed specification values are effective only when operated with media certified by GCC.
Optional Items

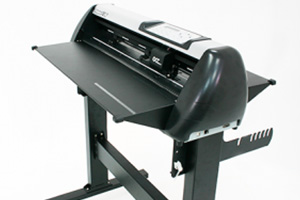

Add-on Flat Table (only for 61 model)
For cutting thick sheet material, such as magnet.
Roll to Roll System

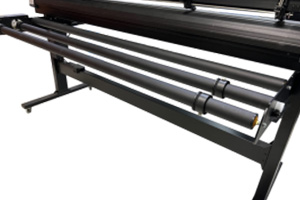

The roll-to-roll system enables users to effortlessly handle continuous roll media, eliminating the need for manual intervention and maximizing workflow efficiency. This feature enhances convenience and versatility, particularly for car restyling, PPF, window tint, and signage (print & cut) applications.

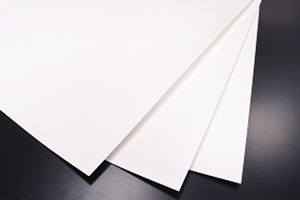

18" x 24" Low Adhesive Film (3 pcs/pk)
Put materials on the Low Adhesive Film to cut, and it’s recommended to work with Add-on Flat Table.
Wi-fi Router
Wi-Fi router allows you to transmit data through a wireless network. It can work with GCC laser engravers and RX II/ Jaguar V cutting plotters through the Ethernet port (not applicable for Japanese users.) Whether you are sending files to multiple GCC machines using one PC or sharing one unit of GCC machines with multiple PCs, this wireless technology can be an excellent helper
Metallic Blade Holder Φ2.5 mm
Adjusting the blade length to fit your needs.

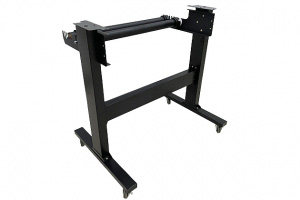

Stand
To support cutting plotter machine and roll media.
Media Basket
To keep your vinyl off the floor and away from dust or contaminants. Your production will be a clean and efficient operation.
Safe Blade
Users can cut off the finished job by the safe blade.
Cutting Blades
Users can replace the cutting blade by different materials to meet your need.
Cutting Pad
It prevents the blades from becoming blunt quickly.
GCC Jaguar V Vinyl Cutter Features
Enhanced AAS II Contour Cutting System

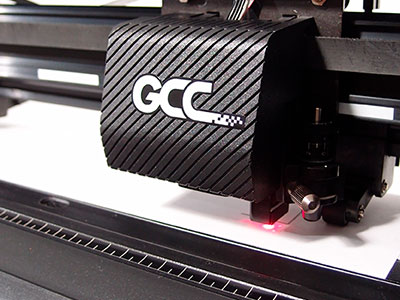

The Jaguar V series features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images. Functions include:
 | 1st-mark auto-detection |  | 4-point positioning |
 | Segmental positioning |  | Multiple copies |
Section Cutting

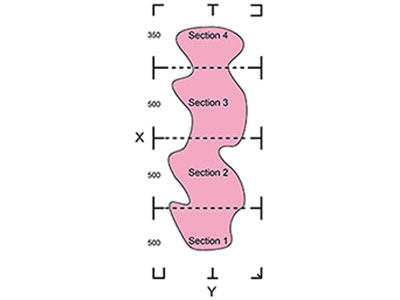

Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. GCC Jaguar V series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.
Auto Rotation

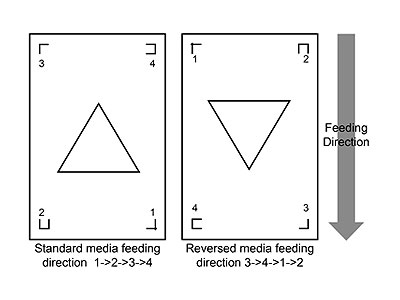

New registration marks defined to detect material feeding direction. Jaguar V detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.
Segmental Positioning

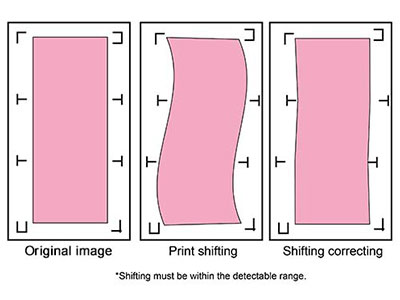

Jaguar V series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.

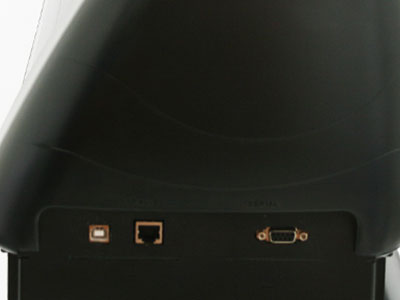

Triple Port Connectivity
Jaguar V series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and Jaguar V. Ethernet connection enables multiple Jaguar V to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides sign makers a great flexibility for data transmission.
Easy to use 4" Touch Panel
At up to 60 inches per second of cutting speed, Jaguar V series cutting throughput simply outperforms the competition.

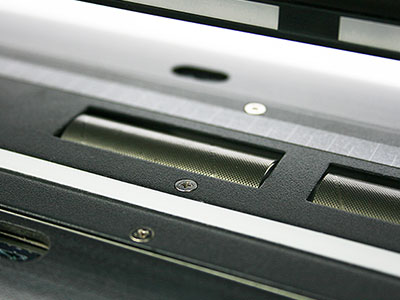

Guaranteed 10m Tracking Ability

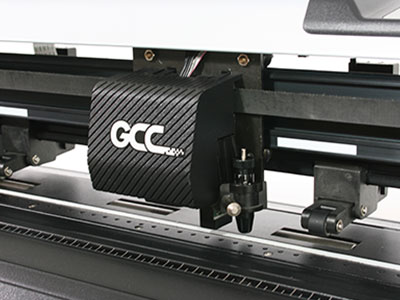

The exclusive grid drum and precisely engineered mechanism to provide superb tracking ability.

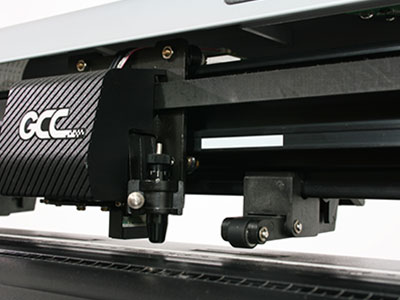

Innovative Tangential Mode
The tangential mode performs clean cuttings, diminutive letterings and intricate graphics which yield smooth corners and sleek edges on thick materials.

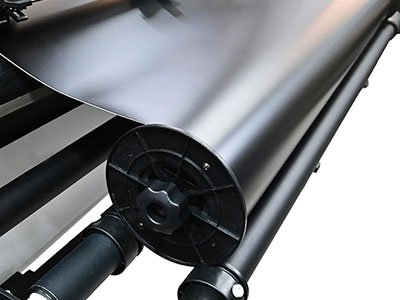

Media Support System
The media support system is fully adjustable. It supports media on standard cores and resolves media drifting and alignment problems to ensure better tracking.
User-Friendly Control Panel

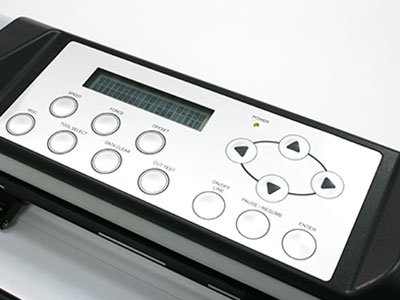

The easy-to-use and multi-language control panel can remarkably simplify complex tasks. It provides various functional settings to meet users' needs.
Selective Pinch Roller Positioning

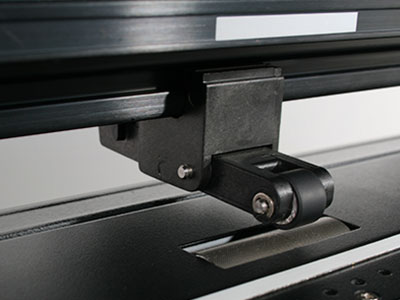

Each pinch roller can be operated respectively to selective position wherever is proper to optimize its utility.
GCC One-Click Windows Driver
GCC cutting plotters include an One-click Windows driver that allows sign makers to edit images in CorelDRAW or Adobe Illustrator and output directly to GCC cutting plotters.
Facilitate Efficient Workflow of Car Wrapping
The dedicated GCC Jaguar V (PPF) is the most cost-effective and high-performance vinyl cutter for streamlined vehicle wrap workflow. With the support of third-party cutting software containing the window tint and PPF pattern library, GCC Jaguar V (PPF) can accurately cut the vehicle patterns you require, making the wrapping process quicker and easier.
GCC---Cutter R2R Demonstration
GCC Cutter R2R Demonstration
GCC---Window Tint Application Demonstration
GCC Window Tint Application Demonstration
GCC---Cutter Vinyl Cutters Product Overview
GCC Cutter Vinyl Cutters Product Overview
GCC---Instruction of Stand and Media Basket Installation
GCC Instruction of Stand and Media Basket Installation
GCC---Jaguar V Installation and Operation
GCC Jaguar V Installation and Operation
GCC---Enhanced AAS II Introduction
GCC Enhanced AAS II Introduction
GCC---Vinyl Cutter Blade Specification
GCC Vinyl Cutter Blade Specification
GCC---Greatcut Installation and Operation(Updated Version)
GCC Greatcut Installation and Operation(Updated Version)
Related Products
-

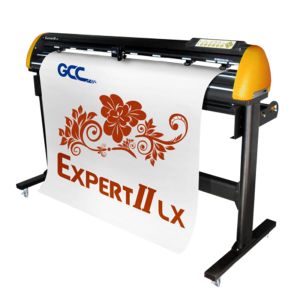

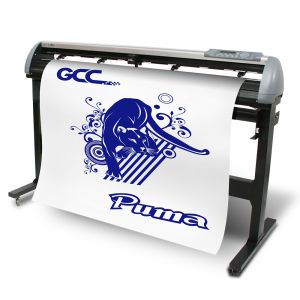

GCC Puma IV Vinyl CutterThe new Puma IV enhances its capability to complete a variety of applications... - GCC Expert II Vinyl CutterExpert II Series is the best choice for beginners and provides sign makers...
