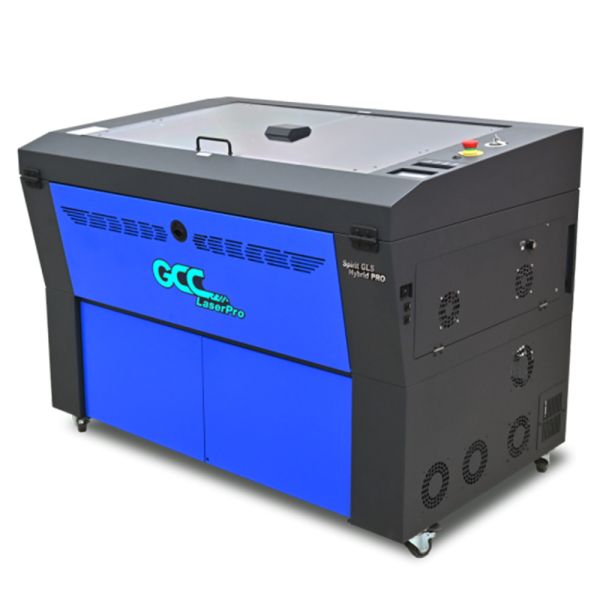

GCC Laser Engraver - Spirit GLS Hybrid Pro
Categories: Workshop Equipment , Laser Machines , D&T Workshop Equipment , Laser Machines , GCC Laser Engravers & Cutters , Hybrid Tube Laser Engravers & Cutters , Metal Tube Laser Engravers & Cutters , Glass Tube Laser Cutters & Engravers , Fiber Tube Laser Engravers & Cutters , All GCC Products
Designed with dual laser capabilities, integrating both CO₂ and Fiber laser options. The Spirit GLS Hybrid PRO empowers users to work seamlessly across non-metallic and metallic materials with exceptional efficiency, precision, and reliability.
Top Key Features
- CO2 & Fiber Hybrid Lasers (Spirit GLS Hybrid PRO Only)
- SmartPIN™ AutoFocus (Patented)
- SmartEYES™ & Live-view Camera
- Key Switch & Emergency Stop
- DuraGuide
- Easy to Use 4” Touch
Overview
Designed with dual laser capabilities, integrating both CO₂ and Fiber laser options. The Spirit GLS Hybrid PRO empowers users to work seamlessly across non-metallic and metallic materials with exceptional efficiency, precision, and reliability.
Built for high-demand environments, it maximizes productivity and ensures consistent quality across applications, enabling businesses to expand their capabilities from wood engraving to metal marking with minimal setup.
Key Features
- CO2 & Fiber Hybrid Lasers (Spirit GLS Hybrid PRO Only)
- SmartPIN™ AutoFocus (Patented)
- SmartEYES™ & Live-view Camera
- Key Switch & Emergency Stop
- DuraGuide
- Easy to Use 4” Touch Panel
- Innovative Software Features
- SmartLID™ (Patented)
- Closed-loop DC Servo Technology
- Drag-N-Play
- SmartCENTER™ (Patented)
- Astonish 3D Engraving
- TrueImage Engraving Technology (Patented)
Dimensions
| Dimensions: | 1373 x 934 x 1010 mm |
|---|---|
| Work Area: | 860 x 610mm (34 x 24 in.) Extendable to 960 x 610 mm (38 x 24 in.) |
| Part Size: | 990 x 635 x 177 mm, 990 x ∞ x 177 mm (doors open) |
Technical Specifications
| Camera: | SmartEYES: Standard martVISION Elite: Optional |
|---|---|
| Computer Interface / Network: | 10 Base-T Ethernet USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system) USB Type-B 2.0 – For connecting with the computer |
| Display: | 4” Touch panel |
| Extraction System: | External exhaust system with minimum flow rate 800m3/h (CFM 471 ft3/min) is required,2.3kPA negative pressure (Pure-Air PA-1500FS @ 4" exhaust port) |
| Power Consupmtion: | CO2: 30W - 60W: 100-240VAC, 50-60Hz Auto Switching, Max. 15A 80W and Above : 200-240VAC, 50-60Hz Auto Switching, Max. 15A Fiber30W or 60W: 100-240VAC, 50-60Hz Auto Switching, Max. 8A |
| Safety: | Class 1 Laser Product Compliant with EN60825 Class 2 Laser Product Compliant with CDRH, 2006/42/EC Machinery Directive Compliance Class 4 Laser Product Compliant with CDRH with the optional pass-through door module |
| Speed: | Max Engraving Speed CO230W - 40W: 2.54 m/s (100 in/s) / 60W - 100W: 3.04 m/s (120 in/s) Fiber30W or 60W: 3.04 m/s (120 in/s) DualCO2 30W -40W & Fiber 30W or 60W : 2.54 m/s (100 in/s) DualCO2 60W -100W & Fiber 30W or 60W : 3.04 m/s (120 in/s) |
| Cooling: | Air-cooled, Operating environment temperature 15°-30°C (60°-86°F) |
| Drive: | Closed-loop DC Servo Control |
| Engraving Capability: | 256-level gray scale image processing capability |
| Focus Lens: | CO2:Standard 2.0”, optional 1.5”, 2.5”, & 4.0” available FiberStandard 4.0”, optional 2.0” available DualStandard 2.0", optional 3.0" & 4.0" available |
| Laser Source: | CO2: 30W to 100W 10.6-μm sealed CO2 Laser Fiber30W or 60W Fiber laser DualAvailable |
| Operating System: | MS Windows |
| Power Control: | Adjustable from 0~100% (Up to 16 color-linked power settings per job) |
| Resolution / DPI: | Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500 |
| Speed Control: | Adjustable from 0.1~100% (Up to 16 color-linked speed settings per job) |
| Z-Axis: | Automatic |
* Speed does not equal to throughput. See dealer or visit www.GCCworld.com for more details.
* The flow rate is determined by a default fume extraction system; the flow rate may vary due to a di fferent fume extraction system.
Optional Items
SmartVISION™ Elite CCD
GCC LaserPro laser engraver utilizes the SmartVISION™ Elite CCD module, which enhances productivity by memorizing and locating printed graphics for precise, automatic contour cutting on materials like wood, acrylic, and cardstock. The working area will be changed to 770mm X 595mm (30.3”X 23.4”) after installing the CCD module .
Please note that the SmartVISION Elite CCD is exclusively compatible with CO2 single models.
Please note that the SmartVISION Elite CCD is exclusively compatible with CO2 single models.
Rotary Chuck
The rotary chuck for GCC LaserPro Spirit series and S400 is a handy tool used for laser engraving on cylindrical or spherical objects. In addition to the standard X, Y, Z axis, the rotary chuck allows for the fourth axis which rotates the object 360° to allow for engraving on cups, wine glasses, and even spherical objects. Supports diameters from 0.5–120 mm, lengths up to 410 mm, and weights up to 4 kg.
Stack Light Set
The indicator will flash to signal the end of job process and is ideal for working environment where audibility is weak.
Red light stands for “Error”; Green light stands for “ Stand-by”; Yellow light stands for “Machine is working / Insert the pass-through door key”
(This item is available for machine with 5272 V3 Mainboard and afterwards)
Red light stands for “Error”; Green light stands for “ Stand-by”; Yellow light stands for “Machine is working / Insert the pass-through door key”
(This item is available for machine with 5272 V3 Mainboard and afterwards)
Purex Fume Extraction System
GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line GCC LaserPro laser engraving and cutting systems. Purex is specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Noise-free operation, high vacuum capacity, compact design, and long life expectancy, the Purex is CE-compliant that represents the latest invention in exhaust extraction and smoke reduction technology for all types of applications.
SmartGUARD™ Fire Alarm (Patented)
Laser engraving and cutting operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.
Honeycomb Table
A clean and better cutting quality is achieved by the honeycomb table when cutting materials into small pieces. It lifts the workpiece off the work table from hitting by laser reflection. The dust and vapor created during processing are then taken away effectively through the honeycomb cell by a down vacuum funnel exhaust. Rather than handling rigid materials, the honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting results.
Flame Sprinkler System
Laser engraving and cutting operations using the flame sprinkler system protects the operator, machine, and working objects from potential fire hazards. During the engraving process, flaming may occur when working with combustible or easily-flammable materials, such as paper or wood. The flame sprinkler system is an optional item that automatically ejects gas to extinguish flames when they reach 68°C/155°F moments after the onset of the fire.
Entry-Level Fume Extraction System
GCC PA-1500FS & PA-1000FS, CE-certified fume extraction systems, are designed to remove hazardous fumes and dust during laser processing to protect the health of operators, eliminate environmental pollution and enhance laser engraving and cutting.
* For seamless fume extractor control via laser machines, we recommend considering the purchase of an external I/O board.
* For seamless fume extractor control via laser machines, we recommend considering the purchase of an external I/O board.
Grid Cutting Table
The grid cutting table is an ideal pal for laser cutting. It lifts the work piece off the work table from hitting by laser reflection while supports it with reinforced grid design. The dust and vapor created during laser cutting are then taken away effectively through the grid by down vacuum funnel exhaust. Rather than handling rigid materials, grid cutting table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting result.
External Interface Control Board
The External Control Interface Board is an optional item that allows users to set up GCC LaserPro laser engraving and cutting systems for communication with external devices such as odor reduction units, robot arms, and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.The External Control Interface Board is an optional item that allows users to set up GCC LaserPro laser engraving and cutting systems for communication with external devices such as odor reduction units, robot arms, and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.
SmartBOX™
An innovative technology for laser engravers and cutters that integrates the ventilation box with a honeycomb table or aluminum grid cutting table. The result is not only a precise cut with sharp edges, but also a clean laser table to work on.
SmartAIR™ Fine Nozzle
The optional SmartAIR Fine Nozzle is recommended for laser engraving or cutting thin materials such as textile. The smaller caliber nozzle is positioned closer to the object for a concentrated blast directed over a small area to eliminate burning on the cutting edge. The perfectly-vertical design of the SmartAIR Fine Nozzle produces a concentrated airflow to blow away dust and unwanted residue, leaving a clean product surface.
Dust Prevention Window
When the laser system is on duty, it will bring a lot of dust result from the material and it will contaminate the lenses and mirrors. Dust Prevention Window can keep lenses and mirrors clean to promote longer laser life and increase the effect of air induction.
Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.
SmartTOOL™
The GCC SmartTOOL™ is a Windows CorelDraw extension that drastically reduces process times. It simplifies tasks, saves time, and is intuitive to use without training. You will be amazed by its features.
Spirit GLS Hybrid Pro Laser Engraving Features

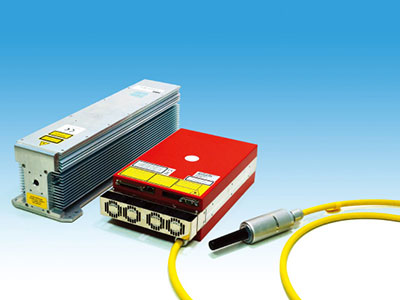

CO2 & Fiber Hybrid Lasers
(Spirit GLS Hybrid PRO Only)
GCC Hybrid technology allows to install CO2 & Fiber dual lasers in one system to expand your business from organic materials processing to direct metal engraving.
SmartPIN™ AutoFocus (Patented)
The plug-and-play probe design makes focusing a one-touch process and provides the accuracy and precision required for optimum quality in the laser process.
SmartEYES™ & Live-view Camera
A single camera provides both the SmartEYES™ precise design preview for effortless positioning and the real-time Live-view function, making it an ideal tool for observation and learning.
Key Switch & Emergency Stop
Key switch safeguards the machine from unauthorized use. Prominent emergency button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operating environment.
DuraGuide
Systematic and reliable motion system embedded with strong mechanical framework, reinforced Kevlar belts, and accurate servomotor control technology to deliver superb output quality under rapid movement.
Easy to Use 4" Touch Panel
A touch panel with coherent hot-key design and graphic icon displays that allows you to directly change the laser parameter setting, set jobs to repeat unlimited times, queue jobs, delete jobs, and more.
Innovative Software Features
New UI design for a fresh look. Various user friendly features such as SmartCENTER™, Defocus by pen, allows users to reduce set up time and make easy adjustments to achieve marvelous output quality.
SmartLID™ (Patented)
An innovative lid that opens from both ends allowing easier access for daily maintenance.

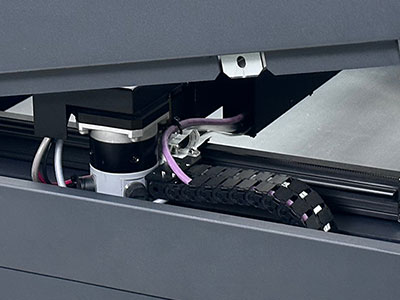

Closed-loop DC Servo Technology
Spirit LS PRO laser engraver utilizes Closed-loop DC servo motor that delivers greater continuous shaft power at higher speeds than a stepper of the same frame size. In addition, It can also give far greater accuracy for laser engraving due to the continuous movement, instead of constant stopping and starting.
Drag-N-Play
An exceptionally innovative and user-friendly feature based on servomotor technology simplifies operations and shortens setup time. Simply hand drag the lens carriage of the laser engraver to the desired position to be engraved and press the start button to commence the job.
SmartCENTER™ (Patented)
The super user-friendly SmartCENTER™ function helps end users to easily and automatically locate the center point of objects of any shape vastly eliminating tedious setup time.
Astonish 3D Engraving
GCC LaserPro integrates laser firing control and image processing technology to create a 3D laser engraving function, the laser system assigns up to different laser powers to 200 levels of grayscale in the image to make the spectacular 3D effects with different slopes.
TrueImage Engraving Technology (Patented)
Key switch safeguards the machine from unauthorized use. Prominent emergency button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operating environment.
Spirit GLS Hybrid
GCC LaserPro---PCB Prototyping With GCC LaserPro GLS Hybrid
The GCC LaserPro Spirit GLS Hybrid is the flagship model of the award winning Spirit line of laser engravers. In succession to GCC LaserPro's worldwide accolades features, Spirit GLS Hybrid further upscales its capability to CO2 & Fiber Hybrid laser option in one system.
Products Overview & Specs
GCC LaserPro Laser Engraving and Cutting Machines│Product Overview & Specification - 2025
GCC LaserPro Laser Engraving and Cutting Machines│Product Overview & Specification - 2025
