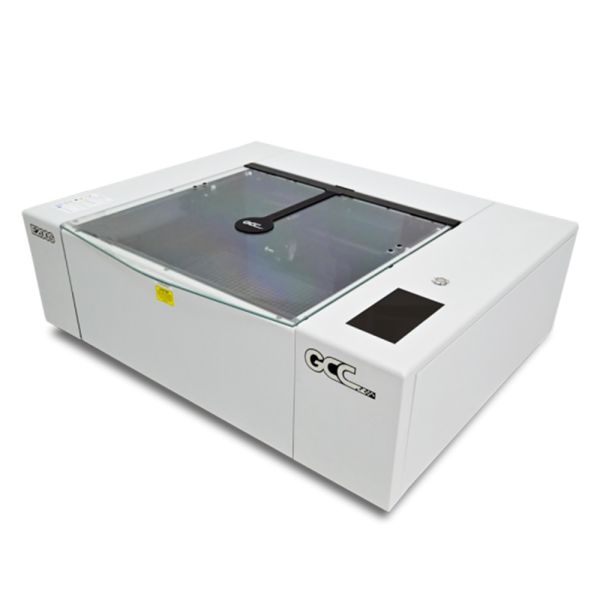

GCC Laser Engraver - E200S

E200S Series is GCC latest LaserPro professional-grade co2 desktop laser engraving machine, containing advanced functions with user-friendly design and excellent artwork presentation

Top Key Features

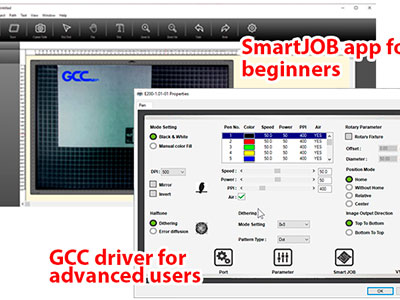

Multifunction User Interface
High Throughput for Unlimited Imagination
Unmatchable Output Quality
SmartEYES™
7” Large Touch

Enquire

Details

Overview

E200S Series is GCC latest LaserPro professional-grade co2 desktop laser engraving machine, containing advanced functions with user-friendly design and excellent artwork presentation.

E200S Series CO2 desktop laser engraver provides an easy operating workflow and is able to complete different processing procedures quickly, containing various advanced functions with stable quality and excellent safety features.

Key Features

Multifunction User Interface
High Throughput for Unlimited Imagination
Unmatchable Output Quality

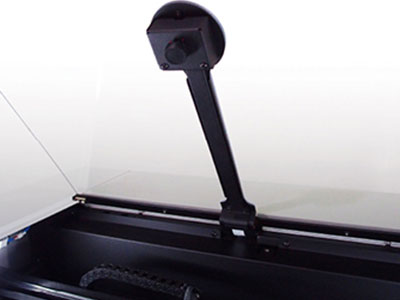

SmartEYES™

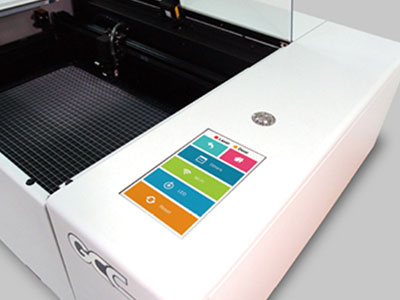

7” Large Touch Panel
Standard Water Chiller Allows For High Production

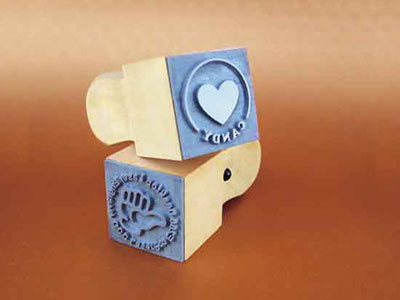

Stamp Mode With Shoulder Level Function

Specifications

Dimensions

Dimensions:	915 x 780 x 300 mm
Work Area:	510 x 330 mm
Part Size:	520 x 340 x 20 mm, 505 x 340 x 76 mm (without grid table)

Technical Specifications

Camera:	CCD Camera, Standard, accurate within 4mm (0.16 in.)
Computer Interface / Network:	Full-speed USB 2.0 port, 10 Base-T Ethernet
Connectivity:	E200S: WiFi, Ethernet, USB E200SL & E200SM: Ethernet, USB
Display:	7”touch screen
Features:	Air Compressor Built-in, available for external high performance air compressor (option) Blue Laser 10W 450 nm (option)
Extraction System:	Air Exhaust System: External exhaust system with minimum flow rate 300 m3/h (10594 ft3/min) is required, 2,500PA negative pressure (Pure-Air PA-300 @ 4" exhaust port)
Power Consupmtion:	100-240VAC, 50-60Hz Auto Switching, Max. 15A
Safety:	Class 1 Laser Product Complies with EN60825-1 Class 2 Laser Product Complies with CDRH Class 4 Laser Product Complies with Blue Laser (option)
Speed:	Max Working Speed 0.51 m/s (20 in/s)
Supported Material:	*Acrylic (E,C) , Wood (E,C), MDF (E,C), Cork (E,C), Cardboard (E,C), Paper (E,C), Rubber (E,C), Glass (E), Tile (E), Marble (E), Leather (E,C), Food (E,C), PET (E,C), Fabric (E,C), PU film ((E,C), Twill (E,C), A. Alum (E), Stainless Steel (E)
Cooling:	E200S & E200SL: Water-cooled E200SM: Air-cooled
Cutting Thickness:	10mm (max)
Drive:	Closed-loop DC Servo Control
Focus Lens:	Standard 1.5”
Laser Source:	Sealed CO₂ laser
Laser Wattage:	40W Sealed CO₂ laser (E200S), 30W Metal tube (E200SL, E200SM)
Operating System:	E200S: MS Windows (SmartJOB/Printer driver), Mac OS (SmartJOB) E200SL & E200SM: MS Windows (Printer driver)
Power Control:	Adjustable from 0~100% (Up to 5 color-linked power settings per job
Resolution / DPI:	Available 250,380,500,760,1000
Speed Control:	Adjustable from 0.1~100% (Up to 5 color-linked speed settings per job
Work Area Type:	Working Table: Standard grid cutting table

E = Engraving

C = Cutting

Equipment

Optional Items

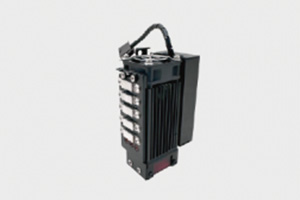

Blue Laser

The E200S Series is compatible with an optional blue laser. This versatile laser can mark on various materials, including metal, plastic, and laser hot foil for laser bonding. With blue laser as an optional item, it can engrave metal without any spray on it, blue laser enhances the range of laserable materials.

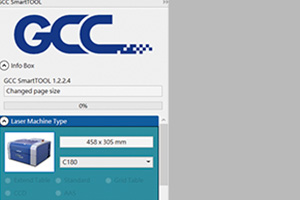

SmartTOOL™

The GCC SmartTOOL™ is a Windows CorelDraw extension that drastically reduces process times. It simplifies tasks, saves time, and is intuitive to use without training. You will be amazed by its features.

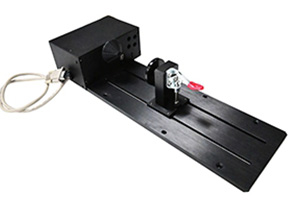

Rotary Attachment - E200/E200S

In addition to the standard X, Y, and Z axes, the rotary attachment of E200/E200S Series desktop laser engraver allows for a fourth axis that rotates the object 360° for laser engraving on cups, wine glasses, cylindrical objects, and even spherical objects.
The maximum diameter and length of the to-be-engraved object are 70mm (3 inches) respectively. Its maximum weight should not exceed 3kg (6 lbs).

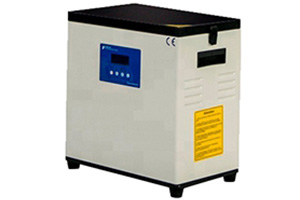

Fume Extraction System

CE-certified fume extraction systems, are designed to remove the hazardous fumes and dusts during laser processing to protect the health of operators, eliminate environmental pollution and enhance the laser cutting.
"For seamless fume extractor control via laser machines, we recommend considering the purchase of an external I/O board."

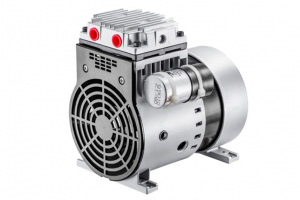

Air Compressor

A specially designed Air Compressor, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.
