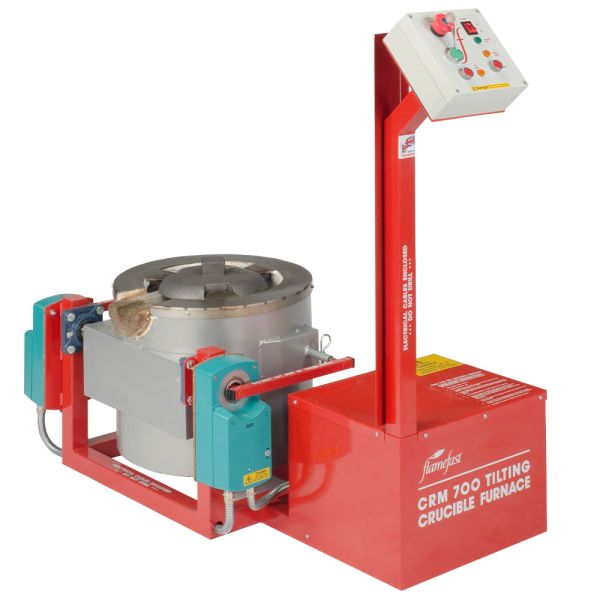

Melting Crucible Furnace - CRM700
Specifically designed for use in industry and education, the CRM700 Crucible Furnace is capable of melting a range of metals including aluminium, brass, bronze, gold and silver.
Top Key Features
- Whisper quiet blower fan
- Super efficient insulation
- Push button, no volt release starter
- Requires manual restart after power failure
Overview
Specifically designed for use in industry and education, the CRM700 Crucible Furnace is capable of melting a range of metals including aluminium, brass, bronze, gold and silver.
All valves and pipe work, including the whisper quiet blower fan, are included within the self-contained cabinet. Safe operation is by panel mounted controls. Ignition is automatic and there is automatic flame control with no user interaction required. On ignition, the crucible furnace is automatically put on low heat for about 5 minutes to preheat the chamber and crucible pot before ramping up to full heat input. This helps to reduce the risk of thermal shock of the pot.
Key Features
- Whisper quiet blower fan
- Super efficient insulation
- Push button, no volt release starter
- Requires manual restart after power failure
- Electronic flame failure protection with automatic ignition
- TPX25B crucible pot with a capacity of 4.2 litres
- Designed to work with natural gas, propane or butane
- Operation / Instruction manual
Dimensions
Width: | 500 mm |
---|---|
Height: | 1050 mm |
Depth: | 883 mm |
Weight (Net): | 75 kg |
Weight (Gross): | 75 kg |
Technical Specifications
Electrical: | 120 Watts - 220 - 240 Volts |
---|---|
Features: | Weight limit - 10 kg |
Noise Level: | Whisper quiet blower fan |
Safety: | Fume Extraction is mandatory as per HSG258 / COSHH regulations Appropriate PPE must be warn at all times when operating equipment Electronic flame failure protection |
Warranty: | 2 Years |
PLEASE STATE GAS TYPE WHEN ORDERING
IMPORTANT NOTICE: ACCORDING TO THE HEALTH & SAFETY AT WORK ACT 1974, BS 4163 AND COSHH REGULATIONS IT IS MANDATORY THAT ALL FUMES MUST BE REMOVED AT SOURCE.
Performance
Forging Performance
Gas Type | Rate | BTU / HRS | kW | Pressure |
Natural gas | 2.73 m3/h | 100000 | 29.3 | 20 mbar |
Propane | 2.1 kg/h | 100000 | 29.3 | 35 mbar |
Butane | 2.1 kg/h | 100000 | 29.3 | 28 mbar |
Â
MELTING TIMES
Typical Melting Times from Cold | |
Aluminium: | 4 kg in 25 minutes |
---|---|
Copper/Zinc: | 11 kg in 40 minutes |
Optional Extras
- Replacement TPX25B crucible pot
- Face shield (Plycarbonate)(2.2 mm)
- Heat resistant gloves
- Chrome leather leggings
- Chrome leather apron
- Hardware support casting kit
- Moulding Bench
- *Fume extraction to meet the requirements of COSHH Regulations
Â
*Fume extraction is mandatory as per HSG258/ COSHH regulations. Please contact us for advice and cost
