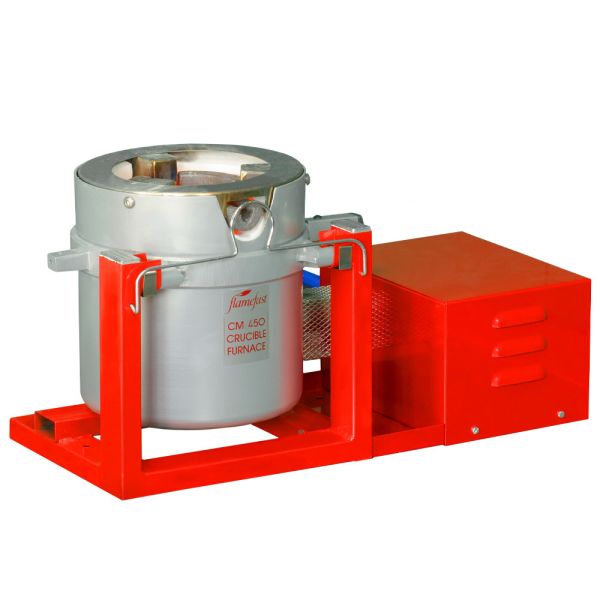

Safety Tilt Crucible Furnace - CM450PB
The CM450PB is fitted with a high performance burner and control system incorporating a fully automatic start sequence which is initiated by the touch of a switch.Â
The furnace offers fast melt times over a wide range of metals, from aluminium to bronze, brass, copper, gold and silver.
Top Key Features
- Fully automatic burner control and ignition system
- Super efficient insulation
- ATP10 Capacity crucible pot
- Crucible lid
- Tilt handle
Overview
The CM450PB is fitted with a high performance burner and control system incorporating a fully automatic start sequence which is initiated by the touch of a switch.Â
The furnace offers fast melt times over a wide range of metals, from aluminium to bronze, brass, copper, gold and silver.
Key Features
- Fully automatic burner control and ignition system
- Super efficient insulation
- ATP10 Capacity crucible pot
- Crucible lid
- Tilt handle
- Pouring gauge
- Degassing plunger
- Skimming ladle/dross lifter
- Safety burner cut-out prevents burner operating when drum is tilted
- Operation/Instruction manual
Dimensions
Width: | 630 mm |
---|---|
Height: | 330 mm |
Depth: | 330 mm |
Weight (Net): | 28 kg |
Weight (Gross): | 28 kg |
Technical Specifications
Electrical: | 50 Watts - 220 - 240 Volts |
---|---|
Safety: | IMPORTANT: Fume Extraction is mandatory as per HSG258 / COSHH regulation. Please contact us for advice and cost. |
Speed: | TYPICAL MELTING TIMES FROM COLD Aluminium: 2.9 kg in 25 minutes |
Warranty: | 2 Years |
PLEASE STATE GAS TYPE WHEN ORDERING
IMPORTANT NOTICE: ACCORDING TO THE HEALTH & SAFETY AT WORK ACT 1974, BS 4163 AND COSHH REGULATIONS IT IS MANDATORY THAT ALL FUMES MUST BE REMOVED AT SOURCE.
Performance
Forging Performance
Gas Type | Rate | BTU / HRS | kW | Pressure |
Natural gas | 1.36 m3/h | 50000 | 14.6 | 20 mbar |
Propane | 1.0 kg/h | 50000 | 14.6 | 35 mbar |
Butane | 1.06 kg/h | 50000 | 14.6 | 28 mbar |
Â
MELTING TIMES
Typical Melting Times from Cold | |
Aluminium: | 2.9 kg in 25 minutes |
---|---|
Copper: | 10 kg in 40 minutes |
Optional Extras
- Replacement ATP10 crucible pot and lid
- Raised sand tray, 1200 x 800 x 300 mm (no need for a casting pit)
- Face shield
- Heat resistant gloves
- Chrome leather leggings
- Chrome leather apron
- Combined lifting and pouring handles for multiple pours
- Hardware support casting kit
- Moulding Bench
- *Fume extraction to meet the requirements of COSHH Regulations
Â
*Fume extraction is mandatory as per HSG258/ COSHH regulations. Please contact us for advice and cost
