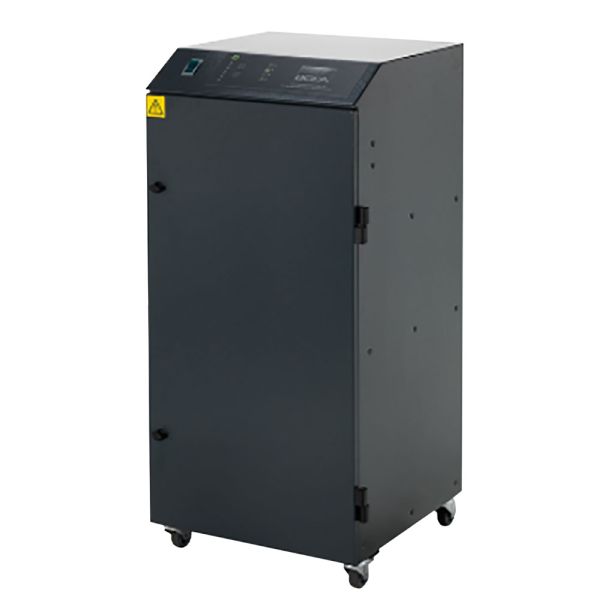

AD Oracle
The complete, global solution for high performance laser fume extraction.
Top Key Features
- Auto sensing voltage (90v - 257v) for global use standard
- DeepPleat DUO pre filter standard
- HEPA and Gas combined filter standard
- Automatic Flow Control standard
Overview
The complete, global solution for high performance laser fume extraction.
Introducing BOFA’s most technically advanced laser fume extractor. The AD Oracle packs a powerful range of unique features into one compact unit.
The revolutionary Auto-Voltage Sensing Turbine automatically self adjusts to run on any voltage worldwide, whilst the Reverse Flow filter technology enhances filter performance and ensures longer filter life.
Automatic Flow Control allows the user to preset correct flow rates, giving lower noise levels and further protection of both the combined filter and the DeepPleat DUO pre filter, which has an impressive 12m² of surface area
Key Features
- Auto sensing voltage (90v - 257v) for global use standard
- DeepPleat DUO pre filter standard
- HEPA and Gas combined filter standard
- Automatic Flow Control standard
- Advanced carbon gilter technology standard
- Reverse flow standard
Dimensions
| Width: | 430 mm |
|---|---|
| Height: | 955 mm |
| Depth: | 475 mm |
| Weight: | 65 kg |
| Inlet: | 75mm (0.24ft) |
Technical Specifications
| Approval: | CE |
|---|---|
| Dropout chamber size: | 16.2 litres |
| Electrical: | 90-257v 1ph 50/60Hz Ful load current: 12.5 amps /1.1kw |
| Filter Efficiency: | 95% @ 0.9 microns - Combined filter: 99.997% @ 0.3 microns |
| Filter Housing: | Zintec mild steel |
| Filter Media: | Glass fibre |
| Filter Media Construction: | Maxi Pleat with webbing spacer |
| Filter Media Pleat Size: | 200mm (0.65ft) |
| Frame Material: | Brushed stainless steel / Powder coated mild steel |
| Inlet: | 75mm (0.24ft) |
| Pressure / Airflow: | 380m3/hr /96mbar |
| Surface Media Area: | 12m2 approx (129.12ft2) |
| Treated Activated Carbon: | 15 kg (13lbs) |
