BS15 Mardon

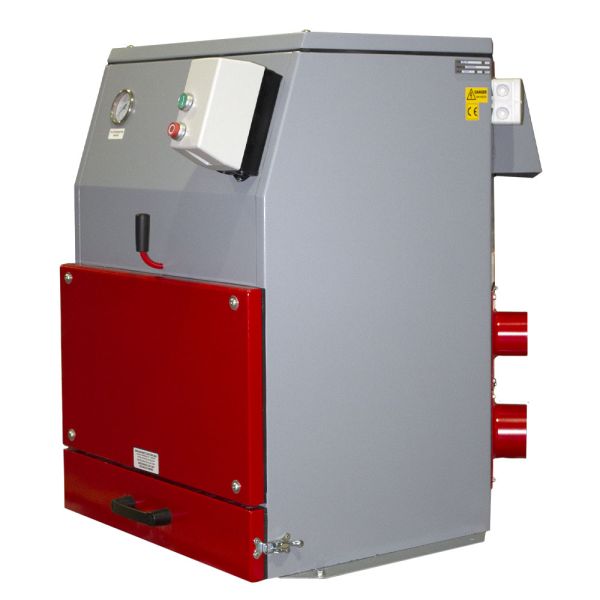

The Mardon BS15 is a self-contained dust extraction unit.

Top Key Features

  • Floor mounted adjacent to machine
  • Can be fitted with more than one inlet hose e.g. top and bottom Bandsaw extraction
  • Manual Shaker
  • Optional ATEX panel available

Overview

The Mardon BS15 is a self-contained dust extraction unit designed to meet the requirements of both the Health and Safety at Work Act and the 2002 (Amended 2004) COSHH Regulations and HSG258 Guidelines.

It is particularly suitable for use with large to medium sized Band Saws requiring both top and bottom extraction. Warm air is returned to the classroom being sympathetic to environmental issues.

Key Features

  • Floor mounted adjacent to machine
  • Can be fitted with more than one inlet hose e.g. top and bottom Bandsaw extraction
  • Manual Shaker
  • Optional ATEX panel available

Dimensions

Width:550 mm
Height:865 mm
Depth:730 mm - Including shaker handle: 750mm
Weight:74 kg
Inlet:1x100mm & 1x80mm Ø ports OR 2x80mm Ø ports OR 1x120mm Ø port on one side only

Technical Specifications

Dust Tray:18 Litres Capacity
Electrical:

Full Load Amps: 1 Phase = 5.1A, 3 Phase = 1.8A

Filter Area:1.4 m2
Filter Cleaning:Manual Agitation
Filter Media:Terylene Needle felt
Inlet:1x100mm & 1x80mm Ø ports OR 2x80mm Ø ports OR 1x120mm Ø port on one side only
MCB:10A Type C
Motor:0.75 KW (1hp) 230/1/50 or 400/3/50
Optional:

ATEX Explosion Relief: A Certified Explosion Vent Relief Panel is available to order if required to meet local authority or HSE requirements.
