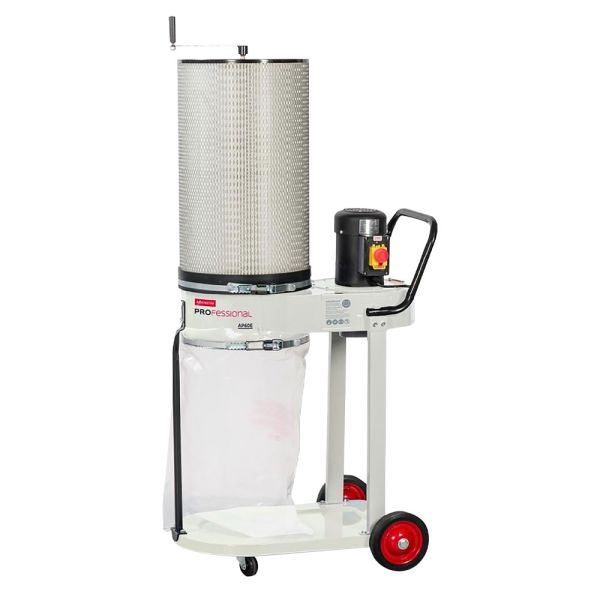

AP60E Axminster
The AP60E is a thoroughly modern design of dust extractor with a cartridge filter as standard.Â
Top Key Features
- Generous airflow from the efficient alloy impeller
- 1µm @ 100% capture rate cartridge filter with high airflow
- Rugged build for a professional workshop environment
Overview
The AP60E is a thoroughly modern design of dust extractor with a cartridge filter as standard. The excellent performance comes from careful matching of the motor, impeller and housing, resulting in an efficient machine able to extract chips and medium sized dust from almost all small and medium sized machinery.Â
The alloy impeller reduces the risk of sparks and the cartridge filter has a filtration rating of 1µm @ 100% capture rate. The cartridge filter increases the potential use of this machine to include sanders as well as the normal range of saws, planers etc. Easy to keep clean with the top mounted crank handle, the extra surface area means that the overall airflow is not significantly reduced.Â
Key Features
- Generous airflow from the efficient alloy impeller
- 1µm @ 100% capture rate cartridge filter with high airflow
- Rugged build for a professional workshop environment
Dimensions
| Length: | 720 mm |
|---|---|
| Width: | 660 mm |
| Height: | 1460 mm |
| Weight: | 32 kg |
Technical Specifications
| Bag Capacity: | 60 litre |
|---|---|
| Diameter: | 100 mm (hose) |
| Electrical: | 230 V |
| Electrical Socket / Plug fitted: | UK 3 pin plug |
| Filter Efficiency: | 100% >1 micron |
| Power: | 750 W |
| Pressure / Airflow: | 850 m³/hr @ 100 mm, 1600 Pa (static) |
| Rating: | Trade/Professional |
| Volume Flow: | 73 dB(A) [1.5 dB] LpA [Uncertainty K] |
