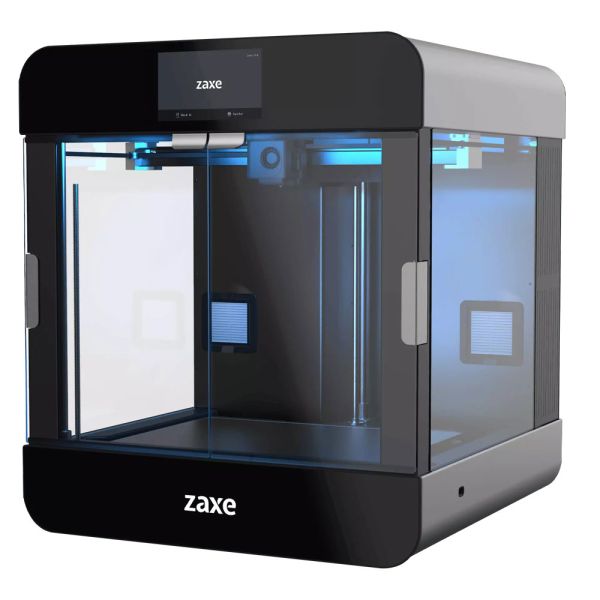

3D Printer - Zaxe Z3

Thanks to its Titanium E3D V6 HotEnd, Klipper Integrated Firmware, Core XY System and passive heated chamber, Zaxe Z3 offers a fast, precise, and reliable printing experience.

Top Key Features

  • Compact and innovative
  • HEPA + Carbon filters
  • Magnetic structure for effortless use
  • Choose between textured or smooth surface
  • Flexible spring steel structure
  • Fully Automatic calibration

Overview

Thanks to its Titanium E3D V6 HotEnd, Klipper Integrated Firmware, Core XY System and passive heated chamber, Zaxe Z3 offers a fast, precise, and reliable printing experience.

Achieve optimal productivity without any fear of clogging with Zaxe Z3’s new E3D V6 Titanium Printhead. V6 will prolong your Zaxe Z3’s service life and allow you to get the same performance after each print consistently for years.

Experience the world-class 3D printing performance of Zaxe Z3 thanks to the innovative Core XY Mechanical System. Zaxe Z3 will provide you with the speed, precision, and consistency that you need to take your production efficiency to the next level.

Key Features

  • Compact and innovative
  • HEPA + Carbon filters
  • Magnetic structure for effortless use
  • Choose between textured or smooth surface
  • Flexible spring steel structure
  • Fully Automatic calibration
  • Powerful Zaxe electronics
  • Secure and stable connection
  • Passive heated chamber
  • Cooling system
  • 1100 swing door
  • Colourful guiding LEDs
  • Power loss recovery system
  • Highly stable metal body
  • High performance electronic parts
  • Remote control with xCloud

Dimensions

Dimensions:585 x 665 x 667 mm
Build Volume:400 x 300 x 350 mm

Technical Specifications

Camera:YES
Connectivity:Wi-Fi, Ethernet, USB, Flash Disk
Display:7” Colour Touch Screen
Features:

Filament sensor

Power Outage Protection

Calibration fully automatic & Z tilt

Frame Material:Closed heat insulated
Supported Material:PLA, ABS, PETG, Nylon, Flex and Carbonfibre, Wood, Copper, Metal Filled Filaments
Warranty:24 Months
Build Plate:

Heated, Flexible, Magnetic PEI build table

Enclosure / Cover:Closed, heat insulated
Extruder:Extruder Max Temp: 300°C
Filament:1,75 mm
File Type:.stl, .amf, .gcode
Filter:HEPA + Carbon Filter
Heated Bed:

Bed Max Temp: 110°C

Layer:Layer Resolution: 25 - 600 Micron
Nozzle Diameter:0,25 / 0,4 / 0,5 / 0,6 mm
Nozzle Temperature:300°C Max
Pring Head:Single, Titanium E3D V6
Resolution / DPI:25 - 600 Micron
Software:xDesktop

Motherboard

At the heart of Zaxe Z3, there is the zBoard. Equipped with a 32-bit processor and a Raspberry Pi 4B+, zBoard provides the power and speed that will carry your manufacturing efficiency to new heights.

Secure and stable connection

Equipped with many security features to provide the safest 3D printing experience, zBoard includes a fuse for every possible scenario. Each connector is equipped with noise-canceling technology to give you a comfortable 3D printing experience.

Cooling system

To prevent the motherboard from overheating during intense sessions, zBoard’s temperature is kept under control with its cooling system. Even after countless hours of 3D printing, the system will keep your zBoard cool under pressure.
