Gas Torches - T2 & T4

Two torches are available, the T4 which is designed for heavy brazing and the T2 which is smaller in size with a heat output for more delicate work.

Top Key Features

  • Parking hook, & Screwed connection for flexible hoses
  • Work piece cooling by rapid air blast
  • A choice of models for natural or bottled gas
  • Easy and convenient to use

Overview

Two torches are available, the T4 which is designed for heavy brazing and the T2 which is smaller in size with a heat output for more delicate work.

The torches are designed to work with an air supply pressure regulated at 4 lbs/in2 - 270 mbar. The Flamefast T-range of Gas/Air torches is constructed from chrome plated brass with a heat resistant steel burner head ensuring long and reliable service.

Developed to give a wide range of flames at the turn of a valve. Ideal for brazing, soldering, metal melting, heat treatment, glass, lead and tinning work.

Key Features

  • Parking hook, & Screwed connection for flexible hoses
  • Work piece cooling by rapid air blast
  • A choice of models for natural or bottled gas
  • Easy and convenient to use
  • Plastic hand grip & thumb wheel for one handed adjustment
  • Built in balance and position of controls enables effortless single handed operation
  • Instantaneous adjustment of flame size, shape and intensity over the full range is achieved by a single rotary control valve

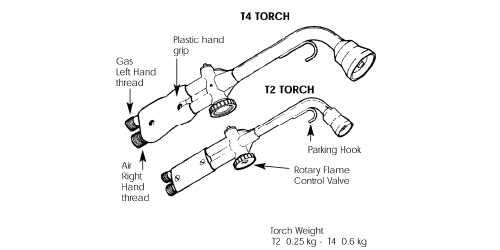

Dimensions

Weight (Net):T2: 0.25 kg - T4: 0.6 kg
Weight (Gross):T2: 0.25 kg - T4: 0.6 kg
T_Dims

Technical Specifications

Features:Compressed air supply
Frame Material:Plastic hand grip
Safety:If the air supply is delivered by an air compressor, a non-return valve and pressure gauge must be fitted in the air line. IMPORTANT: Fume Extraction is mandatory as per HSG258 / COSHH regulation. Please contact us for advice and cost.
Warranty:2 Years

PLEASE STATE GAS TYPE WHEN ORDERING

IMPORTANT NOTICE: ACCORDING TO THE HEALTH & SAFETY AT WORK ACT 1974, BS 4163 AND COSHH REGULATIONS IT IS MANDATORY THAT ALL FUMES MUST BE REMOVED AT SOURCE.

Performance

Forging Performance

Gas TypePressure
Natural gas20 mbar
Propane35 mbar
Butane28 mbar



Optional Extras

  • Gas and air colour coded hoses
  • Carton of 10 heat reflective blocks
  • 300mm revolving brazing table
  • Gas and air non-return valves
  • *Fume extraction equipment that meets COSHH Regulations

*Fume extraction is mandatory as per HSG258/ COSHH regulations. Please contact us for advice and cost

Part Numbers

50TRC-A24 NGT2 Natural Gas
50TRC-A24 LGT2 LPG
50TRC-A22 NGT4 Natural Gas
50TRC-A22 LGT4 LPG
