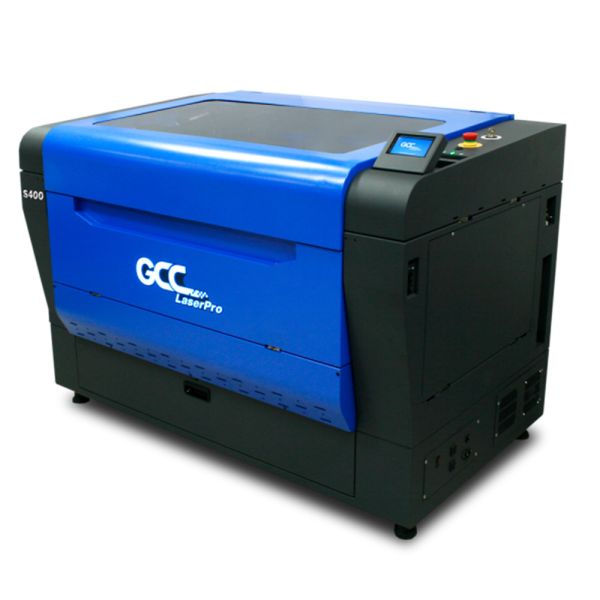

GCC Laser Engraver - S400

Inherit all the advantages from Spirit Hybrid, a brand new machine - S400 laser engraving machine features 3.55 m/s (140 in/s) processing speed by DC servo motor, innovative touch panel, user friendly interface and a modern good looking design.

Top Key Features

CO2 & Fiber Hybrid Lasers
Perfect Engraving and Cutting Throughput
Pass-through Front to Rear Doors (Optional)
SmartLID™ Easy Access
SmartFLOW™ Technology

Enquire

Details

Overview

Together with SmartFLOW™ dust prevention technology and SmartLID™ easy access invention, S400 presents you with the highest throughput and precise laser engraving and cutting quality. GCC S400 makes all your imaginations come to life at the speed of light.

Key Features

CO2 & Fiber Hybrid Lasers
Perfect Engraving and Cutting Throughput
Pass-through Front to Rear Doors (Optional)
SmartLID™ Easy Access
SmartFLOW™ Technology
SmartACT™ (Patented)
SmartLIGHT
SmartSEAL™ Technology
Intuitive Touch Screen
User friendly driver interface
Dust Prevention
Stamp Mode With Shoulder Level Function

Specifications

Dimensions

Dimensions:	1440 x 900 x 1048 mm
Weight (Gross):	270 kg (CO2 60~120W), 260 kg (Fiber 30/50W)
Work Area:	916 x 610 mm Extendable to 1016 x 610 mm
Part Size:	1053 x 647 x 280 mm (doors closed), 1053 x ∞ x 280 mm (doors open)

Technical Specifications

Computer Interface / Network:	10 Base-T Ethernet USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system) USB Type-B 2.0 – For connecting with the computer
Display:	4” Touch panel
Electrical:	Operation Voltage CO2 Below 80Watt, 100-240VAC, 50/60HZ Auto Switching, max. 15A 80Watt and above, 200-240VAC, 50/60HZ Auto Switching, max. 15A Operation Voltage Fiber 30/50W: 100-240VAC, 50-60Hz Auto Switching, Max. 8A
Extraction System:	Fume Extraction System - External exhaust system with minimum flow rate 800m3/h (CFM 471 ft3/min) is required, 2.3kPA negative pressure (Pure-Air PA-1500FS @ 4" exhaust port)
Safety:	Class 1 Laser Product Complies with EN60825-1:2014, EN ISO 13849-1:2015 Class 2 Laser Product Complies with CDRH for CO₂ Laser Class 3R Laser Product Compliant with CDRH for Fiber & Dual Laser Source 2006/42/EC Machinery Directive Compliance Class 4 Laser Product Compliant with CDRH with the optional pass-through door module
Speed:	*Max Motor Speed :** 3.55 m/s (140 in/s) Speed is not equal to throughput
Cooling:	Air-cooled, Operating environment temperature 15°- 30°C (59°- 86°F)
Distance:	Distance Accuracy 0.254 mm or 0.1% of move, whichever is greater
Drive:	Closed-loop DC servo control
Engraving Capability:	256-level gray scale image processing capability
Focus Lens:	CO2: Standard 2.0", optional 1.5", 2.5", & 4.0" available Fiber: Standard 2.0", optional 4.0" available Dual: Standard 2.0", optional 3.0" & 4.0" available
Laser Source:	CO2 & Dual: 10.6-μm CO2 sealed laser: 60~120W; 9.3-μm CO2 sealed laser: 60W Fiber & Dual: 30 / 50 W Dual: 60 ~ 120W
Operating System:	MS Windows 64 Bit
Power Control:	Adjustable from 0~100% (Up to 16 color-linked power settings per job)
Resolution / DPI:	Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500
Speed Control:	Adjustable from 0.1~100% (Up to 16 color-linked speed settings per job)
Z-Axis:	Automatic

Equipment

Optional Items

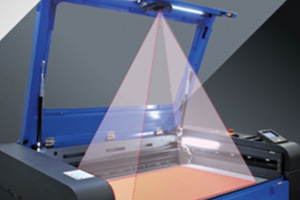

SmartEYES™ CCD

SmartEYES™ CCD on the top-lid; enables to capture the whole working area of the machine. Helps
you do positioning with ease. SmartEYES™ CCD include a super high-resolution camera; it provides precise
accuracy for the whole working area.

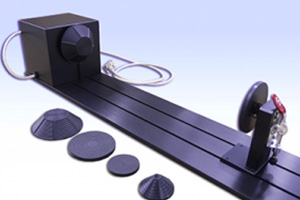

Rotary Attachment

Elevate the laser engraver and cutter to a higher level! By using the rotary attachment, laser engraving on cylindrical or round objects is now possible. This option uses the fourth axis to rotate your object 360° to allow engraving on cups, wine glasses or even a baseball with two types of conical fixtures available. The minimum/maximum diameter and length of the working object are 7 mm / 150 mm and 650 mm respectively. Its maximum weight should not exceed 4kgs.

SmartTOOL™

The GCC SmartTOOL™ is a Windows CorelDraw extension that drastically reduces process times. It simplifies tasks, saves time, and is intuitive to use without training. You will be amazed by its features.

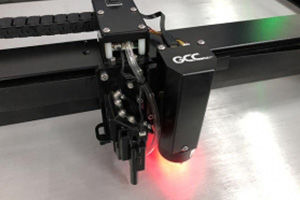

SmartVISION™ Pro CCD

The GCC S400 laser engraver utilizes the CCD module to enhance productivity by learning, memorizing, and precisely locating printed graphics for contour cutting. It automatically adjusts settings to ensure accurate cuts on various materials like wood, acrylic, and cardstock. With the SmartVISION™ Pro CCD installation, the working area exchanged to 840mm x 610mm (33" x 24").
SmartVISION Pro CCD is exclusively available for CO2 single models.

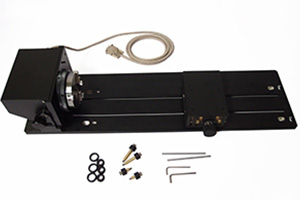

Rotary Chuck

The rotary chuck for GCC LaserPro Spirit series and S400 is a handy tool used for laser engraving on cylindrical or spherical objects. In addition to the standard X, Y, Z axis, the rotary chuck allows for the fourth axis which rotates the object 360° to allow for engraving on cups, wine glasses, and even spherical objects. Supports diameters from 0.5–120 mm, lengths up to 410 mm, and weights up to 4 kg.

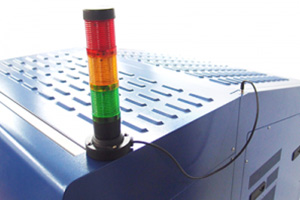

Stack Light Set

The indicator will flash to signal the end of job process and is ideal for working environment where audibility is weak.
Red light stands for “Error”; Green light stands for “ Stand-by”; Yellow light stands for “Machine is working / Insert the pass-through door key”
(This item is available for machine with 5272 V3 Mainboard and afterwards)

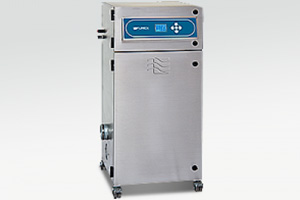

Purex Fume Extraction System

GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line GCC LaserPro laser engraving and cutting systems. Purex is specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Noise-free operation, high vacuum capacity, compact design, and long life expectancy, the Purex is CE-compliant that represents the latest invention in exhaust extraction and smoke reduction technology for all types of applications.

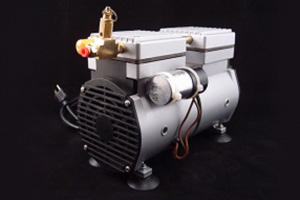

Air Compressor

A specially designed Air Compressor, by using an oil-less diaphragm, helps you eliminate the harmful and damaging side effects of moisture on the laser optics. In addition, it provides the optimal air pressure when laser engraving and cutting to blow away vaporized particles and prevent overheating, keeping lenses and mirrors clean for longer laser life

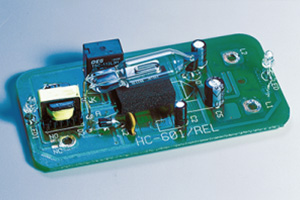

SmartGUARD™ Fire Alarm (Patented)

Laser engraving and cutting operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.

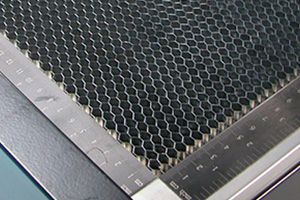

Honeycomb Table

A clean and better cutting quality is achieved by the honeycomb table when cutting materials into small pieces. It lifts the workpiece off the work table from hitting by laser reflection. The dust and vapor created during processing are then taken away effectively through the honeycomb cell by a down vacuum funnel exhaust. Rather than handling rigid materials, the honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting results.

S400 Laser Engraving Features

CO2 & Fiber Hybrid Lasers

GCC LaserPro Hybrid technology allows installing CO2 & Fiber dual lasers in one system to expand your business from organic materials processing to direct metal laser engraving.

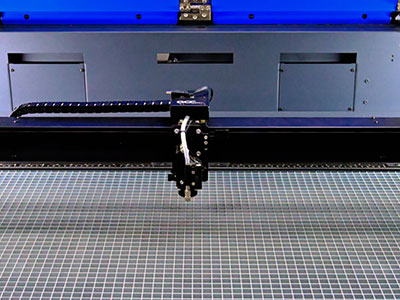

Perfect Engraving and Cutting Throughput

With a processing speed of up to 3.55 m/s (140 in/s) and powerful DC servo motors, S400 laser engraver boosts productivity while maintaining accuracy.

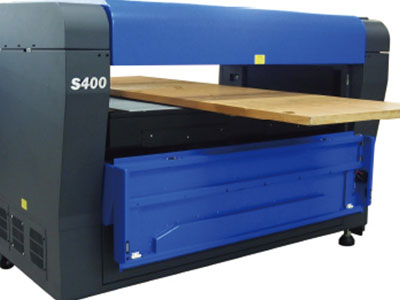

Pass-through Front to Rear Doors (Optional)

S400 laser engraver allows the front and rear door to open as you would expect to load extremely long workpieces expanding your business flexibility.

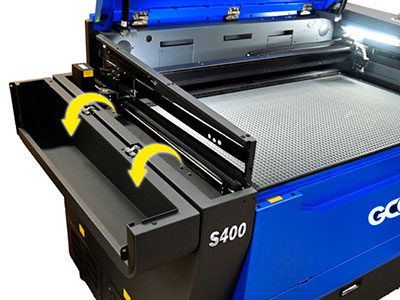

SmartLID™ Easy Access

The easy access design from both ends of the laser engraver simplifies the maintenance job.

SmartFLOW™ Technology

SmartFLOW™ invention creates a perfect airflow to enhance the vacuum effect and bring out the dust completely while laser engraving.

SmartACT™ (Patented)

A groundbreaking technology that reduces the ramping process and the job running time for laser engraving, which translates into higher productivity.

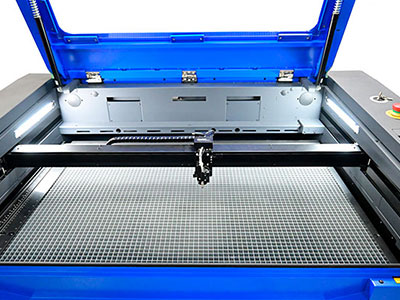

SmartLIGHT

The Built-in LED light module illuminates the working space of the laser engraver and makes every laser engraving detail easy to see.

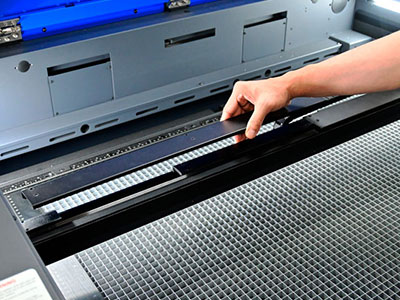

SmartSEAL™ Technology

S400 laser engraver new gantry design to prevent dust, the easy take-off cover also makes the maintenance a lot easier.

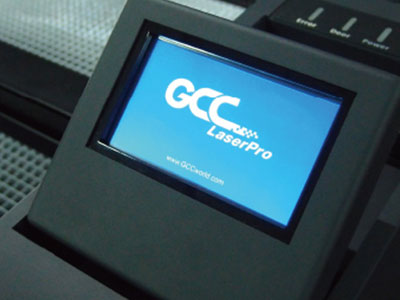

Intuitive Touch Screen

Operation is easy and intuitive with the 4” touchscreen, which allows you to change parameter settings, jobs conditions and to be aware of the working when laser engraving and cutting.
