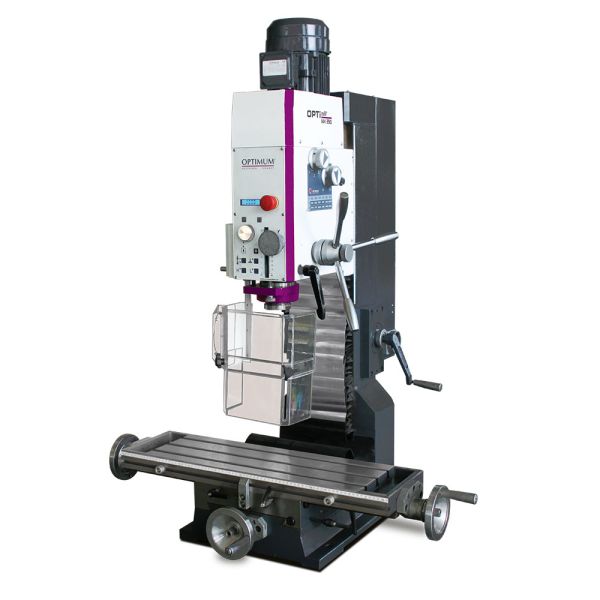

Milling Machine - MH35V & MH 35G
Universal precision drilling / milling machine with excellent concentricity thanks to tapered roller bearings, better than 0.015 mm measured in the spindle sleeve.
Top Key Features
- Control panel with user-friendly, dirt and waterresistant membrane keypad
- Easy to read digital display
- Easy to read quill display in the milling head
- Depth stop
- Threading mode...
Overview
Universal precision drilling / milling machine with excellent concentricity thanks to tapered roller bearings, better than 0.015 mm measured in the spindle sleeve. The Rotary push button on the control panel can adjust the drilling depth, optionally in mm or inches with zero point.
Featuring heavy, sturdy and solid columns made of premium cast material with ground and shaven dovetail guide for excellent stability and precision. A solid and generously dimensioned cross table with precision surface finish and T-slots.
Key Features
- Control panel with user-friendly, dirt and waterresistantmembrane keypad
- Easy to read digital display
- Easy to read quill display in the milling head
- Depth stop
- Threading mode
- Right / left rotation
- Rotary pushbutton in the control panel for setting the drilling depth optionally in mm or inch and zero point
- High concentricity due to tapered roller bearing, better than 0.015 mm measured in the quill
- Gear head tiltable ± 30 °
- Manual fine feed
- Adjustable wedges
- Z-axis with lamellar protective cover made of stainless steel
- Height-adjustable protective screen with microswitch, against flying chips and parts, for maximum protection of the user
- Massive and large-dimensioned XY stage, precisely surface-finished with T-slots
- Heavy, stable and solid column, made of high-quality gray cast iron, with ground and scraped dovetail guide, for high stability and precision
- Optional solid, heavy steel base provides stability
MH 35G:
- Two-stage quality industrial electric motor
Dimensions
| Length: | 850 mm |
|---|---|
| Height: | 1340 mm |
| Depth: | 1030 mm |
| Weight: | 316 kg |
| Table Size: | 750 x 210 mm (L x W) |
Technical Specifications
| Drilling Capacity / Performance: | 32 mm - Steel (S235 JR) 28 mm - Steel continuous (S235 JR) |
|---|---|
| Electrical: | MH 35V: 1.5 kW, 50Hz, 400V MH 35G: 1.1/1.5 kW, 50Hz, 400V |
| EMC Level: | C2 |
| Load Bearing Capacity: | 150 kg |
| Milling: | 80 mm - Max size milling head 28 mm - Max size shaft milling cutter |
| No. Speeds / Number of gears: | 6 - MH 35V 2 x 6 - MH 35G |
| Rotation: | 60⪚ |
| Speed: | 50 - 3260 min-1 |
| Speed Control: | electronic |
| Spindle Clearance: | 430 mm |
| Spindle Taper / Chuck / Seat: | BT30 |
| Standard: | DIN EN 55011 |
| Tailstock Diameter: | 68 mm (Quill diameter) |
| Tailstock Stroke: | 90 mm (Quill stroke) |
| T-groove Number: | 3 |
| T-groove Size: | 12 mm |
| T-groove Spacing: | 63 mm |
| Y-Axis: | 200 mm |
| Z-Axis: | 350 mm |
-
