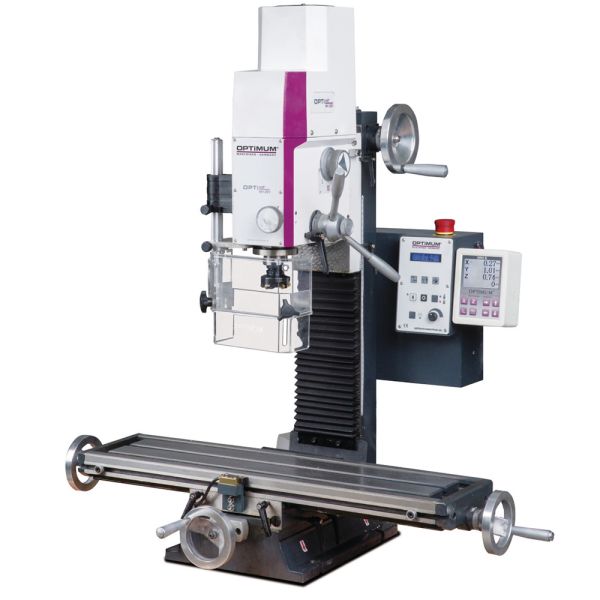

Drill/Mill MH22V & MH 22VD
Categories: Education , Workshop Equipment , Drills , Milling , Mill Drill , Workshop Equipment , Drills , Milling
Robust drilling/milling machine with electronic, continuously controllable drive, MH 22VD with digital position display DRO 5.
Top Key Features
- Precisely processed
- Clear control panel with user-friendly membrane keypad
- Safety electrics in 24 volt version
- Easy-to-read digital display for speed and drilling depth
- Emergency stop switch...
Overview
Robust drilling/milling machine with electronic, continuously controllable drive, MH 22VD with digital position display DRO 5.
MH20V - Base unit no position display
MH22VD - comes with position display DRO5
Key Features
- Precisely processed
- Clear control panel with user-friendly membrane keypad
- Safety electrics in 24 volt version
- Easy-to-read digital display for speed and drilling depth
- Emergency stop switch
- Motor with two-stage gear ratio for powerful transmission of engine power
- Powerful DC motor with permanent power monitoring
- Control electronics with integrated relay control
- Drilling milling head can be tilted by 60°, for milling and drilling work at any angle
- Feed spindles play-free adjustable by adjustable spindle nuts
- Right/Left Run
- Machine lamp
- High concentricity measured by tapered roller bearings of ? 0.015 mm in the pinole
- Stable swallowtail guide with adjustable wedge strips
- Massive precise surface-worked cross table with T-slots
- Adjustable wedge strips
- Adjustable end stops
- Drilling for light oiling of the trapezoidal spindle
- Two-row angular ball bearings in the axes, play-free adjustable
- Height-adjustable protective screen with microswitch, against flying chips and parts, for maximum protection of the user
- Fine feed
- X-, Y- and Z-axis with prepared groove for subsequent assembly of the magnetic tapes
- Bellows as guide protection
- Mechanical quick-release clamping system
Dimensions
| Length: | 945 mm |
|---|---|
| Width: | 950 mm |
| Height: | 650 mm |
| Weight: | MH 22V: 116 kg MH 22VD: 120 kg |
| Table Size: | 700 mm x 180 mm (L x W) |
Technical Specifications
| Drilling Capacity / Performance: | 20 mm - Steel (S235JR) 16 mm - Steel (S235JR) |
|---|---|
| Electrical: | 230 V / 50 Hz |
| EMC Level: | C2 |
| Load Bearing Capacity: | MH 22V: 40 kg MH 22VD: 50 kg |
| Milling: | 52 mm - Max size milling head 12 mm - Max size shaft milling cutter |
| Motor: | 0.95 kW |
| No. Speeds / Number of gears: | 2 |
| Rotation: | MH22V: +/- 60° MH22VD: +/- 90° |
| Speed Control: | Electronic |
| Spindle Clearance: | 370 mm - Vertical spindle (max) |
| Spindle Speed: | 90 - 3000 min-1 |
| Spindle Stroke: | MH22V: 40 mm (Quill stroke) MH22VD: 45 mm (Quill stroke) |
| Spindle Taper / Chuck / Seat: | BT20 |
| Standard: | DIN EN 55011 |
| Tailstock Diameter: | 60 mm - Quill diameter |
| T-groove Number: | 3 |
| T-groove Size: | 12 mm |
| T-groove Spacing: | 63 mm |
| Throat Depth: | 170 mm |
| Y-Axis: | 175 mm |
| Z-Axis: | 270 mm |
