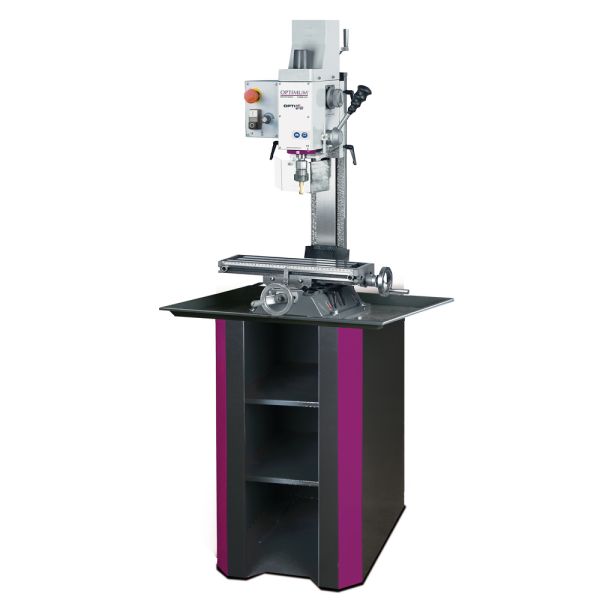

Drill/Mill Optimill BF16 Vario
Small drilling-milling machine with electronically infinitely variable drive. Ideal for model makers and smaller applications, where machined parts are required quickly
Top Key Features
- Versatile application possibilities
- Two-stage gear ratio
- Tool holder MK 2
- Safety electronics in 24 Volt version
- EMC filter class C1
- Height-adjustable and...
Overview
Small drilling-milling machine with electronically infinitely variable drive. Ideal for model makers and smaller applications, where machined parts are required quickly
Drilling and milling head can be tilted by ± 90 ° on both sides, thus drilling and milling in angular position can be done as required Upright laterally adjustable for further applications. Simple and clear control panel. User-friendly safety switch according to IP 54 with low-voltage release.
Key Features
- Versatile application possibilities
- Two-stage gear ratio
- Tool holder MK 2
- Safety electronics in 24 Volt version
- EMC filter class C1
- Height-adjustable and large-dimensioned protective screen with microswitch
- Accurate delivery through positionable scale rings on all handwheels
- Simple and clear operating unit with on-off switch, potentiometer and emergency stop impact switch
- Infinitely variable speed from 100 to 3,000 min-1
- High concentricity measured by tapered roller bearing better than 0.015 mm in quill
- Stable column with dovetail guide via wedge bars adjustable on all 3 axes
- Game in the feed spindle adjustable and adjustable
- Column laterally displaceable for extended application
- Massive cross table with T-slots and coolant channel as well as adjustable end stops
- Integrated longitudinal scale in the cross table
- All travel paths can be read on scales
- Clean milling pattern by individually clamped guides
- Inexpensive and stable in value
Dimensions
| Length: | 505 mm |
|---|---|
| Width: | 465 mm |
| Height: | 795 mm |
| Weight: | 62 kg |
| Table Size: | 400 x 120 mm (L x W) |
Technical Specifications
| Drilling Capacity / Performance: | 16 mm Steel (S235 JR) 12 mm Steel Continuous (S235 JR) |
|---|---|
| Electrical: | 230V, 1Ph, AC, 50Hz |
| EMC Level: | C1 |
| Milling: | 52 mm - Max size milling head 20 mm - Max size shaft milling cutter |
| Motor: | 0.5 kW |
| No. Speeds / Number of gears: | 2 |
| Rotation: | +/- 90° (Z - X plane) |
| Speed: | 100 - 3,000 min-1 |
| Speed Control: | electronically adjustable |
| Spindle Clearance: | 0mm - min clearance vertical spindle 275 mm - max clearance vertical spindle |
| Spindle Taper / Chuck / Seat: | MT 2 / MT10 |
| Standard: | DIN EN 55011 |
| Tailstock Stroke: | 50 mm (Quill stroke) |
| T-groove Number: | 3 |
| T-groove Size: | 10 mm |
| T-groove Spacing: | 35 mm |
| Throat Depth: | 170 mm |
| Tool: | M 10 - tightening bar |
| Y-Axis: | 160 mm |
| Z-Axis: | 210 mm |
Standard Accessories
- Conical mandrel MK 2 / B16
- Pullilng rod M 10
- Operating tool
