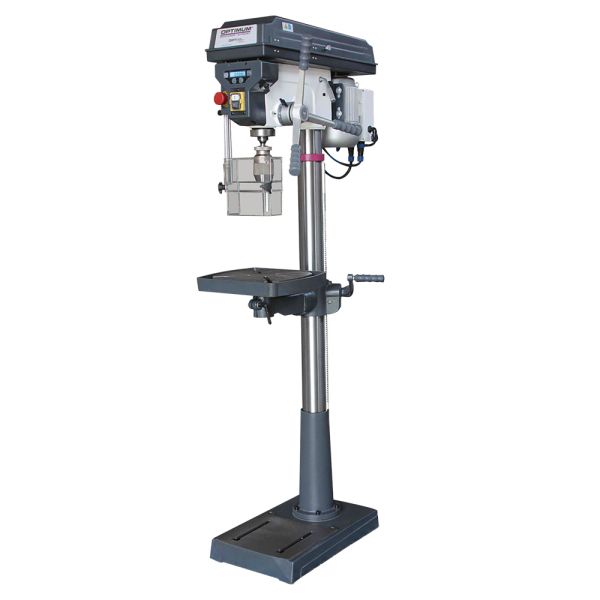

Heavy Duty Pillar Drill - D 26 Pro

Optimum OPTIdrill D 26Pro Heavy Duty Pillar Drill with V-belt drive

Ideal for D&T Workshop is the Optimum OPTIdrill D 26Pro Heavy Duty Pillar Drill with V-belt drive

Industrial engine
Easy to use safety switch according to IP 54
Digital drilling depth and speed indicator integrated in the housing
Separate emergency stop impact switch
Precision Spindle bore
Safety electronics in 24 V DC
Guaranteed concentricity measured less than 0.02mm in the drill quill
Drill spindle with precision ball bearings
High quality keyless chuck
Depth stop
Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel
V-belt cover with safety switch
One piece cast aluminum die-cast quill lever with softgrip handles
Large, height-adjustable protective screen with safety switch

Column Diameter:	80 mm
Drilling Capacity / Performance:	25 mm - Steel (S235 JR) 20mm - Continuous drilling steel (S235 JR)
Electrical:	400V, 50 Hz, 3 Ph ~
Motor:	0.75 kW - Drive motor output
No. Speeds / Number of gears:	12
Rotation:	45° Table Angle 360° Table Rotation
Speed:	200 - 2440 min ^-1
Spindle Stroke:	85 mm (Quill stroke)
Spindle Taper / Chuck / Seat:	MT 3
T-groove Number:	2
T-groove Size:	16 mm
T-groove Spacing:	170 mm
Throat Depth:	720 mm - max distance spindle
T-slot Size:	14 mm
