VAC-400 - Vacuum technology
Categories: Education , Training Equipment , Training Equipment , Technology Trainers , Pneumatics Trainers
Given the increasing demand by companies for qualification in vacuum techniques, VAC-400 is been designed, a didactic system specially devised for the development of skills related to this technology.
Top Key Features
- Includes 2 Modular panels
- Compliments the SMC PNEUTRAINER family
- Complete set of vacuum pads
- Comes with storage box
- Complete documentation set
- Includes all the necessary parts and components
Overview
Given the increasing demand by companies for qualification in vacuum techniques, VAC-400 is been designed, a didactic system specially devised for the development of skills related to this technology.

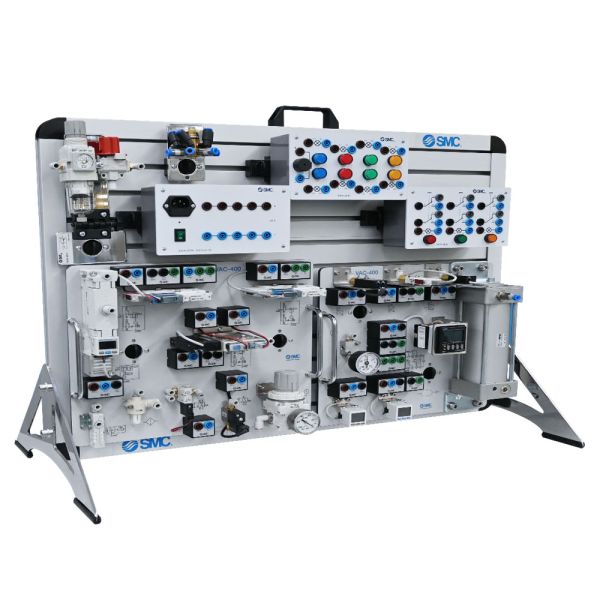

VAC-400 complements the PNEUTRAINER (Pneumatics and electro-pneumatics trainer) family, including the most widely used vacuum components in industry.
The modular features of the equipment allow the user to design various configurations and to work on both sides of the panel, thus increasing the number of users who can carry out practical exercises at the same time.
There are 2 options for VAC-400:
• VAC-400 for PNEUTRAINER users
• Complete VAC-400.
- Key Features:
- Includes 2 Modular panels
- Compliments the SMC PNEUTRAINER family
- Complete set of vacuum pads
- Comes with storage box
- Complete documentation set
- Includes all the necessary parts and components
Dimensions
| Dimensions: | A: 310 x 330 mm B: 310 x 370 mm |
|---|
Technical Specifications
Available Options:
| OPTIONS | DESCRIPTIONÂ | DIMENSIONS | Code |
| Panel A | Complete VAC-400 | 310 x 330 mm | SA14-2330 |
| PanelB | Basic pneumatics and electro-pneumatics training equipment (without case) | 310 x 370 mm | SA14-2331 |
Â
Content of each option:
| DESCRIPTION | A | B |
| Panel AÂ | Â | Â |
| Foot mounted reservoir with non-return fittings | 1 | 1 |
| Solid state compact vacuum pressure switches | 2 | 2 |
| Vacuum pressure switch with fault prediction function | 1 | 1 |
| 24 Vdc timer | 1 | 1 |
| Programmable digital vacuum pressure switches | 2 | 2 |
| Pressure gauge for vacuum | 1 | 1 |
| Panel B | A | B |
| Multiphase vacuum ejector | 1 | 1 |
| Vacuum unit with ejector, valves, vacuum pressure switchand filter | 1 | 1 |
| 4/2 way direct operated micro solenoid valve | 1 | 1 |
| 3/2 elastic runner solenoid valve | 1 | 1 |
| Vacuum module with ejector, valves, vacuum pressure switch and filter | 1 | 1 |
| Vacuum unit with ejector, timed valves, vacuum pressure switch and filter | 1 | 1 |
| Vacuum regulator with pressure gauge | 1 | 1 |
| Air suction filter for vacuum | 1 | 1 |
| Set of vacuum pads | A | B |
| Flat NBR vacuum pad with ridges | 1 | 1 |
| Silicone vacuum pad with gaiter | 1 | 1 |
| Urethane vacuum pad with gaiter | 1 | 1 |
| Fluorine rubber vacuum pad with gaiter | 1 | 1 |
| Flat NBR vacuum pad with joint | 1 | 1 |
| Flat NBR vacuum pad with telescope | 1 | 1 |
| Deep / concave NBR vacuum pad with telescope | 1 | 1 |
| Optional Elements | Â | Â |
| Air treatment unit | 1 | Â |
| Distributor block | 1 | 1 |
| Flexible 6 mm tube | 1 | Â |
| Set of 10 "T" fittings | 1 | Â |
| Set of 10 plastic fittings | 1 | Â |
| Set of connection cables | 1 | Â |
| Tube cutter tool | 1 | Â |
| Power supply source | 1 | Â |
| Block of indicators (pilots + buzzer) | 1 | Â |
| Block of electric inputs (3 push buttons) | 1 | Â |
| Aluminium panel with feet for vertical positioning and handgrip (Dimensions: 582 x x770 mm) | 1 | Â |
| Storage chest with compartments and trays (Dim: 825x425x450) | 1 | 1 |
Â
Skills Development - Ideal
Ideal for skill development in the following areas:
- Analysis in vacuum technology
- Vacuum technology design
- Technical document creation vacuum
- Installation and assembly of vacuum technologies
- Technical document understanding vacuum technology
- Operation of vacuum technology
Skills Development - Well Suited
Well suited to assisted skill development for:
- Troubleshoot vacuum technology
Available Options:
| OPTIONS | DESCRIPTIONÂ | DIMENSIONS | Code |
| Panel A | Complete VAC-400 | 310 x 330 mm | SA14-2330 |
| PanelB | Basic pneumatics and electro-pneumatics training equipment (without case) | 310 x 370 mm | SA14-2331 |
Â
