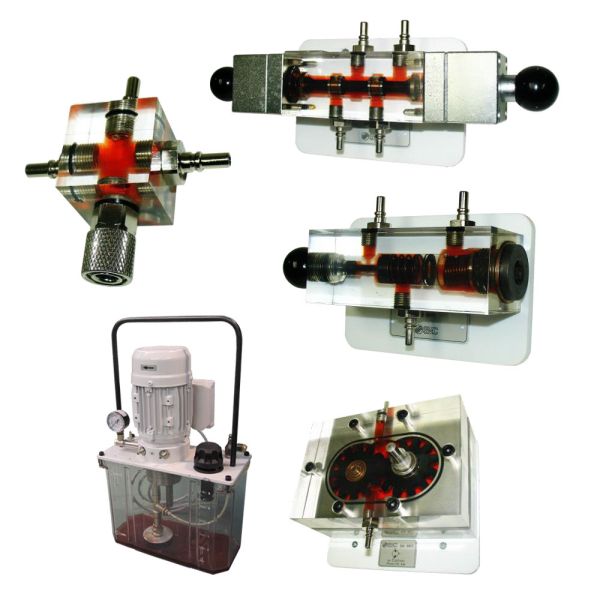

HYDROMODEL-200 - Transparent Hydraulics

TABLE / MOVING ASSEMBLY FRAME

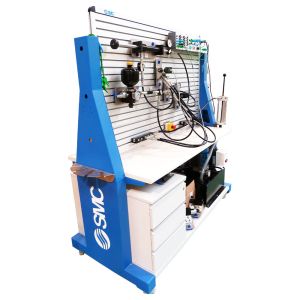

The moving frame within the HYDROTRAINER-200 system has a double sided assembly panel with tables sufficiently large for performing practical work at ease on either sides. It is assembled on four wheels, two of which have a brake, which enables moving and holding it in the classroom simply and comfortably.
It includes a glass for volumetric measurements on each side of the panel. The lower section has a support shelf for holding the hydraulic powerpack and storage drawers for components.

HERMETIC CONNECTIONS

The hoses, as well as the different devices, are connected to each other with a system of quick-fit self-sealing connectors. This system guarantees a maximum level of tightness whereby ZERO DRIPPING occurs even during connection/ disconnection operations.

FIXING TO THE PANEL

Each component includes a fixing system devised in such a way as to aid the quick and simple preparation of the practical exercises.
