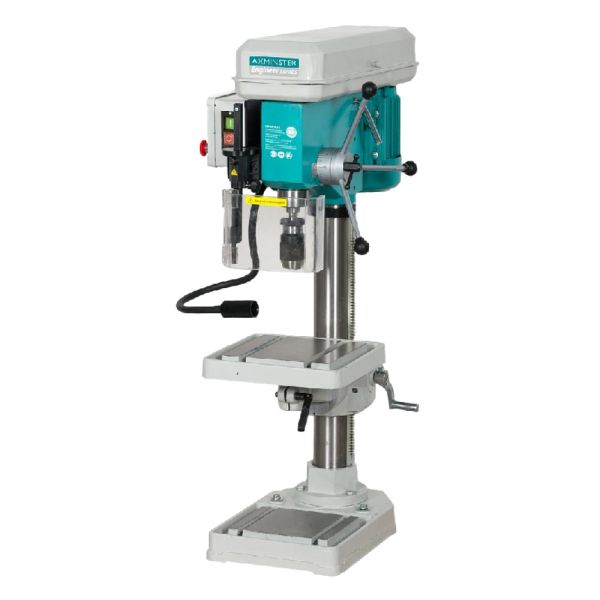

Bench Pillar Drill Axminster TB-16
The TB-16 bench pillar drill is truly designed for engineering and production use. Very heavily built and manufactured to exceptionally accurate tolerances.
Top Key Features
- • Heavily built, high precision bench pillar drill for engineers everywhere
• 375W high torque induction motor provides plenty of power
• 9 belt speeds with machined steel pulleys for vibration-free running...
Overview
The TB-16 bench pillar drill is truly designed for engineering and production use. Very heavily built and manufactured to exceptionally accurate tolerances,.This drill press will stand up to hard work day in day out.
The headstock has been machined to precisely match the quill housing, virtually eliminating any spindle run-out, even at full quill extension. The tolerance of the spindle runout (Quill movement) is + 0.01mm. Because the column is surface ground, the table rise and fall is super smooth in operation, making table height adjustment a light task.
The high torque 0.375kW motor drives the spindle via a 9-speed belt drive, ( 190, 340, 400, 550, 650, 680, 1550, 1770 and 2800 rpm), with machined steel pulleys eliminating vibration.
Key Features
- Heavily built, high precision bench pillar drill for engineers everywhere
- 375W high torque induction motor provides plenty of power
- 9 belt speeds with machined steel pulleys for vibration-free running
- Surface ground table, base and column aids accurate use
- Electrically interlocked chuck guard and belt cover, plus locking “E” stop
- Precision machined headstock and spindle quill casting gives accuracy
Dimensions
| Length: | 450 mm |
|---|---|
| Width: | 310 mm |
| Height: | 1080 mm |
| Weight: | 105 kg |
| Table Size: | 300 x 300 mm |
| Base Size: | 310 x 450 mm |
Technical Specifications
| Chuck Capacity: | 1 mm to 16 mm |
|---|---|
| Chuck Travel: | 80 mm |
| Chuck Type: | keyless |
| Column Diameter: | 80 mm |
| Drilling Capacity / Performance: | 16 mm (Max drilling mild steel) |
| Electrical: | 375 W, 230V |
| Plug Fitted: | UK 3pin plug |
| Rating: | Engineer |
| Rotation: | -45° to + 45° Table tilt |
| Speed: | 190 - 2,600 rpm (9) |
| Spindle Taper / Chuck / Seat: | MT 2 |
| T-groove Size: | 16 mm |
| Throat Depth: | 180 mm |
Optional Extras
Safety is provided for by a solidly made chuck guard, electrically interlocked,
as is the belt cover. A large emergency stop button, which locks closed
automatically, completes the picture.
Lighting is provided by an LED lamp with a flexible stem for ease of placement.
This high quality bench drill press is designed to meet the demands of
engineers, educational establishments and light production workshops.
-
