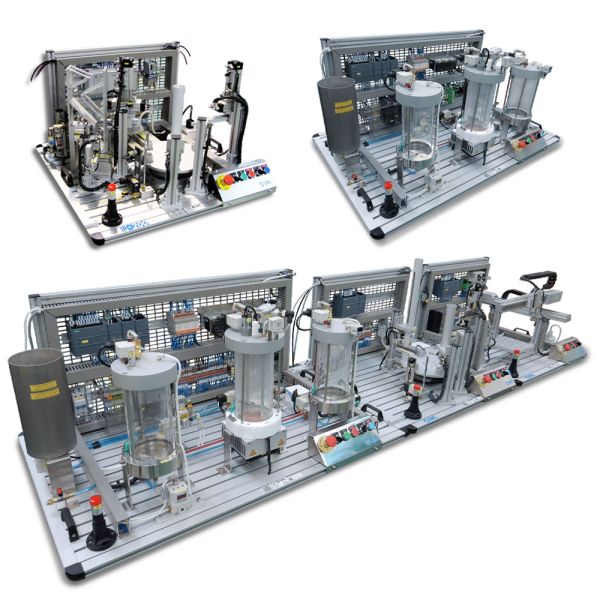

IPC-200 - Industrial process control
Fully modular and flexible equipment, comprised of three modules which can work individually or as a complete process line. Various configurations can be created to adapt the IPC-200 equipment to our users different requirements and budgets.
Top Key Features
- Fully modular and flexible equipment
- Complete industrial process control training system
- Closed loop control of pressure, flow temp & level
- 3 Modules as individual or complete process line
- Emulates a liquid production & bottling plant
- Designed & built with industry relevant components
Overview
Fully modular and flexible equipment, comprised of three modules which can work individually or as a complete process line. Various configurations can be created to adapt the IPC-200 equipment to our users different requirements and budgets.
IPC-200 emulates a liquid production and bottling plant and includes the technologies used in continuous process industry, such as pneumatics, electric motors, sensors, continuous processes, programmable controllers, industrial communications, etc.
The training system has been developed by an expert team of engineers and pedagogues to enhance professional skills.
IPC-200 is built entirely from industrial materials so that student works with the same elements found in the working environment. IPC-200 is composed of three stations each of which carries
out one part of the process.
Key Features
- Fully modular and flexible equipment
- Complete industrial process control training system
- Closed loop control of pressure, flow temp & level
- 3 Modules as individual or complete process line
- Emulates a liquid production & bottling plant
- Designed & built with industry relevant components
Dimensions
Technical Specifications
Relevant Technologies
- Electrical panel
- Pneumatics
- Vacuum
- Electric motors
- Sensors
- Continuous processes
- Programmable controllers
- Manipulators
- Industrial communication
- Motion control
- SCADA / HMI
- Automated systems
Skills Development - Ideal
IPC-201
The first station simulates the production phase by processing liquid. There are two versions: the first concentrates on digital control elements and the
other is directed towards the regulation and control of analogue variables. Temperature, Level, Pressure, Flow rate
IPC-201C - Production station for the regulation and control of analogue variables
This version of the production station incorporates a series of elements regulate and control TEMPERATURE, LEVEL, PRESSURE and FLOW RATE. This equipment is specially designed for the development of professional skills required in continuous process industry (in sectors such as food, pharmaceutical, chemical, petroleum, etc.).
The troubleshooting simulation system TROUB-200 is included, which generates up to 16 different breakdowns to be diagnosed by the user.
IPC-202: Bottling station
The second station reproduces the liquid bottling phase. There are also two versions depending on the type of container feeder.
A - Simple feeder
B - Complete feeder
IPC-203: Palletizing stationÂ
The third station stores the containers in a warehouse with 25 positions.
Common element in all stations: Power supply, air treatment unit, indication light, anodised aluminium structure, control keypad, solenoid valve block, labels for cables, electric connection terminals, thermal Trip, unit for communication bus, control PLC* and User manual and practice manual.
*Options: PLC Omron, Allen Bradley, Mitsubishi, Siemens, Schneider or without PLC.
Optional Extras
- Support legs
- Programming tools
- SCADA: Supervisory control and data acquisition
- IPC-200 application for autoSIM-200
IPC-200
IPC-200 Training equipment is designed for the development of professional skills related to the control of industrial processes. It is fully modular and flexible equipment, comprised of the three modules which can work individually or as a whole.
