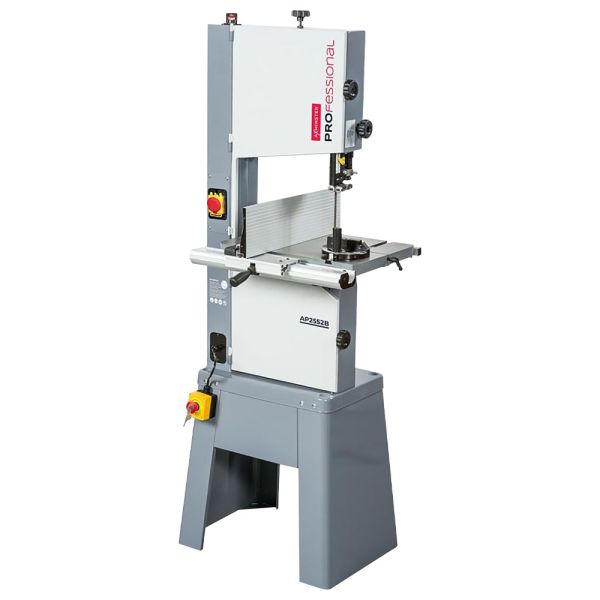

Professional Bandsaw - AP2552B
The AP2552B bandsaw, with its high specification is a very popular sized machine for the professional or dedicated amateur.
Top Key Features
- Max depth of cut 200mm, max width of cut 340mm
- Extra large cast iron table, precision ground surface
- Smooth running, vibration-free balanced cast alloy blade wheels
- 3 Year guarantee
Overview
The AP2552B bandsaw, with its high specification is a very popular sized machine for the professional or dedicated amateur. The combination of a rigidly built steel body, large and finely ground cast iron table, deep section rip fence and micro adjustable ball bearing blade guides produces the high level of performance demanded by full time craftspeople.
The rip fence runs on a calibrated aluminium extrusion and locks firmly in place with a lever, giving a solid and accurate location. The adjustable precision mitre fence is T-slotted into the table for added safety and accuracy. The table tilt quadrants are set very widely apart to give the maximum support to the table and to make the tilt action very smooth. Cutting depth is controlled by a well engineered rack and pinion system, with a lock to set the guides into position.
At the rear of the machine are the blade tracking control, the blade tension indicator and a quick action blade tension lever, useful for both blade changing and for releasing the tension on the blade when the machine is not in use. Beautifully made and sure to please. Supplied with floor stand, rip fence, mitre fence and a 6tpi bandsaw blad
Key Features
- Max depth of cut 200mm, max width of cut 340mm
- Extra large cast iron table, precision ground surface
- Smooth running, vibration-free balanced cast alloy blade wheels
- 3 Year guarantee
Dimensions
| Length: | 690 mm |
|---|---|
| Width: | 720 mm |
| Height: | 1770 mm |
| Weight: | 84 kg |
| Table Size: | 500 mm x 356 mm, H: 490 mm / H on Stand: 1,060 mm |
| Table Tilt: | 5° - 0° - 45° |
Technical Specifications
| Bandsaw: | Bandsaw Blade Length: 2,552 mm (100.1/2”) Bandsaw Wheel Diameter: 350 mm |
|---|---|
| Blade: | Blade Speed: 800 m/min Blade Width Min\Max: 3 mm to 19 mm |
| Cut Height: | 200 mm (max) |
| Cut Width: | Max Width of Cut: 340 mm Max Width of Cut with Fence: 300 mm |
| Dust Extraction Outlet: | 100 mm |
| Electrical: | 230 V |
| Plug Fitted: | UK 3 pin plug |
| Noise: | Sound Power Level LwA: 100.1 dB(A) [1.5 dB] [Uncertainty K] Sound Pressure Level LpA: 83 dB(A) [1.5 dB] [Uncertainty K] |
| Rating: | Trade/Professional |
| T-Slot Size: | 19 mm x 9.5 mm (3/4” x 3/8”) |
