MS10 Mardon
Categories: Education , Workshop Equipment , Dust & Fume Extraction , Dust Extraction , Workshop Equipment , Dust & Fume Extraction

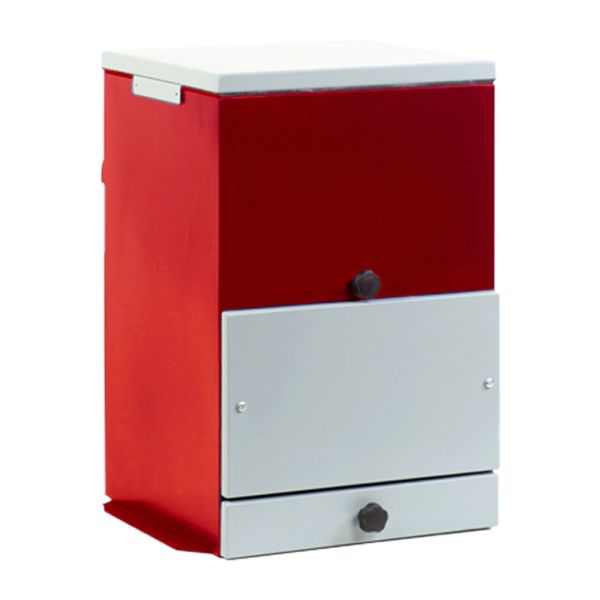

The Mardon MS10 is an industrial quality, self-contained dust extraction unit ideal for light dust extraction of units such as surface grinders
Top Key Features
- Ideal for use in Schools and Workshops
- Can be fitted with more than one inlet hose e.g. top and bottom Bandsaw extraction
- Easy to install and use
- Manual Shaker
Overview
The Mardon MS10 is an industrial quality, self-contained dust extraction unit ideal for light dust extraction of units such as surface grinders. Designed to meet the requirements of the Health and Safety at Work Act, the 2002 (amended 2004) COSHH Regulations and HSG258 Guidelines.
The MS10 is an economical unit that is quick to install and easy to operate while requiring minimum workshop floor space with low noise level making this efficient unit perfect for Schools and workshops.
Key Features
- Ideal for use in Schools and Workshops
- Can be fitted with more than one inlet hose e.g. top and bottom Bandsaw extraction
- Easy to install and use
- Manual Shaker
- Optional ATEX panel available
- Suitable for use with light machinery e.g. surface grinders
- Bin can hold up to 10L of dust
Dimensions
| Width: | 550 mm |
|---|---|
| Height: | 780 mm |
| Depth: | 675mm |
| Weight: | 54 kg |
| Inlet: | 1 OR 2 x 80 mm Diameter OR 1 x 100mm Diameter |
Technical Specifications
| Filter Area: | 1.00 m2 |
|---|---|
| Filter Cleaning: | Manual Agitation |
| Filter Media: | Terylene Needle felt |
| Inlet: | 1 OR 2 x 80 mm Diameter OR 1 x 100mm Diameter |
| MCB: | 10 A Type C |
| Motor: | 0.55 KW - 2 pole – 415/3/50 or 240/1/50 |
| Optional: | ATEX Explosion Relief Starter |
| Waste Collection: | Low Mounted Dust Tray |
