ICT-200 - Industrial control trainer

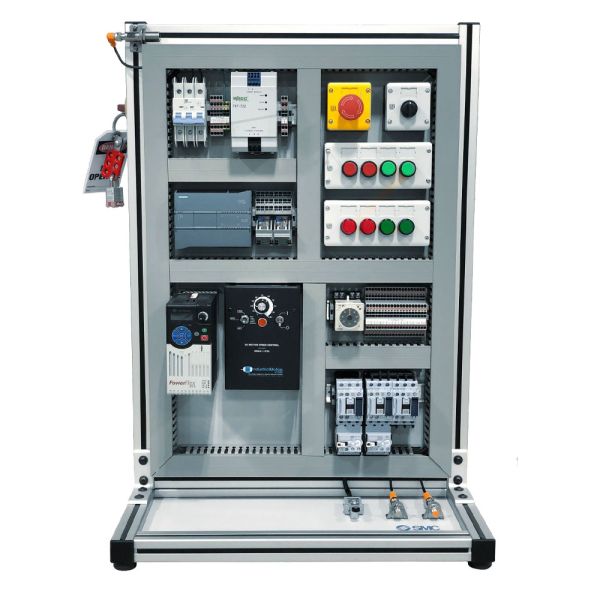

The Industrial Control Trainer provides students with a flexible system allowing for hands-on experiments in wiring and troubleshooting of control circuits. The system gives access to devices allowing students to connect all circuit components directly or via terminal blocks.
Ideal for developing skills including:
- Available in mobile suitcase or tabletop format
- Quick change capability from one brand controller to another within one system
- Connection for use with external devices & applications
- Fault insertion capability for troubleshooting
Overview
The Industrial Control Trainer provides students with a flexible system allowing for hands-on experiments in wiring and troubleshooting of control circuits. The system gives access to devices allowing students to connect all circuit components directly or via terminal blocks
Key Features:
- Available in mobile suitcase or tabletop format
- Quick change capability from one brand controller to another within one system
- Connection for use with external devices & applications
- Fault insertion capability for troubleshooting
- Can be expanded to include other applications (traffic signals, sorting conveyor, electromechanical drive, PID temperature & pressure)
- Covers 15 base topics in detail
- Designed & built with industry relevant components
Dimensions
| Dimensions: | 530 x 610 x 330 mm |
|---|---|
| Weight (Gross): | 22.7 kg |
Technical Specifications
Topics Covered
- Motor Control Devices
- Pilot devices
- Pushbuttons (Wiring, emenrgency)
- Selector switches
- Automatic Control Devices
- Control Relays
- Timer relays
- Sensors
- Contactors-Motor Controls
- Troubleshooting circuits
1. Controller Options
- AB Micro800
- AB MicroLogix 1100
- AB CompactLogix1
- Siemens S7-1200
- Siemens S7-1500
- Siemens S7-3001
- Omron CP1
- Mitsubishi FX-3
- Automation direct do-more
- No PLC
2. HMI Options
- AB 7” Micro PanelView
- AB PanelView Plus 7”1
- Siemens KTP-700 7”
- Omron NB 7”
- Mitsubishi GS 7”
- Automation Direct C-more
- No HMI2
3. Software Options
- PLC software for AB option (To be included for controller option 03)
- PLC Software for Siemens Option (for controller option 06)
- HMI Software for AB Option (for HMI option 2)
- No Software
4. Supply Voltage
- 120 Vac Single Phase3
- 208 Vac 3-Phase4
- 230 Vac Single Phase3
- 400 Vac Three Phase4
5. Fault Insertion
- Fault insertion*
- Faulted parts
- No faults
6. Form Factor
- Table top frame
- Suitcase
- Mobile cart with motor mount & wire rack
7. Connection Options
- User connections to TB**
- Devices pre-wired to TB**
- Banana jack connections
8. Double Sided Option
- Single sided
- Double sided5
9. Add-Ons
- Basic sensors package
- Advanced sensor package
- 1-Phase motor
- 3-Phase motor6
- AC variable speed drive with 3-phase motor7
- DC variable speed drive with DC motor7
- Stack/signal light
- NEMA enclosure8
- None
ICT-200
When students need a fundamental understanding of industrial controls related to components and circuits used to control and operate automated systems, our ICT-200 provides the solid foundation needed for next-level courses.
-
